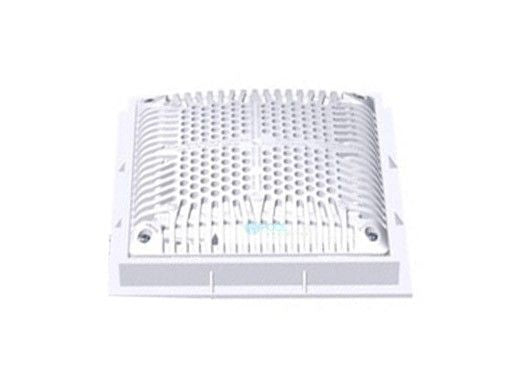

Hayward WGX1033BLV2 18-Inch White Low Velocity Square Drain Cover with Inner Frame

Product Description

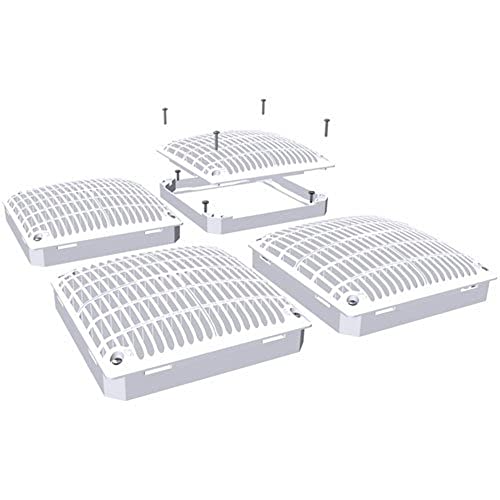

Hayward's WGX1033BLV2 is an eighteen-inch square low velocity drain cover designed for pools. This cover includes an inner frame and meets required flow velocity limits of one point five feet per second. It includes four nine-inch by nine-inch covers, resulting in an overall size of eighteen inches by eighteen inches.

• Designed for applications with low flow requirements
• Includes four covers for comprehensive installation
• Retrofits to existing Hayward frames

Product Highlights

The Hayward WGX1033BLV2 drain cover is ideal for both residential and commercial concrete pools. It features compliance with multiple safety standards, ensuring safe usage.

Product Information

Standard Information

• Brand: Hayward
• MPN: WGX1033BLV2

Technical Specifications

• Size: 18 inches by 18 inches
• Flow Rate: 520 GPM
• Cover Open Area: 183.20 square inches
• Velocity Limit: 1.5 feet per second
• Installation Type: Concrete and within existing Hayward frames
• Certification: ASME A112.19b-2009, ANSI/APSP-16, CPSC
• Warranty: One-year limited warranty
