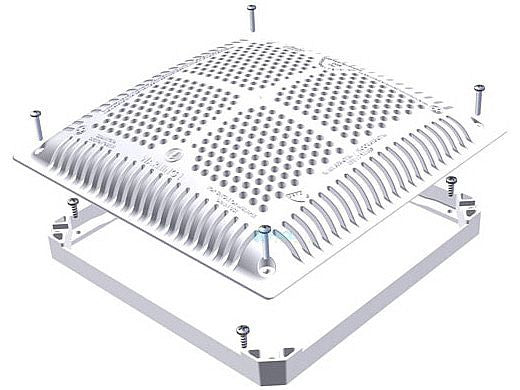

Hayward WGX1032BHF2 12 x 12 High Flow Grate with Inner Frame

Product Description

The Hayward WGX1032BHF2 12 x 12 High Flow Grate with Inner Frame is a reliable replacement for your pool. It is designed by Hayward under the MPN WGX1032BHF2 and ensures both safety and efficiency in water flow management.

• Certified to ASME A112.19b-2009, ANSI/APSP-16, and CPSC requirements
• Retrofits to all existing Hayward frames
• 7-year life span

Product Highlights

This high-flow grate is suitable for in-ground concrete pools. It assists in preventing entrapment and is a post-recall model of the SP1032 drain. Its high flow capacity ensures optimal water circulation in residential and commercial pools.

Product Information

Standard Information

• Brand: Hayward
• MPN: WGX1032BHF2

Technical Specifications

• Size: 12 x 12 inches
• Shape: Square
• Flow Rate (Floor): 515 gallons per minute
• Flow Rate (Wall): 308 gallons per minute
• Installation Type: In-ground pools
• Material: High Flow Grate
• Conformity: Certified to ASME A112.19b-2009, ANSI/APSP-16, and CPSC requirements
