Hayward TC1300SE 3-Inch PVC TC Series True Union Check Valve with EPDM Seals and Socket End Connection

Product Description

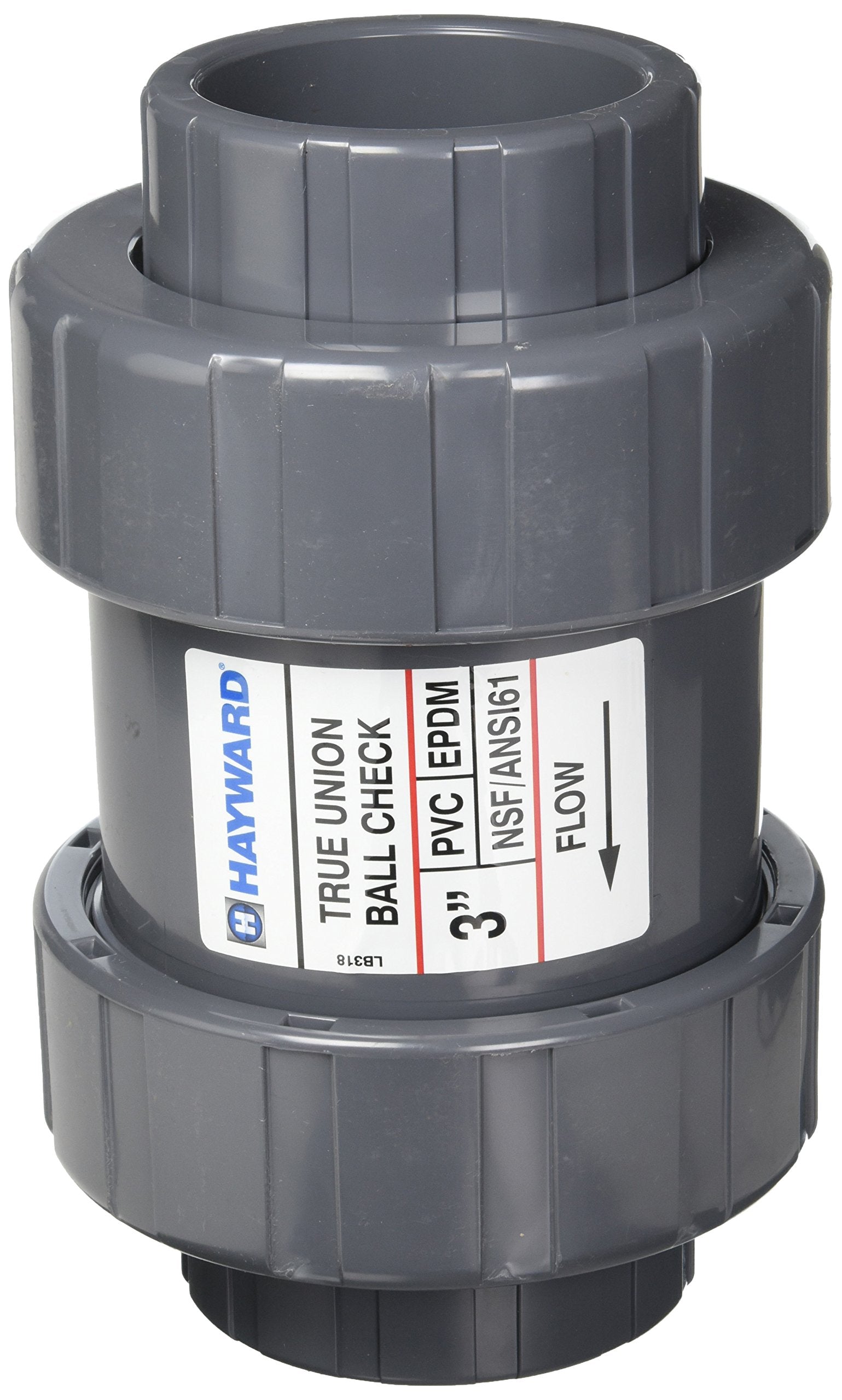

Hayward TC1300SE is a three-inch PVC true union check valve. This valve features EPDM seals and socket end connections. The design prevents backflow effectively. When flow enters the valve, a ball moves with the pressure to allow passage. If the flow ceases, back pressure moves the ball back, sealing the valve to stop flow. This true union design allows for straightforward removal from the system without disrupting the piping connections.

• Three-inch socket end connection
• Pressure rating of 150 PSI
• Meets ASTM and NSF standards

Product Highlights

Reliable and efficient for preventing backflow in plumbing systems.

Product Information

Standard Information

• Brand: Hayward
• MPN: TC1300SE

Technical Specifications

• Body Material: PVC
• Ball Material: PVC
• Seal Material: EPDM
• Nominal Size: 3 inches
• Pressure Rating: 150 PSI
• Temperature Rating: 140 degrees F
• Flow Rate: 150 GPM
• Inlet to Outlet Length: 10.56 inches
• End Style: Socket
• Port Type: Full
