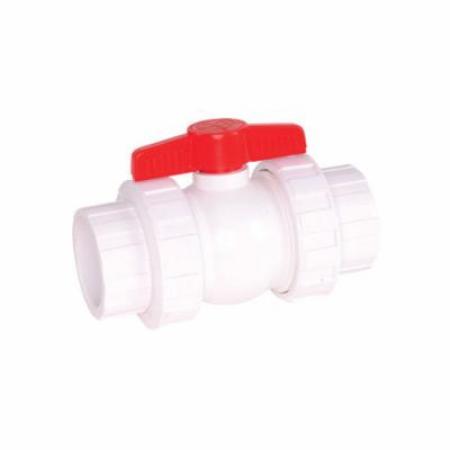

Hayward QTA1020CSEW Series QTA Compact True Union Ball Valve, 2 inches

Product Description

The Hayward QTA1020CSEW Series QTA Compact True Union Ball Valve is designed for industrial and commercial applications. This valve features a unibody design with EPDM O-Rings and Santoprene (TPV) seats.

• Unibody design with true union end connection
• Includes socket and threaded end connections
• Made with industrial grade white PVC

Product Highlights

Compact and lightweight, the Hayward QTA1020CSEW is perfect for OEM applications. It is rated at a full 150 psi non-shock at 70°F and allows easy 1/4-turn operation with no internal parts to replace.

Product Information

Standard Information

• Brand: Hayward
• MPN: QTA1020CSEW
• Size: 2 inches
• Color: White

Technical Specifications

• Body Material: PVC
• End Style: Socket/Thread
• Inlet to Outlet Length: 8 inches
• Nominal Size: 2 inches
• Port Type: Full
• Pressure Rating: 150 psi
• Series: QTA
• Softgoods Material: EPDM
• Temperature Rating: 70 deg F
• Top to Inlet Center: 3.32 inches
• Trim Material: Santoprene TPV Seat
