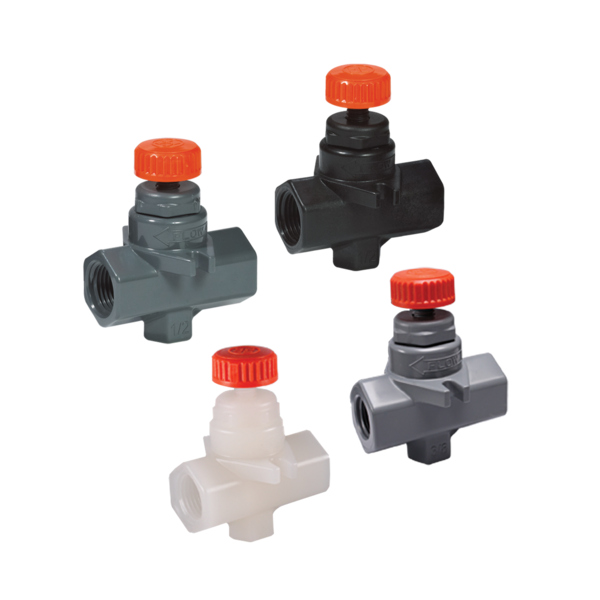

HAYWARD NVA1025T 1/4 PVC Needle Valves w/FPM O-Ring; PTFE Seat; Threaded End Connections

Product Description

The HAYWARD NVA1025T is a 1/4 inch PVC needle valve that features a thumb wheel actuator and a pressure rating of 150 psi at seventy degrees Fahrenheit. This valve is designed with a PTFE trim and FPM O-ring to provide reliable sealing and flow control. The valve's compact design has an inlet to outlet length of two and a half inches, making it suitable for various applications.

• Precision control of flow rates, adjustable without tools
• Designed for panel mounting and easy installation
• Ideal for metering in sensitive applications

Product Highlights

This needle valve is perfect for water and wastewater treatment, chemical processing, and laboratory instrumentation.

Product Information

Standard Information

• Manufacturer: HAYWARD INDUSTRIAL PRODUCTS
• Model Series: NVA

Technical Specifications

• Actuator Type: Thumb Wheel
• Body Material: PVC
• Trim Material: PTFE
• Nominal Size: 1/4 inch
• End Style: FNPT
• Pressure Rating: 150 psi
• Temperature Rating: 70 degrees Fahrenheit
• Inlet to Outlet Length: Two and a half inches
• Softgoods Material: FPM O-Ring
