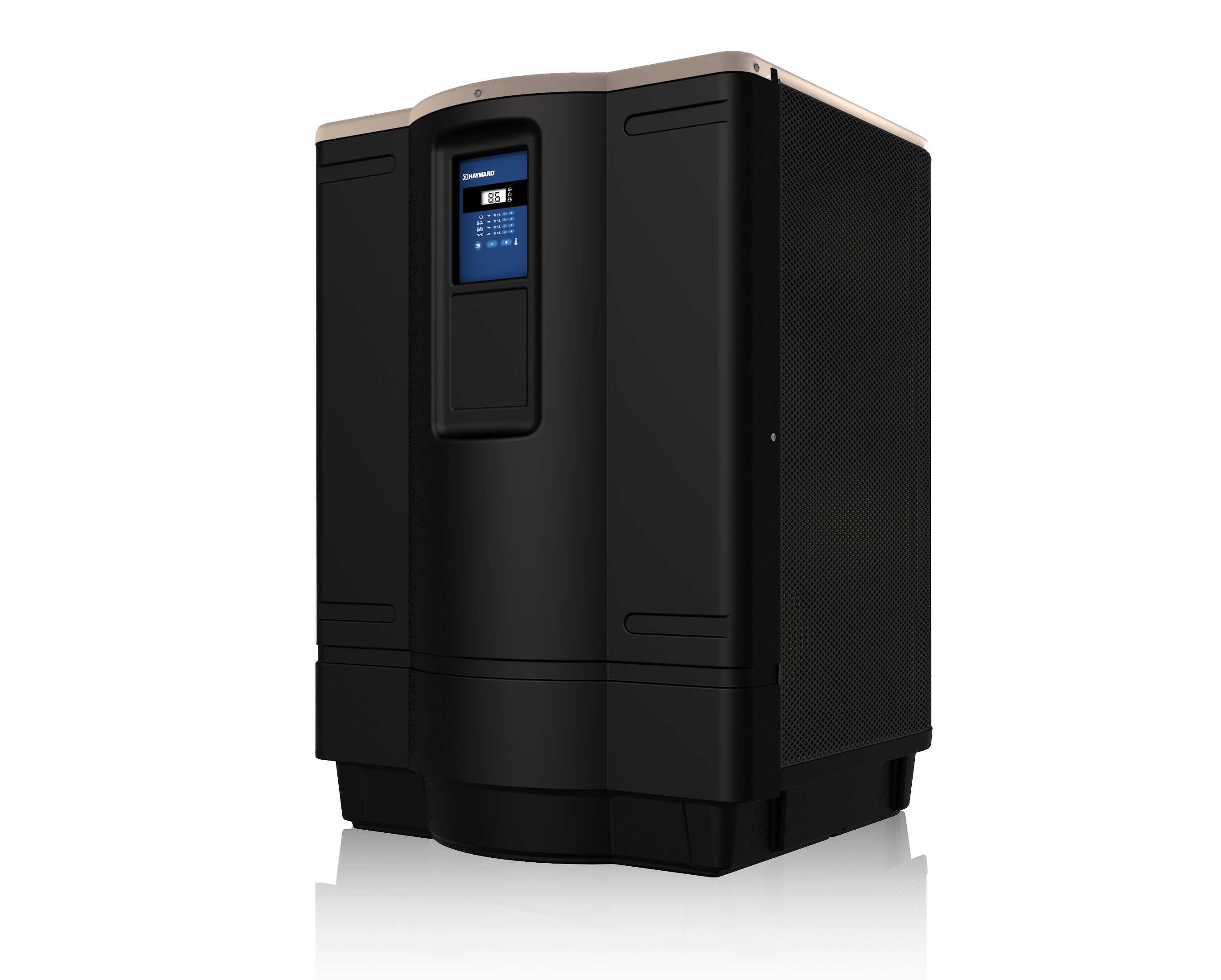

Hayward HP21004TC HeatPro Heat Pump 90,000 BTU Low Ambient Heat Only

Product Description

The HAYWARD HP21004TC HeatPro Heat Pump is an energy-efficient heating solution designed for above ground and in ground pools. Operating at 230V and 60 Hz, this single-speed heat pump provides 90,000 BTU/hr heating capacity with low ambient operation down to 40 °F. Its compact design allows for easy installation and service, ensuring consistent water temperature for pool heating.

• Titanium Heat Exchanger offers excellent salt water and chemical corrosion resistance.
• Exclusive 'Ultra Gold' evaporator coil provides corrosion resistance, ideal for coastal areas.
• AHRI certified performance ensures independent lab-certified efficiency and value.

Product Highlights

Energy-efficient heat pump with corrosion-resistant components for reliable pool heating.

Product Information

Standard Information

• Brand: HAYWARD
• Manufacturer Part Number: HP21004TC

Technical Specifications

• Active Defrost: No
• Boost Mode: No
• Brand: Hayward
• Compressor Speed: Single-speed
• Cooling Capability: No
• Fan Motor Type: PSC
• Heating Capacity: 90,000 BTU/hr
• Frequency: 60 Hz
• Low Ambient Operation: Yes
• Maximum Breaker Size: 60 Amps
• Minimum Operating Temperature: 40 °F
• Phase: 1
• Pool Type: Above Ground, In Ground
• Refrigerant Present: Yes
• Series: HeatPro
• Silent Mode: No
• Input Voltage: 220-240V
• Maximum Water Flow Rate: 75 GPM
• Minimum Water Flow Rate: 30 GPM
