Hayward hlxplpcbmain Omnipl Control Board Pcba

Product Description

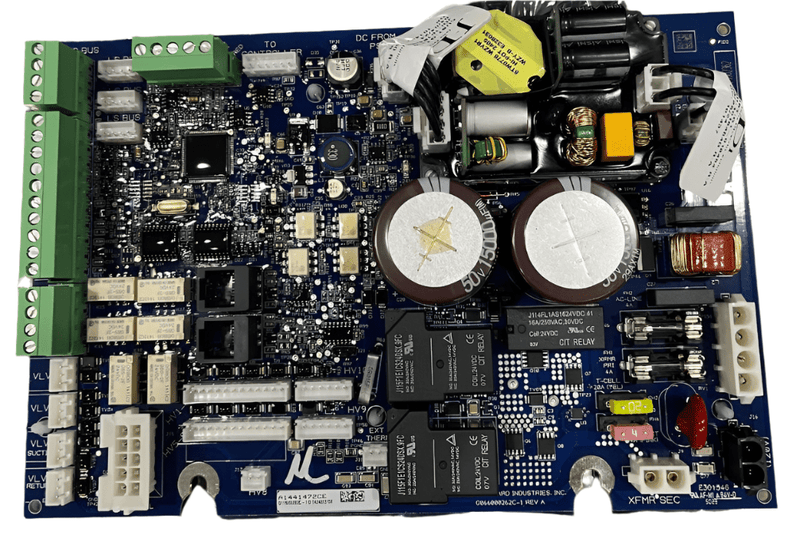

The HAYWARD hlxplpcbmain is a replacement printed circuit board assembly (PCBA) designed for the Hayward OmniPL pool and spa automation control system. This board serves as the main logic and control interface within the OmniPL enclosure, managing communication between connected equipment such as pumps, heaters, sanitizers, and lighting. Installation is performed by licensed pool and spa technicians or qualified automation service professionals. At 2 pounds and compact in form, the board is a direct OEM-style replacement intended to restore full system functionality when the original board has failed or been damaged.

This PCBA is specifically designated for Hayward OmniPL Control Systems manufactured in 2023 or later. It is not a universal board and is not interchangeable with earlier OmniPL hardware revisions or other Hayward automation platforms. Technicians servicing residential or light commercial pool systems running the OmniPL platform should confirm the system manufacture date before ordering. This replacement board restores the core automation functions of the OmniPL controller, including equipment scheduling, sensor monitoring, and remote connectivity features native to that platform.

Key Features

• Direct replacement PCBA for Hayward OmniPL Control Systems (2023 or later)
• Restores main control and logic functions in the OmniPL automation enclosure
• OEM-specification board ensuring compatibility with existing wiring and enclosure hardware
• Lightweight at 2 pounds for straightforward handler and installation
• UPC: 0610377437424 for verified product identification

Compatibility

Designed as a replacement for Hayward OmniPL Control Systems manufactured in 2023 or later. This board is not compatible with OmniPL systems produced before 2023 or with other Hayward automation product lines.

Installation Notes

Installation should be performed by a licensed pool and spa technician or a qualified automation controls professional. Always disconnect and lock out power to the automation system at the main breaker before removing or installing the PCBA. Handle the board by its edges to avoid electrostatic discharge damage to sensitive components. Refer to the Hayward OmniPL installation documentation for connector placement and mounting torque guidance specific to the enclosure.

Technical Specifications

• Weight: 2 pounds
• Shipping Dimensions: 9 x 6 x 2 inches
• UPC: 0610377437424

Standard Information

• Brand: HAYWARD
• Manufacturer Part Number: hlxplpcbmain
