Hayward HCF7030C Dual-Quad-Cluster Cartridge Filter 700 sq. ft. (8 Elements) HAYHCF7030C

Product Description

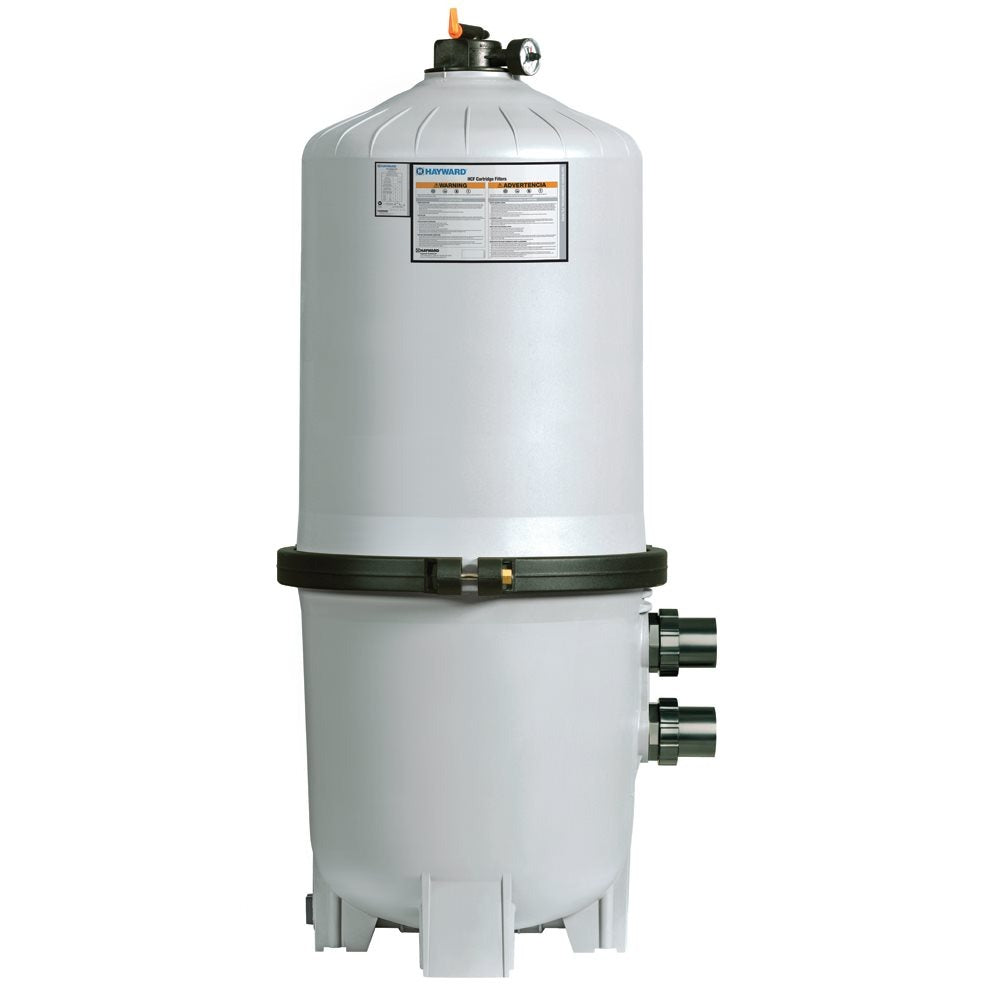

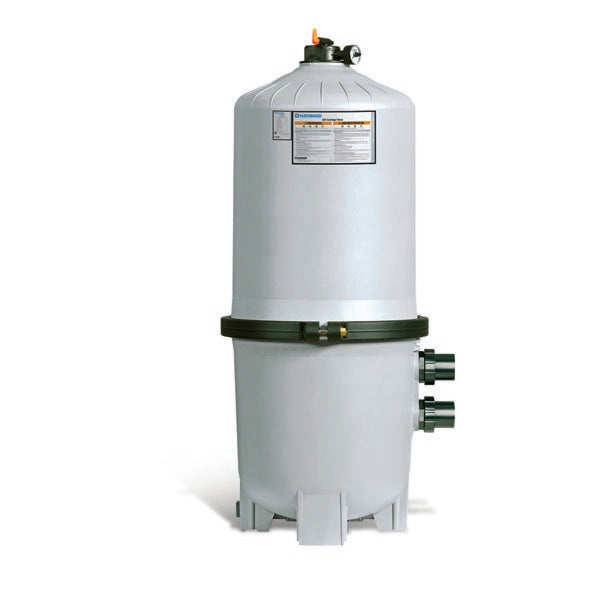

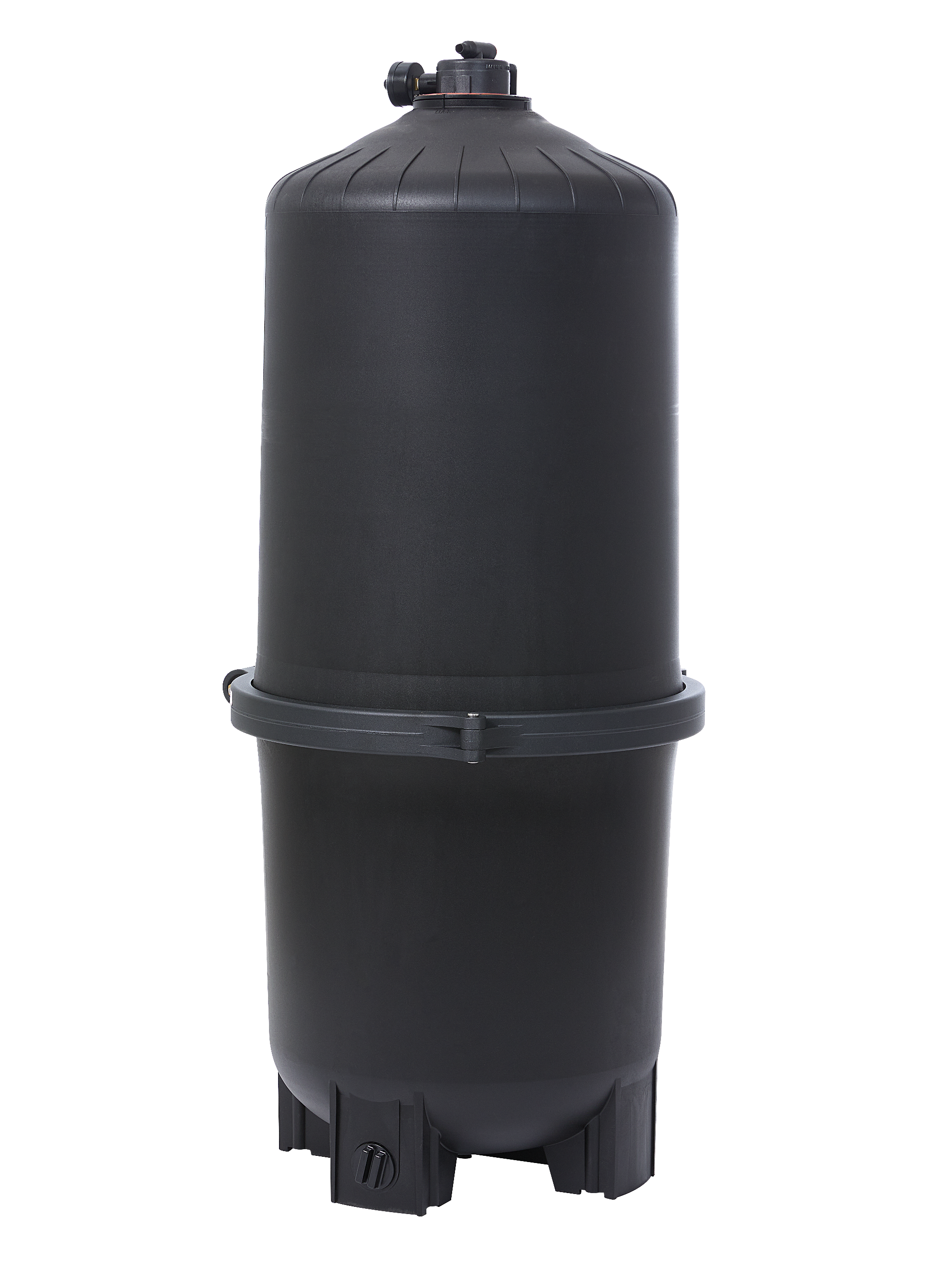

The Hayward HCF7030C is a commercial Dual-Quad-Cluster cartridge filter providing 700 sq. ft. of filtration area using eight polyester cartridge elements. The unit features a glass-reinforced co-polymer tank, 2" full-flow internal piping, a PVC union coupling accepting 2" or 2-1/2" connections, and a full-size 1-1/2" integral drain. It is designed for commercial pool applications including new construction, renovation, and aftermarket use and is NSF certified.

• 700 sq. ft. effective filtration area with eight cartridge elements for extended dirt-holding capacity
• Supports design flow rates up to 150 GPM with 2" full-flow internal piping and 2" or 2-1/2" union coupling
• Glass reinforced co-polymer tank, rapid-release manual air relief valve, tamper-proof clamp, and 1-1/2" integral drain

Product Highlights

Commercial cartridge filter; 700 sq. ft. area; 8 elements; 150 GPM flow rating; GFR tank; 1-1/2" drain; NSF certified

Product Information

Standard Information

• Brand: HAYWARD
• Manufacturer Part Number: HCF7030C
