HAYWARD HCF236C HAYWARD HCF Series 36-Inch Sand Filter 140 GPM

Product Description

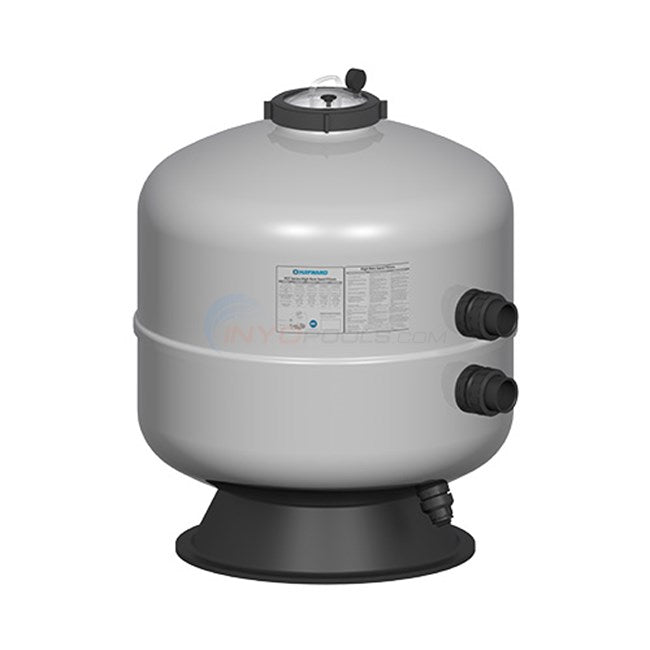

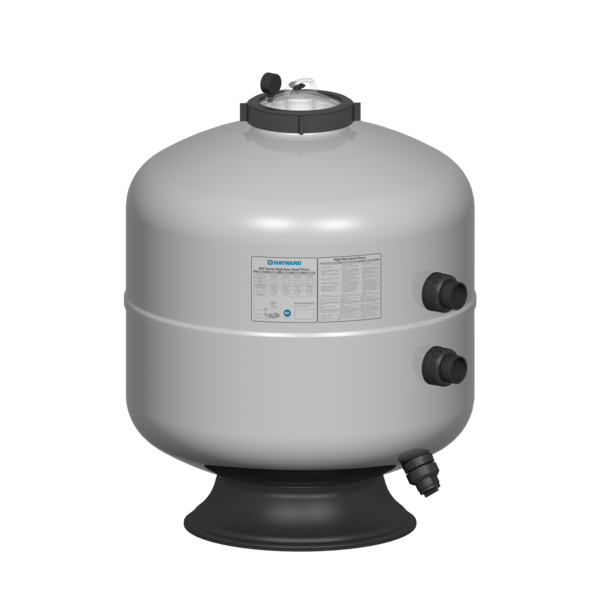

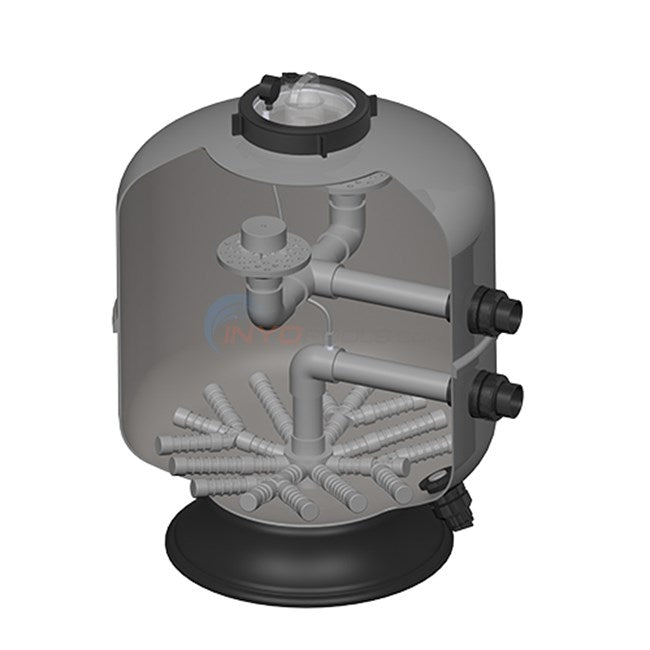

The HAYWARD HCF236C is a 36-inch sand filter designed for commercial pools. This model is built with molded fiberglass and features a UV-protected gel coat for long-lasting durability. With multi-diffuser distribution heads and oversized laterals, it enhances filtration efficiency and extends filter cycle time.

• Offers a maximum flow rate of 140 gallons per minute (GPM).
• Constructed with commercial-grade PVC and ABS materials for reliability.
• Includes a transparent manway for easy inspection and maintenance.

Product Highlights

This filter is NSF/ANSI 50 Listed and comes factory plumbed for convenience. Union connectors are included to streamline installation.

Product Information

Standard Information

• Brand: HAYWARD
• Filter Type: Sand

Technical Specifications

• Pipe Size: 2-1/2 inches
• Filter Construction: Molded Fiberglass
• Housing Material: UV Protectant Gel Coated Fiberglass
• Sealing Material: EPDM
• Pressure Rating: 50 PSI
• Flow Rate: 140 GPM
• Backwash Flow Rate: 143 GPM
• Effective Filtration Area: 7.05 SQFT
• Product Dimensions: 43.5 x 37.5 x 37.5 inches
• Product Weight: 100 lbs
• Sand Capacity: 900 lbs
• Shipping Dimensions: 22.5 x 13.5 x 13.5 inches
• Shipping Weight: 15 lbs
