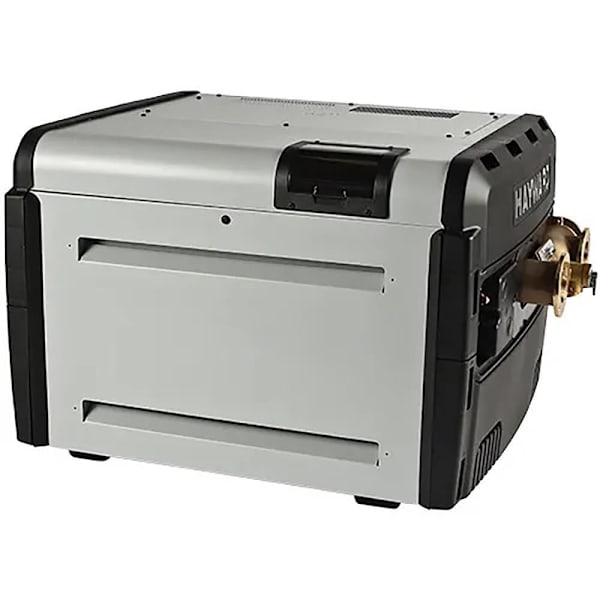

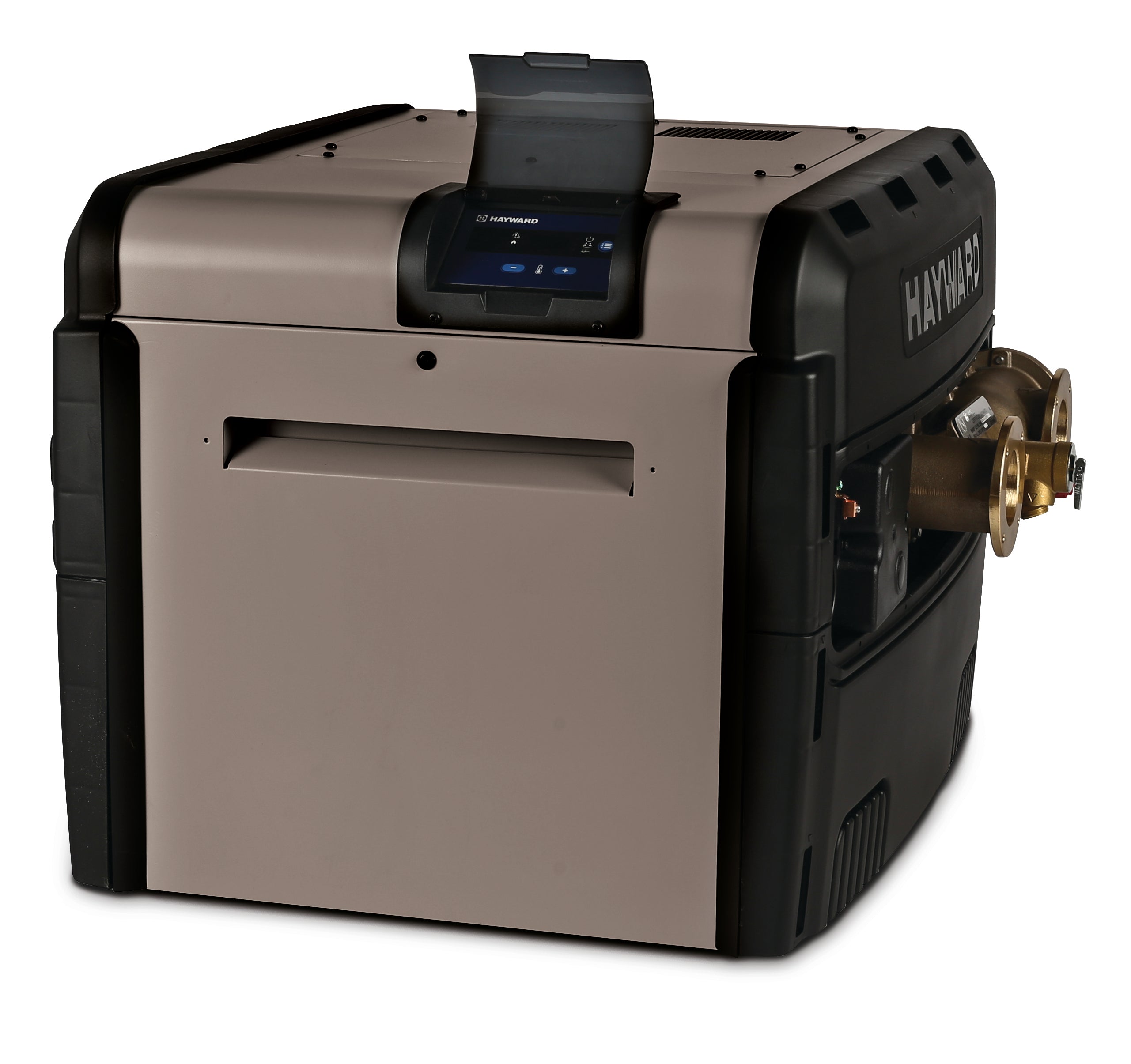

Hayward H250FDNASME Universal H-Series ASME Heater 250,000 BTU Natural Gas Low NOx

Product Description

The Hayward H250FDNASME Universal H-Series ASME 250,000 BTU heater is designed for commercial pools, utilizing natural gas with low NOx emissions. Built for performance, efficiency, and reliability, this heater is ideal for hotels, health clubs, and community centers. It is ASME certified and designed for maximum hydraulic efficiency.

• Cupro Nickel Finn Plate Heat Exchanger with Bronze Header for corrosion resistance and thermal efficiency.
• ASME-Certified Pressure Relief Valve for safety compliance.
• Low-NOx Emissions meet commercial air quality standards.

Product Highlights

This Hayward Universal H-Series ASME heater is designed for commercial use with a cupro-nickel finn plate heat exchanger and bronze headers. It features independent left or right side electrical, water, and gas connections.

Product Information

Standard Information

• Brand: HAYWARD
• Manufacturer Part Number: H250FDNASME
• Country of Origin: USA

Technical Specifications

• Brand: Hayward
• Fuel Type: Natural Gas (NA)
• GTIN: 610377135269
• Heating Capacity (BTU/hr): 250,000
• Hertz - Heaters: 60 Hz
• Kilowatts: 73 kW
• Low Ambient Operation: Yes
• Maximum Breaker Size (Amps): 15
• Minimum Operating Temperature: 40 00b0F
• Phase - Heaters: 1
• Pool Type: Commercial
• Series Heaters: Universal H-Series
• Side Clearance - Heaters: 12"
• Voltage - Heaters: 120/240V
• Model #: H250FDNASME
• BTU: 250,000 BTU
• Gas: Natural
• Ignition: Electronic
• Digital Readout: Yes
• Elevation: 0-10,000 ft.
• Heat Exchanger: Cupro-Nickel
• Special Feature: Low NOx Emissions / Commercial
• Thermostat: Dual
• Heater Type: Natural Gas
• Manufacturer: Hayward
• Type: Low NOx
• Certification: ASME
• Package Quantity: 1
• Certifications & Standards: AbilityOne
• ADA Compliant: true
• GSA Approved: true
• Made in the USA: true
• TAA/BAA Compliant: true
• UL Listed: true
• HazMat: Hazardous
