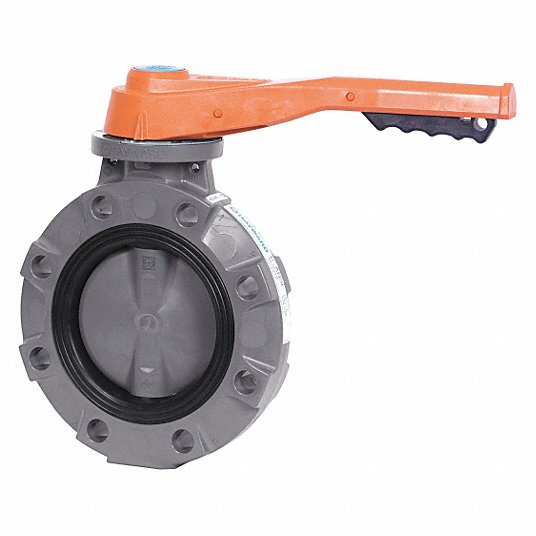

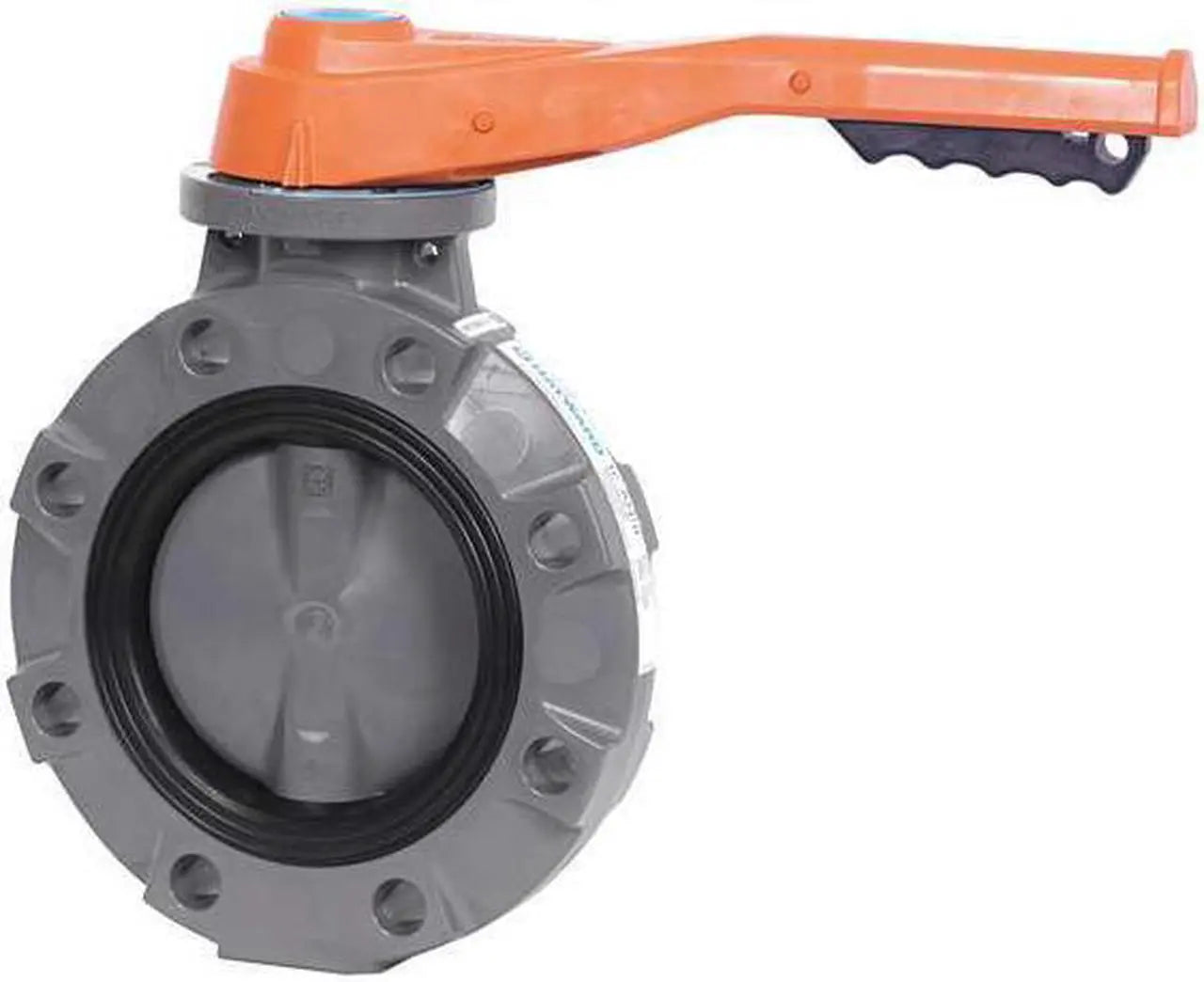

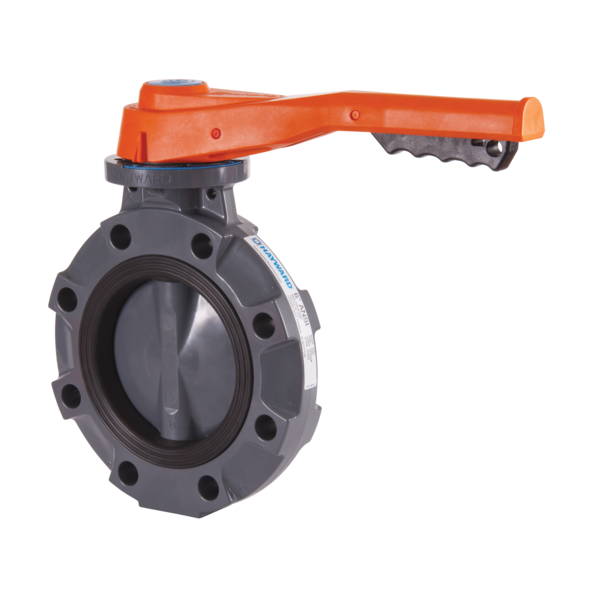

Hayward BYV11030A0EL000 BYV Series Butterfly Valve, Lever Operated, PVC Body, PVC Disc, EPDM Seals, 3 inches Size

Product Description

The Hayward BYV11030A0EL000 is a BYV Series butterfly valve with lever operation, a PVC body and disc, and EPDM seals. This valve features a robust thermoplastic design lighter than metal equivalents. Designed for global use, it meets ANSI and DIN/EN flange patterns with a pressure rating of 150 PSI. Made by Hayward in the USA.

• Features a revolutionary hand lever with 19 lockable stop positions and 360° interlock
• Has external disc position and flow indication
• Hydro-dynamic centric disc design for increased flow performance

Product Highlights

The Hayward butterfly valve is ideal for water treatment, chemical processing, and aquatic life support systems.

Product Information

Standard Information

• Brand: HAYWARD
• Manufacturer Part Number: BYV11030A0EL000
• Country of Origin: USA

Technical Specifications

• Brand: Hayward
• Manufacturer: Hayward
• Model / MPN: BYV11030A0EL000
• Size: 3"
• Number of Items: 1
• Material: PVC
• Handle Style: Lever
• Connection Type: Flanged x Flanged
• Pressure Rating: 150 PSI @ 70 00b0F
• Max Pressure (PSI): 150
• Item [Specifications]: Butterfly Valve
• Style [Specifications]: Wafer
• Lug Dia. [Specifications]: 3/4 in
• Pipe Size [Specifications]: 3 in
• Standards [Specifications]: ISO 5211
• Compliance [Specifications]: ASTM D1784 Cell Class 12454
• Handle Type [Specifications]: Lever
• Temp. Range [Specifications]: 32 Degrees to 140 Degrees F
• Product Type [Specifications]: Valve
• Body Material [Specifications]: PVC
• Disc Material [Specifications]: PVC
• Bolt Circle Dia. [Specifications]: 6 in
• Max. Water Pressure [Specifications]: 150 psi
• Valve Body Material [Specifications]: PVC
• Number of Bolt Holes [Specifications]: 4
• Country of Origin (subject to change) [Specifications]: United States
• Body Material Type: PVC Body, non-lugged
• Sealing Material: EPDM
• Operation Type: Lever Operated
• Cv Coefficient: 250.0000
• Inlet Size: 3 in
• Outlet Size: 3 in
• Max Temperature: 140 00b0F (60 00b0C)
• Max Pressure: 150 PSI (10.3 bar) @ 70 02daF (21 02daC)
• Materials of Construction: PVC
• Material - Disc: PVC
• Max System Flow: 8 ft/s (thermoplastic piping)
• Disc Alignment: Concentric
• Bolt Holes: 4
• Max. Pressure (CWP): 150 psi
• Max. Pressure (Steam): Not Rated
• Media Temp. Range: 32 00b0F to 140 00b0F
• For Media: Chemicals; Water
• Standards: ANSI B16.10/ISO 5752; ISO 5211; NSF/ANSI 372
• NSF Certifications for Food and Drinking Water: NSF 61
• 3-A Compliance: Not Rated
• Vacuum Service Rating: Not Rated
• Flow Coefficient (Cv): 250
• Valve Series: BYV
• O-Ring Material: EPDM
• Stem Material: 316 Stainless Steel
• Handle - Locking: Locking
• Stop Positions: 19
• Includes Disc Position Indicator: Disc Position Indicator Included
• Lug Diameter: 3/4 in
• Handle Length: 10.5 in
• Handle Material: Glass-Filled Polypropylene
• UNSPSC: 40141620
• MPN: BYV11030A0EL000
• Type: Butterfly Valve
• Series: BYV Series
• Valve Type: Butterfly Valve Lever
• Valve Size: 3"
• Seal Material: EPDM
• Carton Qty: 1
• UPC Code: 0610377247108
• Ratings & Standards: NSF Approved
• Actuator Type: Lever Handle
• Body Material: PVC
• Disc Material: PVC
• Domestic/Import: Domestic
• Nominal Size: 3 In
• Softgoods Material: EPDM
• Stem & Pin Material: 316 Stainless Steel (Stem)
• Temperature Rating: 70 deg F
