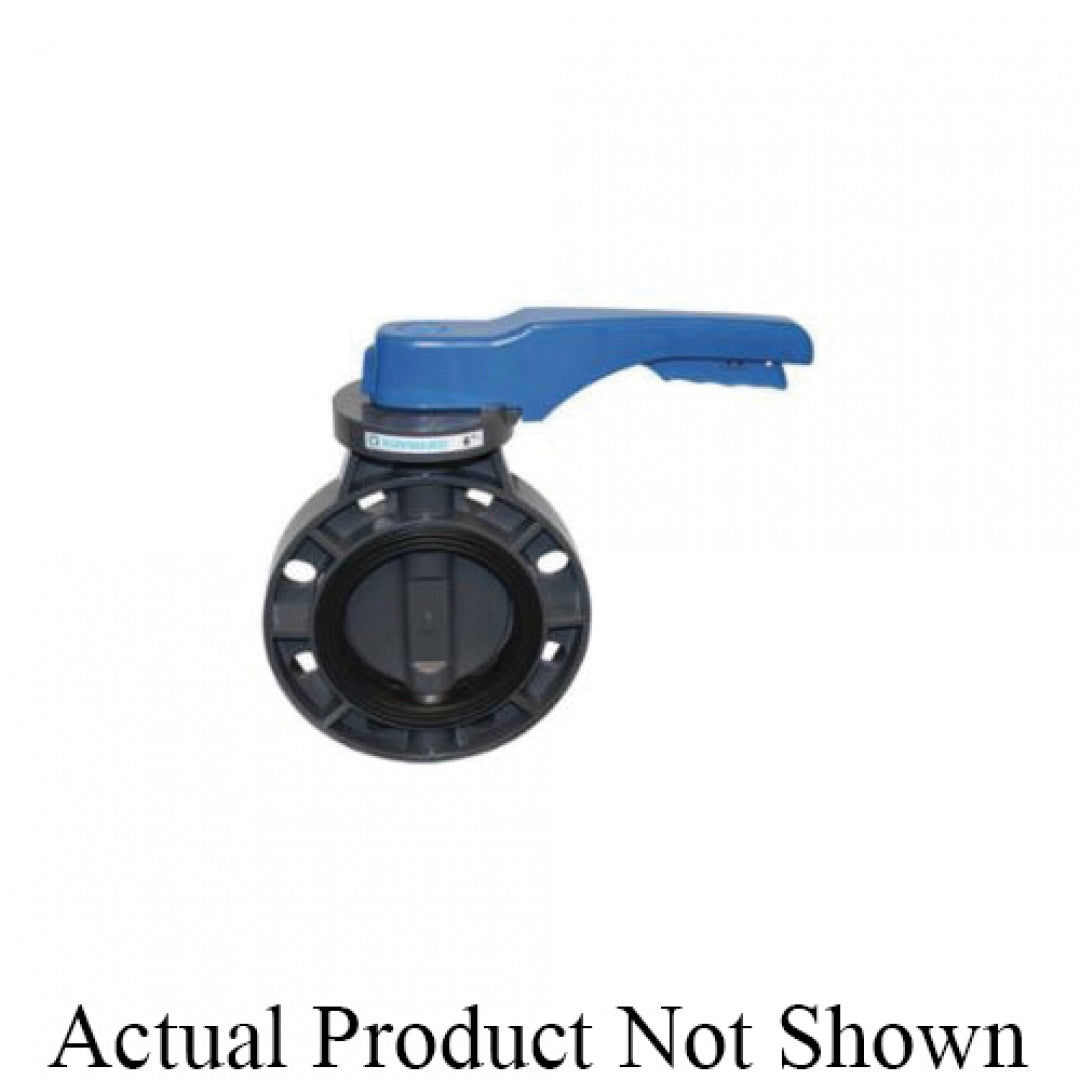

Hayward BYCN1030E1LGB Butterfly Valve Lever 3 Inch PVC

Product Description

The Hayward BYCN1030E1LGB is a 3 inch butterfly valve crafted from durable PVC with a PVC disc and EPDM liner, designed for regulating fluid flow. It features a lever handle for easy operation and is built to fit ANSI 125 or PN10 flange patterns. This model is ideal for a range of applications including potable water systems, pools, chemical processing, and water treatment facilities.

• PVC construction ensures durability and chemical resistance.
• Equipped with a 316 stainless steel shaft for increased longevity.
• NSF/ANSI 61 certified, ensuring safe contact with potable water.

Product Highlights

This butterfly valve offers a high flow capacity with a low pressure drop, enhancing system efficiency. The 9-position throttle plate allows for precise control, and the standard lockout handle ensures safety during operation.

Product Information

Standard Information

• Actuator Type: Lever Handle
• Color: Gray
• Body Material: PVC

Technical Specifications

• Disc Material: PVC
• Size: 3 inches
• Pressure Class: 125 lb
• Temperature Rating: 70 degrees F
• Stem & Pin Material: 316 Stainless Steel
• Inlet to Outlet Length: 2.09 inches
• Top to Inlet Center: 7.44 inches
