HAYWARD BFAS2015CES 1-1/2 CPVC Bulkhead Fitting w/EPDM gasket; socket x threaded end connecti

Product Description

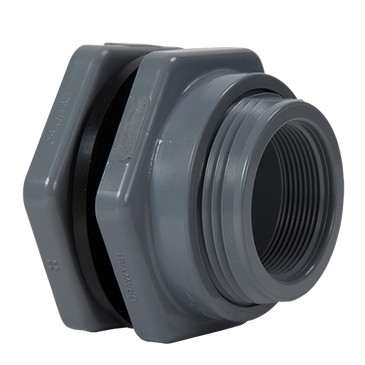

The HAYWARD BFAS2015CES is a durable bulkhead fitting made from CPVC. This component features a socket x threaded end design, suitable for a range of applications including water treatment and chemical processing. Its robust EPDM gasket ensures a secure seal under pressure. This fitting has a nominal size of one and one-half inches, a hole size of two point sixty-three inches, and can handle pressures up to one hundred fifty psi.

• Connects using socket x threaded end style
• Rated for one hundred fifty psi at seventy degrees Fahrenheit
• Shorter shaft length compared to standard fittings

Product Highlights

This bulkhead fitting is suitable for various environments. Use it in swimming pools, agriculture, and aquariums.

Product Information

Standard Information

• Manufacturer: HAYWARD INDUSTRIAL PRODUCTS
• Domestic/Import: Domestic

Technical Specifications

• Fitting/Connector Type: Connector
• Nominal Size: 1-1/2 in
• Hole Size: 2.63 in
• Hex Size: 3-1/4 in
• Length: 3 in
• Thickness: 1 in
• Material: CPVC
• Pressure Rating: 150 psi
• Temperature Rating: 70 deg F
• Series: BFAS
