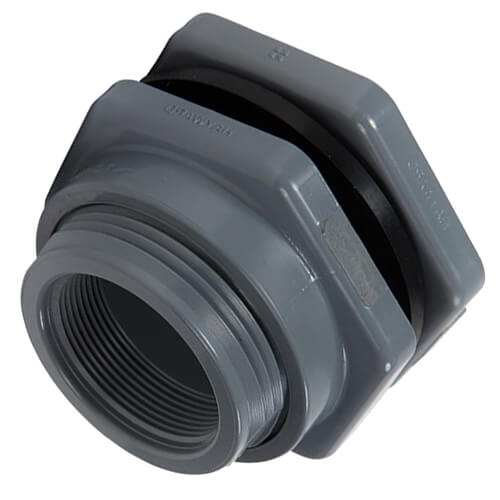

Hayward BFAS1005CES 1/2 PVC Bulkhead Fitting w/ EPDM Gasket (Socket x Thread)

Product Description

The Hayward BFAS1005CES is a 1/2 inch PVC Bulkhead Fitting that includes an EPDM gasket, designed for socket and threaded connections. It features a shorter shaft compared to the BFA series, enhancing its functionality in various applications. This fitting is ideal for connecting pipes while ensuring a secure seal.

• Designed for water and wastewater treatment
• Rated for pressure up to 150 psi
• Compatible with various sectors including agriculture and chemical processing

Product Highlights

The Hayward BFAS series bulkhead fittings facilitate strong connections and are suitable for both industrial and residential applications.

Product Information

Standard Information

• Brand: Hayward Industrial Products
• MPN: BFAS1005CES

Technical Specifications

• Material: PVC
• Nominal Size: 1/2 inch
• Length: 2.75 inches
• Thickness: 1.08 inches
• Hole Size: 1.38 inches
• Hex Size: 2 inches
• Pressure Rating: 150 psi
• Temperature Rating: 70 degrees F
• End Style: Socket x Thread
• Connector Type: Connector
• Domestic/Import: Domestic
