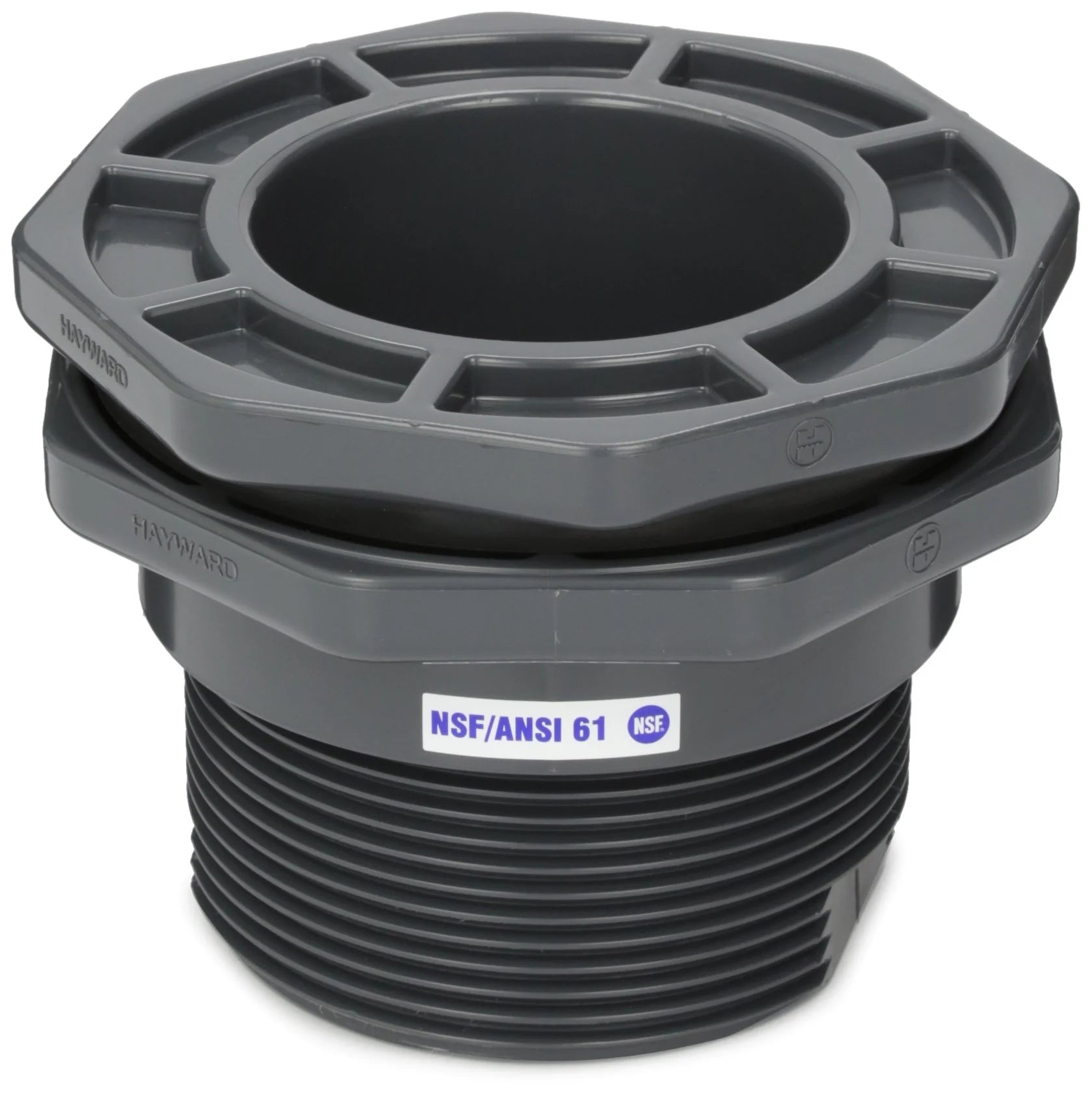

Hayward BFA1030CES 3-Inch PVC Bulkhead Fitting With EPDM Gasket

Product Description

The Hayward BFA1030CES 3-Inch PVC Bulkhead Fitting is designed for various applications requiring varying shaft lengths. Suitable for thick tank walls, this fitting accommodates a 4-1/2 inch hole and comes in gray. Constructed from durable PVC, it features an EPDM standard flange gasket seal for reliable performance. The fitting supports quick and safe pipe connections to both plastic and metal tanks and includes left-hand full buttress threads for a secure fit.

• Used in swimming pools, water parks, and aquaculture.
• Suitable for chemical processing and wastewater treatment.
• Allows for one-person installation with a hex body design.

Product Highlights

Designed for thick tank walls, this fitting ensures easy and quick installations. Made from high-quality PVC, it can handle a maximum pressure of 150 PSI. The fitting supports a range of applications including chemical processing and water treatment.

Product Information

Standard Information

• Brand: Hayward
• MPN: BFA1030CES
• Color: Gray
• Material: PVC

Technical Specifications

• Nominal Size: 3 inches
• End Style: Socket x Thread
• Length: 4.65 inches
• Hex Size: 4.65 inches
• Hole Size: 4-1/2 inches
• Pressure Rating: 150 PSI
• Gasket Material: EPDM
• Max Operating Temperature: 140 degrees Fahrenheit
• Min Operating Temperature: 40 degrees Fahrenheit
