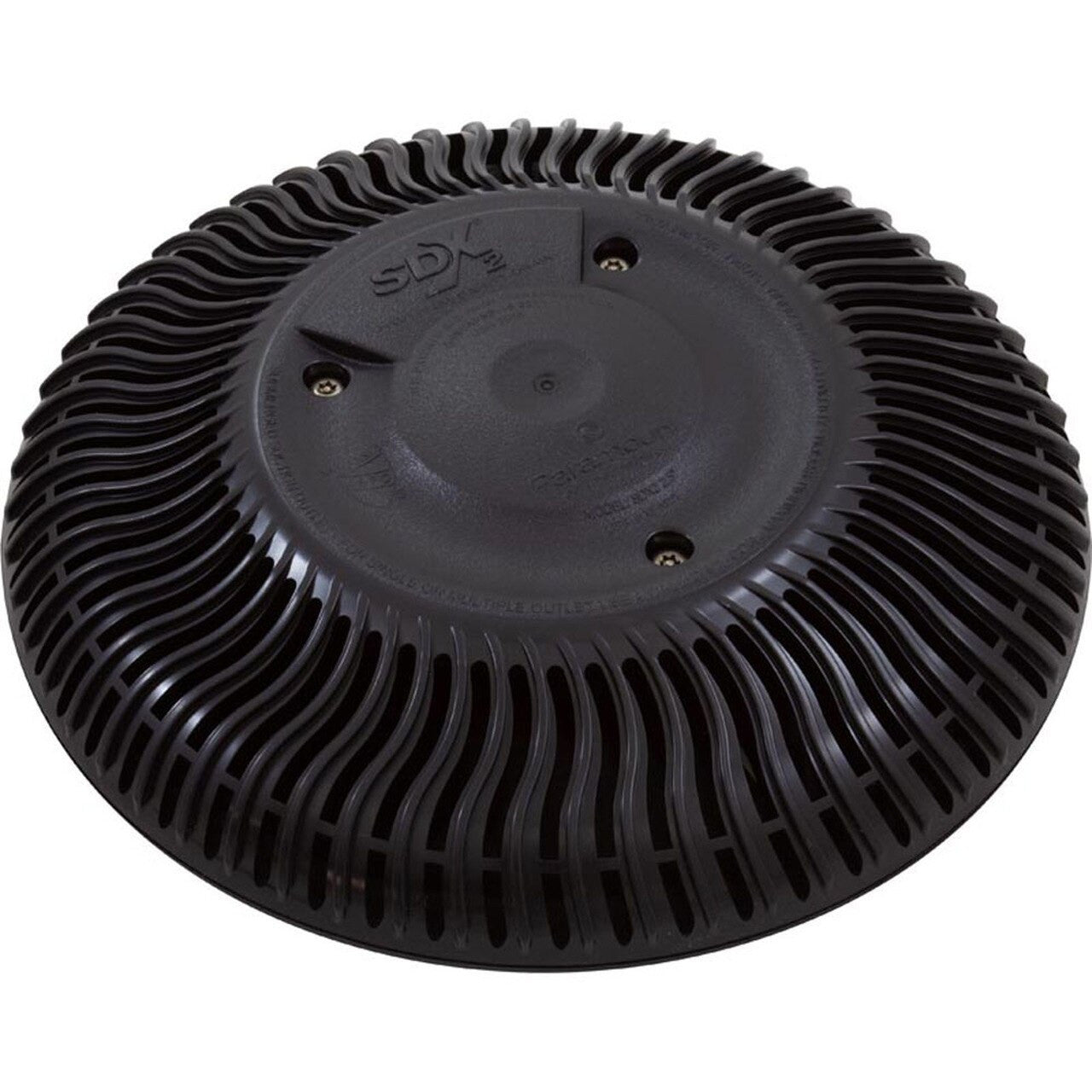

HAYWARD 004192223103 SDX2 Retro High Flow Safety Drain

Product Description

The HAYWARD 004192223103 SDX2 is a safety drain designed for high flow in concrete pools. It serves both wall and floor fitting purposes. The patented ribbed design consists of sixty independent flow partitions that optimize flow rates. The drain includes an adaptable backplate for retrofitting suction fittings with a maximum diameter of ten inches, along with a plaster ring for new installations. An anti-vortex center shield is included to prevent direct suction contact.

• Fits concrete pools
• Serves as wall or floor fitting
• Includes anti-vortex center shield

Product Highlights

High flow safety drain suitable for both new and retrofit applications.

Product Information

Standard Information

• Application: Concrete Pools
• Fitting Type: Wall or Floor

Technical Specifications

• Flow Rate (Floor): 188 gpm
• Flow Rate (Wall): 154 gpm
• Velocity: 1.396 feet per second (at maximum floor flow)
• Feature: Retrofit adaptable backplate for suction fittings up to 10 inch diameter
