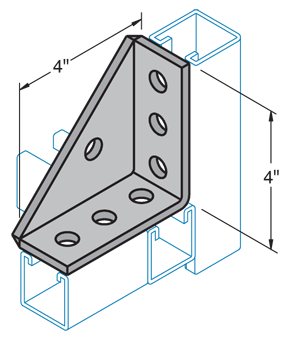

Haydon A-335 Corner Support Bracket, (7) Holes, 1-5/8 in W x 1/4 in THK, Electrogalvanized Steel

Product Description

The Haydon A-335 Corner Support Bracket is a strong support option for various construction needs. This bracket is made from electrogalvanized steel, ensuring durability and resistance to corrosion. It features seven holes for versatile attachment options, making it suitable for use with H-STRUT general fittings.

• Designed to fit with all H-STRUT one and five/eighths inch wide channels.
• Constructed from one-fourth inch thick carbon steel for strength.
• Holes measure nine-sixteenths inch in diameter, allowing for secure fastening.

Product Highlights

The Haydon A-335 offers simplified installation and robust support for electrical and structural applications.

Product Information

Standard Information

• Brand: Haydon
• Part Number: Q9203

Technical Specifications

• Material: Electrogalvanized Steel
• Thickness: 1/4 inch
• Width: 1-5/8 inches
• Number of Holes: 7
• Hole Size: 9/16 inch
• Hole Spacing: 1-7/8 inch on center
