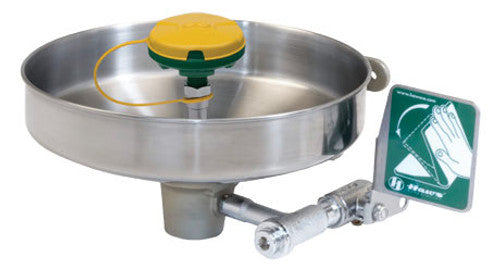

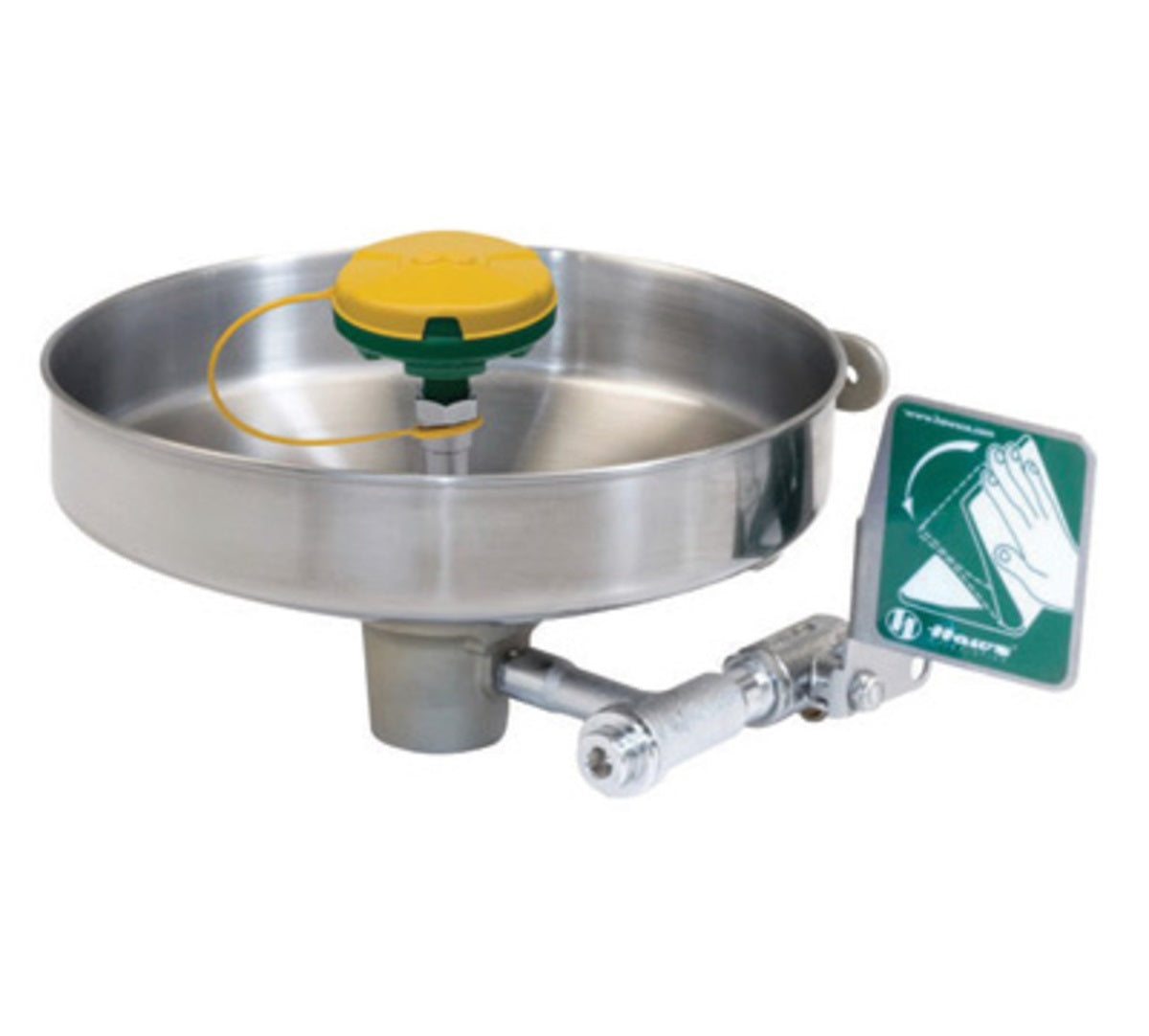

Haws Drinking Faucet Company 7360B-7460B Axion MSR Wall Mount Eye/Face Wash

Product Description

The Haws Drinking Faucet Company 7360B-7460B is a wall-mounted eye/face wash that features the AXION MSR eye/face wash head assembly. This design utilizes a unique inverted flow to meet emergency medical standards by directing water flow away from the nasal cavity, ensuring effective contaminant removal.

• Medically acclaimed AXION MSR eye/face wash head assembly
• Inverted flow design offers Zero Vertical Velocity engineering
• Stainless steel bowl ensures durability and reliability

Product Highlights

This eye/face wash station meets ANSI/ISEA Z358.1 standards, providing a reliable solution for emergency situations.

Product Information

Standard Information

• Brand: Haws Drinking Faucet Company
• MPN: 7360B-7460B

Technical Specifications

• Bowl Size: Stainless steel 11 inches (27.9 cm) round bowl
• Eye/Face Wash Head: AXION MSR head with inverted directional laminar flow
• Flow Rate: Supplied by an integral 3.7 gpm flow control
• Valve: Chrome-plated brass stay-open ball valve
• Strainer: 50 x 50 mesh chrome-plated brass in-line water strainer
• Bracket: Cast-aluminum chromate protected wall bracket
• Dust Cover: Yellow plastic pop-off dust cover
• Sign: Universal sign included
• Inlet: 1/2 inch NPT inlet
• Waste: 1-1/4 inch NPT waste
• Mounting: Wall Mount
• Eyewash Bowl Material: Stainless Steel
• Operation: Push Handle
• Fitting Size: 1/2 inch NPT Female
• Head Diameter: 2-1/4 inches
• Bowl Diameter: 11 inches
• Width: 14-3/4 inches
• Depth: 14-1/16 inches
• Height: 10-3/4 inches
• ANSI Compliant: Yes
• Number of Heads: 1
• Supply: 1/2 inch IPS
• Certification: Certified by CSA to meet ANSI Z358.1
• Applications: Industry
• Safety Product Type: Eye Wash Station
• Trade Name: AXION MSR
• Size Description: 11 inches
