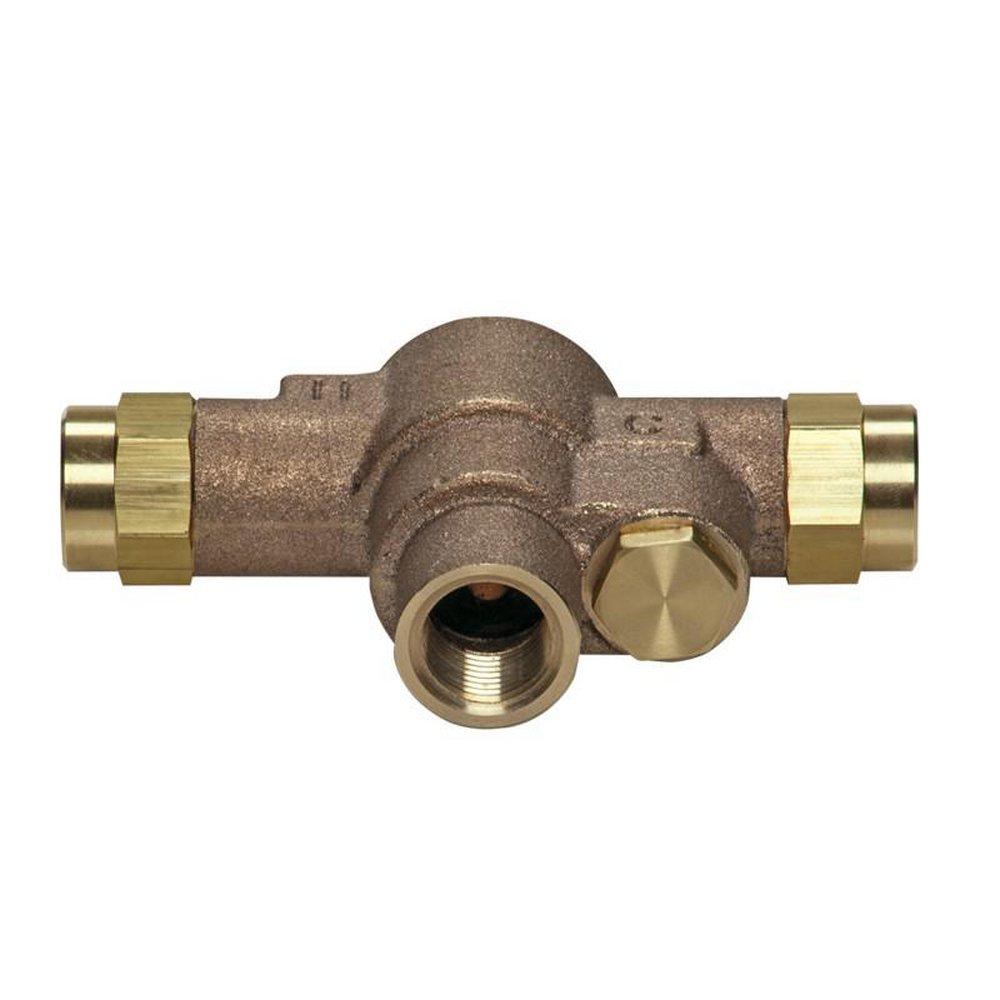

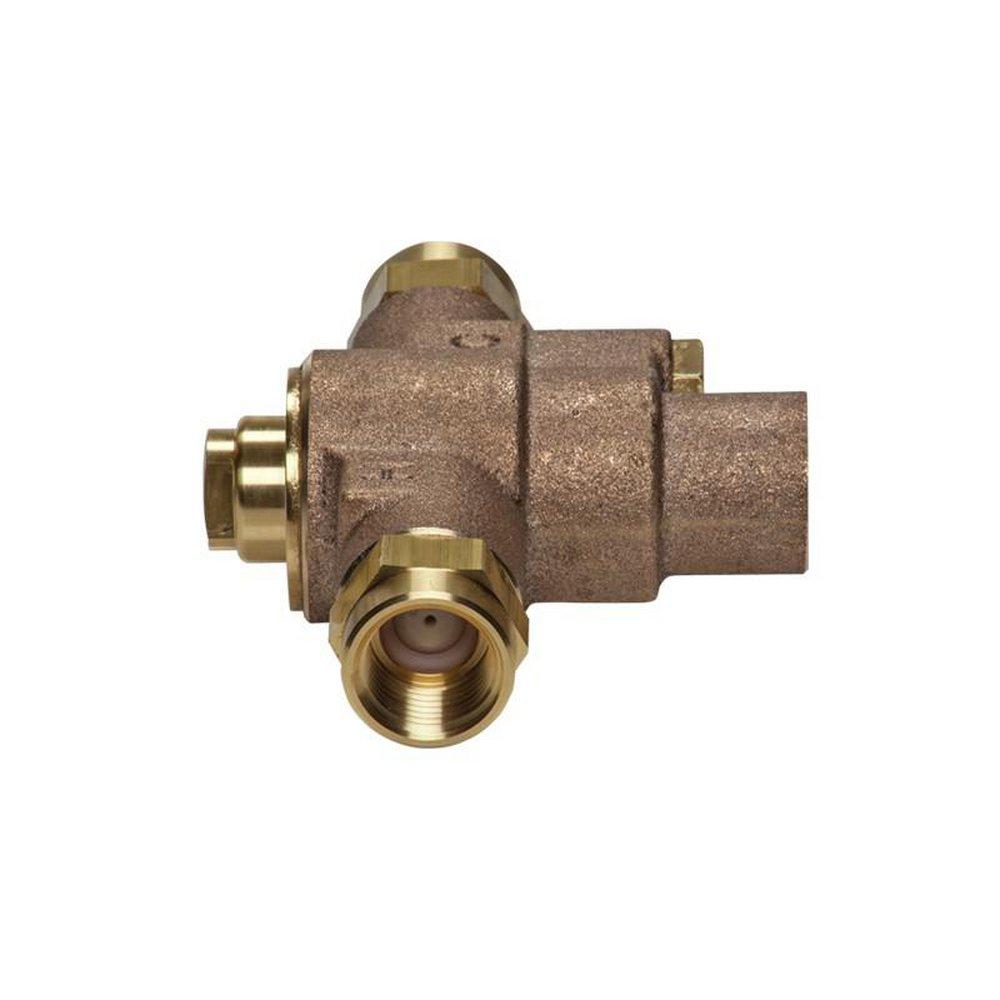

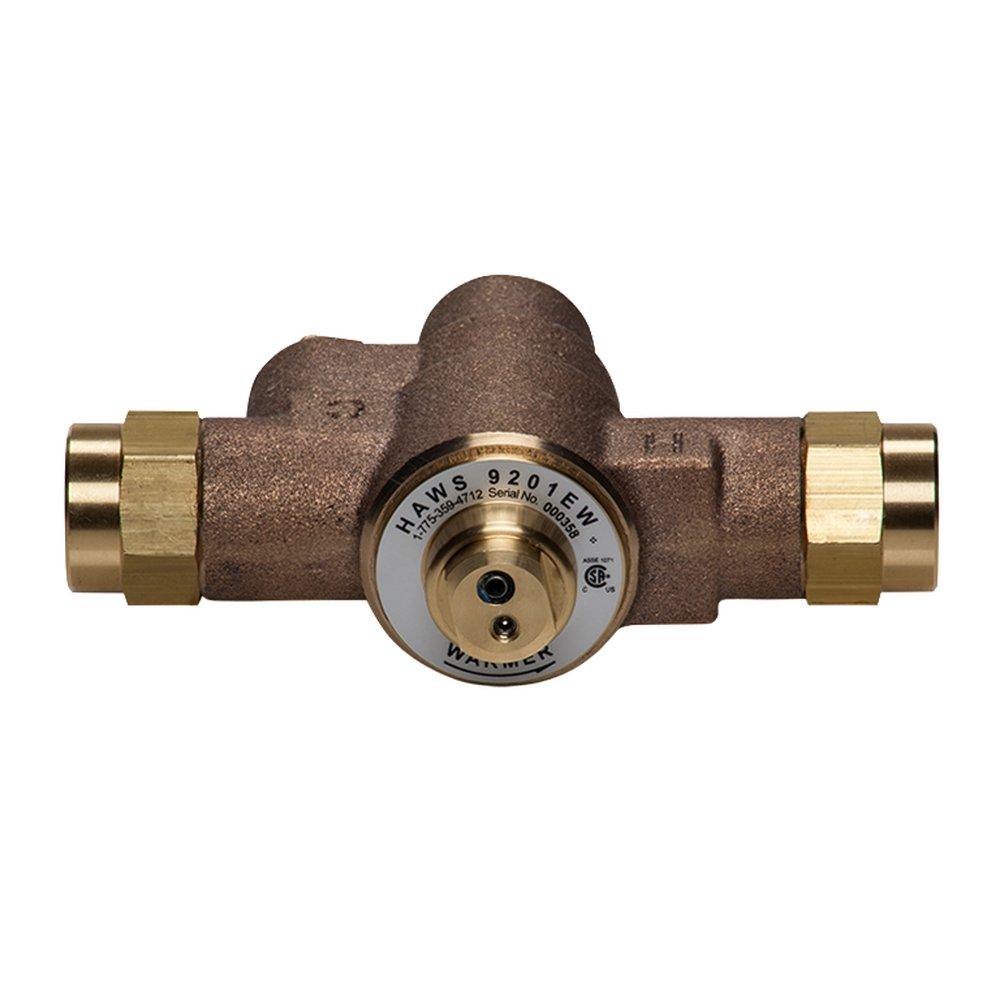

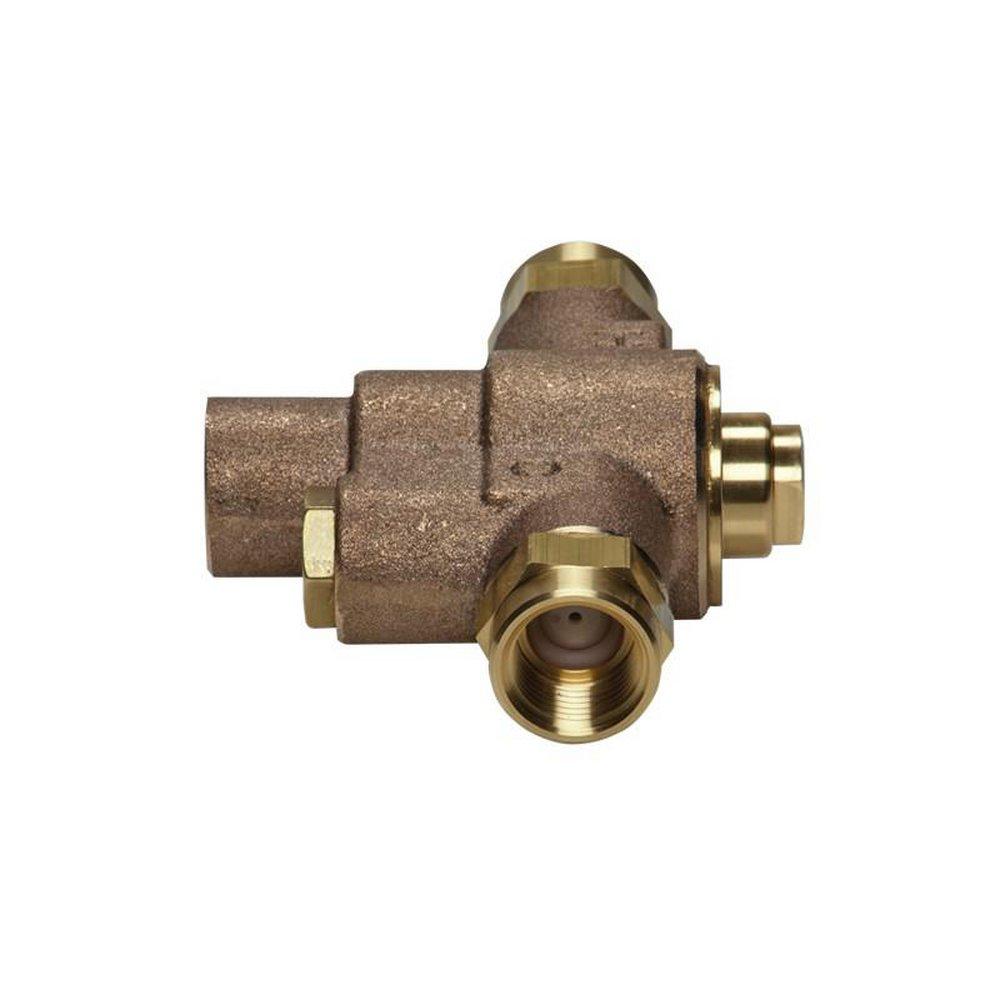

Haws 9201EW Axion 1/2 in. FNPT Brass Thermostat Mixing Valve

Product Description

The Haws 9201EW is a 1/2 inch FNPT brass thermostat mixing valve. It controls water temperature for emergency fixtures. This valve utilizes advanced wax-based technology for reliable performance and quick response times.

• Flow range of 1 to 10 gallons per minute for effective temperature regulation.
• Durable brass construction ensures longevity and reliability.
• Inlet and outlet sizes of 1/2 inch, designed for easy integration with existing systems.

Product Highlights

The Haws 9201EW valve provides efficient temperature control, making it suitable for emergency applications.

Product Information

Standard Information

• Brand: Haws
• MPN: 9201EW

Technical Specifications

• Valve Application: Tempered Water for Emergency Fixtures
• Body Material: Brass
• Valve Connection: FPT
• Inlet Connection Size: 1/2 inch
• Outlet Connection Size: 1/2 inch
• Minimum Flow GPM: 1 GPM
• Set Temperature: 85 degrees Fahrenheit
• Max Pressure: 125 psi
• Limit Stop: 90 degrees
• Point-of-Use Certified: Yes
• Point-of-Source Certified: Yes
• ASSE Classification: 1071
