Haws 7360BTWC Barrier-Free Wall Mounted Axion MSR Eye/Face Wash Head Tailpiece,Trap

Product Description

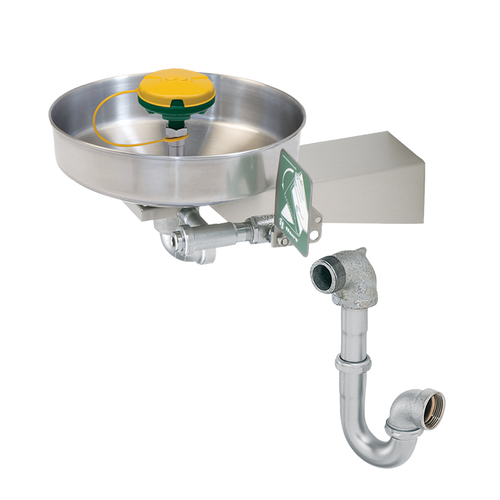

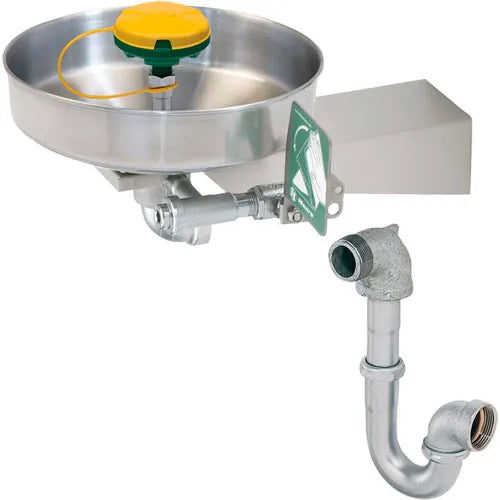

The Haws 7360BTWC barrier-free wall mounted eye/face wash features an AXION MSR eye/face wash head with inverted directional laminar flow and Zero Vertical Velocity. It includes a stainless steel 11" round bowl, a chrome-plated brass stay-open ball valve with stainless steel ball and stem, and a chrome-plated brass trap and tailpiece. Unit includes a 16 gauge stainless steel wall bracket and universal sign.

• Barrier-free wall mounted eye/face wash
• Stainless steel 11" (27.9 cm) round bowl
• AXION®MSR eye/face wash head with inverted directional laminar flow

Product Highlights

This Haws eye/face wash station is wheelchair accessible and meets ANSI Z358.1 standards. Ideal for general purpose environments.

Product Information

Standard Information

• Brand: HAWS
• Manufacturer Part Number: 7360BTWC
• Country of Origin: United States

Technical Specifications

• Type: Eye & Face Wash Station
• Brand: Haws
• Color: Silver
• Material: Stainless Steel
• Valve Type: Chrome Plated Brass Stay Open
• Width: 18 in
• Description: Axion MSR™ Eye/Face Wash, Barrier Free
• Height: 9 in
• Length: 15 in
• Bowl Material: Stainless Steel
• Pipe Material: Chrome Plated Brass
• Number of Heads: 1
• Inlet Size: 1/2 IPS in
• Fitting Material: Chrome Plated Brass
• Bowl Color Family: Silver
• Eyewash Flow Rate: 3.7 gal/min
• Mounting Location: Wall Mount
• Eyewash Activation: Push Handle
• Bowl Diameter: 11 in
• Head Diameter: 2-1/4 in
• Eyewash Handle Material: Aluminum
• ADA Compliant: Yes
• Manufacturers Part Number: 7360BTWC
• ANSI Certification: ANSI Z358.1
• Plumbed Eyewash: Plumbed Eyewash
• Coverage: Eyes and Face
• Includes: An Axion MSR(TM) Eye/Face Wash Head, Chrome-Plated Brass Stay-Open Ball Valve Equipped with Stainless Steel Ball and Stem, Chrome-Plated Brass In-Line 50x50 Mesh Water Strainer, and Chrome-Plated Brass Trap and Tailpiece, 16 Gauge Stainless Steel Wall Bracket, Universal Sign, 1/2 in IPS Inlet, and 1-1/4 in IPS Waste.
• Mounting: Wall
• Standards: ANSI Z358.1
• Activation: Push Plate
• Bowl Style: Covered
• Mount Type: Wall
• Environment: General Purpose
• Barrier Free: Yes
• Eyewash Bowl: Covered Stainless Steel
• ANSI Compliant: Yes
• Valve Material: Stainless Steel
• Inlet Pipe Gender: Female
• Inlet Pipe Thread Type: NPT
• Outlet Pipe Size: 1 1/4 in
• Inlet Connection Type: 1/2 in NPT Female
• Eye Wash Bowl Material: Stainless Steel
