Haws 7260B-7270B Wall Mounted Plastic Bowl Eye/Face Wash Axion MSR Eye/Face Wash Head

Product Description

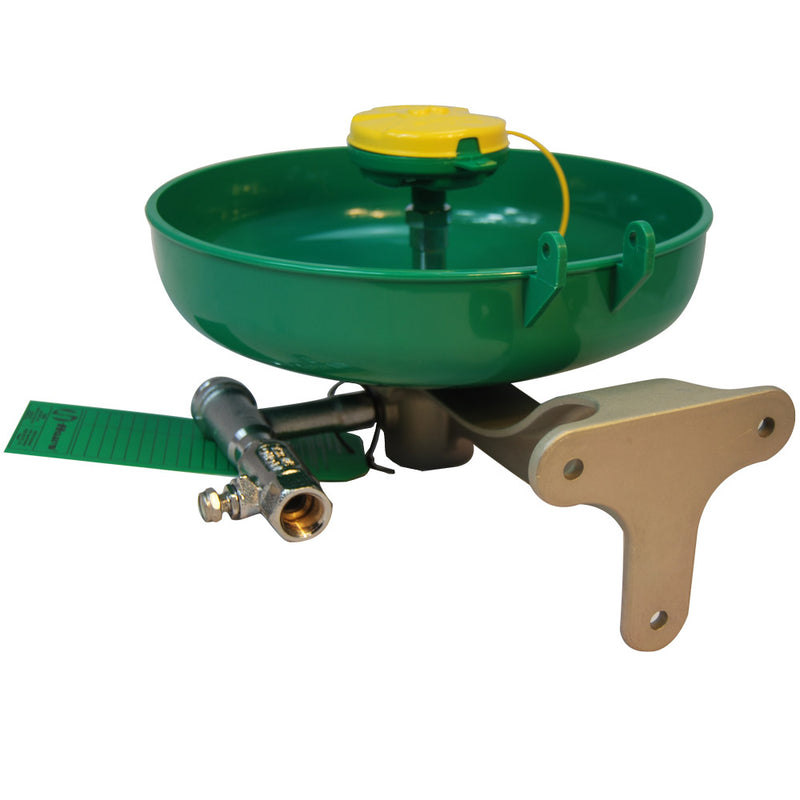

The Haws 7260B-7270B wall mounted eye/face wash features a green ABS plastic 11" bowl and an AXION MSR eye/face wash head. It utilizes inverted directional laminar flow for Zero Vertical Velocity, supplied by a 3.7 gpm flow control. Includes a chrome-plated brass stay-open ball valve with stainless steel ball and stem, and a chrome-plated brass in-line 50 x 50 mesh water strainer.

• Features a green ABS plastic 11" bowl.
• Equipped with an AXION MSR eye/face wash head.
• Includes a chrome-plated brass stay-open ball valve.

Product Highlights

Wall mounted eye/face wash with plastic bowl and AXION MSR eye/face wash head for effective contaminant removal.

Product Information

Standard Information

• Brand: HAWS
• Manufacturer Part Number: 7260B-7270B
• Country of Origin: United States

Technical Specifications

• Type: Eye & Face Wash Station
• Brand: Haws
• Color: Green
• Material: Plastic
• Valve Type: Chrome Plated Brass
• Description: Axion MSR™ Eye/Face Wash
• Bowl Material: ABS Plastic
• Pipe Material: Chrome Plated Brass
• Number of Heads: 1
• Inlet Size: 1/2 NPT Female in
• Fitting Material: Chrome Plated Brass
• Bowl Color Family: Green
• Eyewash Flow Rate: 3.7 gal/min
• Mounting Location: Wall Mount
• Eyewash Activation: Push Handle
• Bowl Diameter: 11 in
• Head Diameter: 2-1/4 in
• Eyewash Handle Material: Aluminum
• Manufacturers Part Number: 7260B-7270B
• Depth: 14-1/8 in
• Width: 14 in
• Height: 11 in
• Length: 15 in
• ADA Compliant: No
• ANSI Certification: ANSI Z358.1
• Model: MSR
• MPN: 7260B-7270B
• Application: Eye Wash, Face Wash
• Fixture Mounting: Wall Mount
• Fixture Activation: Push Handle
• Plumbed Eyewash: Plumbed Eyewash
• Series: Axion(R) MSR
• Assembly: Assembled
• Coverage: Eyes and Face
• Includes: Pop Off Dust Cover, Identification Sign and Inspection Tag
• Mounting: Wall
• Head Dia.: 2.25 in
• Standards: ANSI Z358.1
• Bowl Style: Uncovered
• Mount Type: Wall
• Environment: General Purpose
• Mount Style: Standard
• Barrier Free: No
• Eyewash Bowl: Uncovered Plastic
• Fitting Size: 1/2 in NPT Female
• ADA Compliance: No
• Valve Material: Stainless Steel
• ANSI Compliance: Supplemental Only
• Activation Type: Push Plate
• For Environment: General Purpose
• Handle Material: Aluminum
• Inlet Pipe Size: 1/2 in
• Number of Spray Heads: 1.0
• Eyewash Covering: Yes
• Inlet Connection: 1/2 in NPT Female
• Outlet Pipe Size: 1 1/4 in
• Spray Head Style: Covered
• Eye Wash Covering: Yes
• Inlet Pipe Gender: Female
• Installation Type: Plumbed
• Spray Head Diameter: 2 1/4 in
• Spray Head Material: Plastic
• Includes Drench Hose: No
• Assembled/Unassembled: Assembled
• Eye Wash Activates By: Push Handle
• Eyewash Bowl Material: Plastic
• Inlet Connection Type: 1/2 in NPT Female
• Eye Wash Bowl Material: ABS Plastic
• Inlet Pipe Thread Type: NPT
• Outlet Pipe Thread Type: NPT
• Eye Wash Handle Material: Aluminum
• Hazardous Location Rating: Not Rated
• Eye Wash and Shower Mounting: Wall
• Country of Origin (subject to change): United States
• Bowl: Green ABS plastic 11" (27.9 cm)
• Eye/Face Wash Head: AXION® MSR eye/face wash head shall feature inverted directional laminar flow which achieves Zero Vertical Velocity™ supplied by an integral 3.7 gpm flow control
• Valve: Chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem
• Strainer: Chrome-plated brass in-line 50 x 50 mesh water strainer
• Bracket: Cast-aluminum chromate protected wall bracket
• Dust Cover: Yellow plastic pop-off dust cover for eyewash head
• Inlet: 1/2" NPT inlet
• Waste: 1-1/4" NPT waste
• Item: Wall-Mount Eyewash
• Sprayhead: Eye/Facewash
• Operation: Push Handle
• Supply: 1/2" IPS
