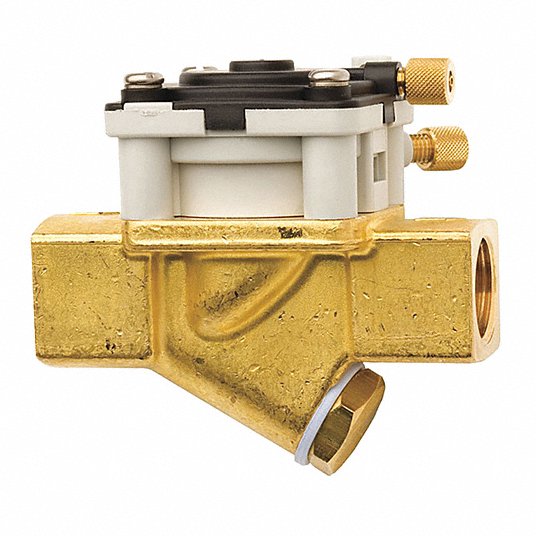

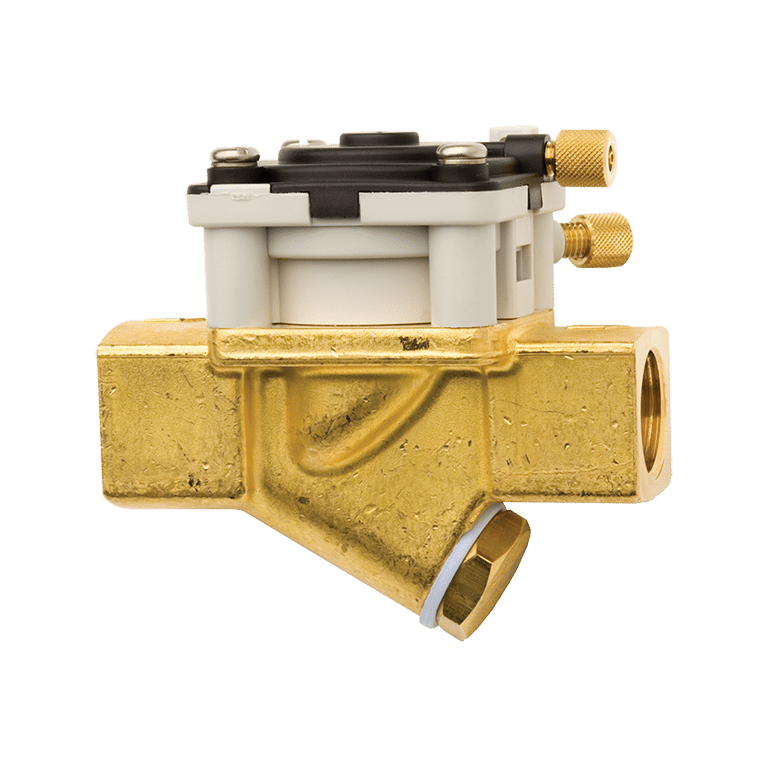

Haws 5881 Air Control Valve 1/2 in

Product Description

The HAWS 5881 air activated valve contributes to the effective functioning of drinking fountains. Its housing is divided into two separate portions, isolating the activating valve control from the water flow. An in-line mesh Y-strainer protects from contaminates, ensuring the water is filtered. It features a 1/2" connection size.

• Air activated valve for drinking fountains
• Housing separates valve control from water flow
• In-line mesh Y-strainer protects from contaminates

Product Highlights

The HAWS 5881 air control valve is push-button activated and lead-free. It is diaphragm controlled and supplied with an in-line mesh Y-strainer.

Product Information

Standard Information

• Brand: HAWS
• Manufacturer Part Number: 5881
• Country of Origin: Switzerland

Technical Specifications

• Connection Size: 1/2 in
• Connection Type: FNPT
• Control Type: Push Button
• Item Name: Air Control Valve
• Color: Multicolored
• Finish: Polished Chrome Plated
• Material: Brass
• Standards: California Health and Safety Code 116875 (AB 1953-2006), Federal Safe Drinking Water Act, NSF/ANSI Standard 61
• For Use With: Drinking Fountains
• Product Type: Air Control Valve
• Faucet Operation: Push Button
• Compatible Mfr. Model No.: VRK2AV
• Water Filter Product Type: Air Control Valve NPT
• Compatible Grainger Part Number: 33W223
• Compatible Threader Mfr. Model No.: VRK2AV, VRK3AV
• Compatible Manufacturer Part Number: VRK3AV
• Inlet: 1/2" NPT
• Outlet: 1/2" NPT
• Application: Used on all freeze-resistant drinking fountains
• Activation: Push-button
• Model: 5881
• Inlet and Outlet: 1/2" NPT
• Brand: HAWS
• Overall Length: 3 in
• Overall Width: 4 in
• Overall Height: 4 in
• Pipe Size: 1/2 in
• Includes: Y-Strainer
• Compatible Product Type: Drinking Fountains, Electric Water Coolers, Faucets
• Compatible Series: All Haws Freeze-Resistant Drinking Fountains
• Compatible Brand or Manufacturer: Haws
• Manufacturer Part Number: 5881
