Haws 5851lf faucet valve 3/8 inches replacement 5855 and 5856

Product Description

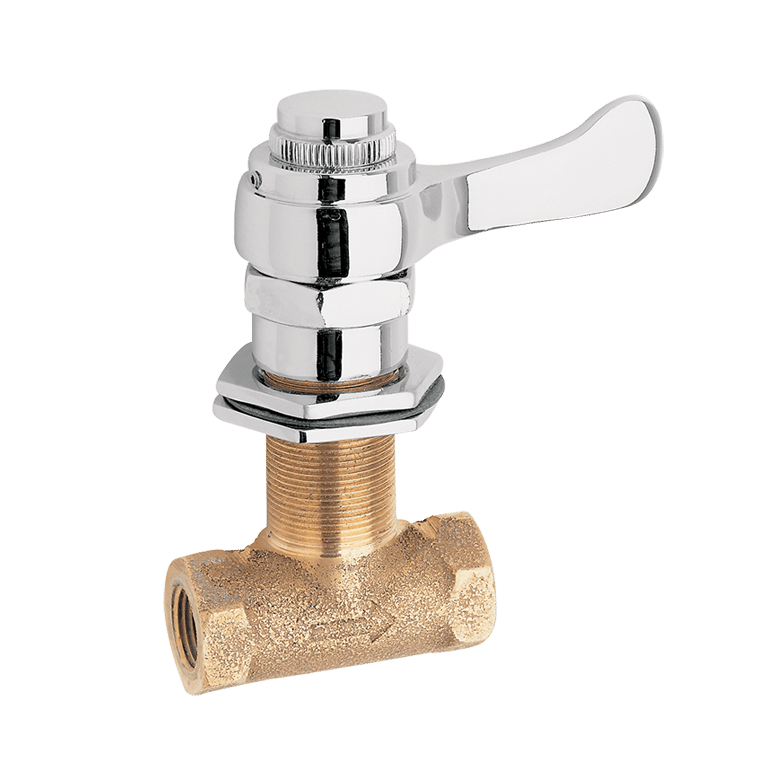

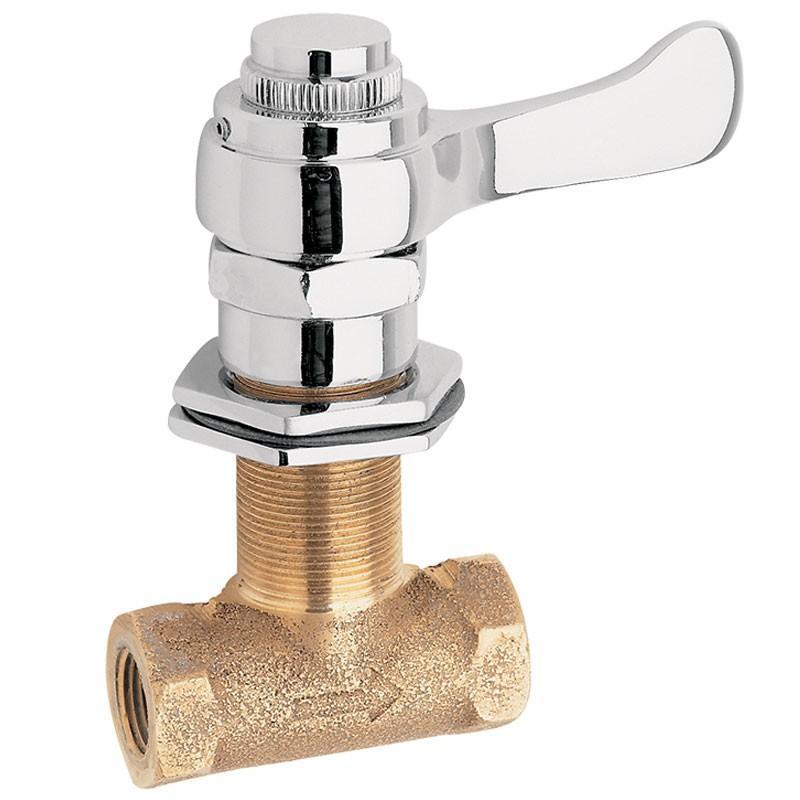

The HAWS 5851LF is a panel mounted, self-closing valve with a polished chrome-plated, vandal-resistant lever handle and rough brass body. It supports a maximum wall thickness of 1" with a required hole size of 1-1/16" diameter. The valve features 3/8" NPT(F) inlet and outlet. It replaces models 5855 and 5856.

• Panel mounted valve
• Self-closing
• Polished chrome-plated vandal-resistant lever handle
• Rough brass body

Product Highlights

The HAWS 5851LF faucet valve is ideal for use in drinking fountains and electric water coolers. It is compliant with lead-free standards.

Product Information

Standard Information

• Brand: HAWS
• Manufacturer Part Number: 5851LF
• Country of Origin: United States

Technical Specifications

• Mount: Panel mounted
• Handle: Polished chrome-plated vandal-resistant lever
• Body: Rough brass
• Wall thickness capability: 1" (2.5 cm) maximum
• Inlet and outlet: 3/8" NPT
• Material: Metal
• Inlet: 3/8" NPT(F)
• Outlet: 3/8" NPT(F)
• Manufacturer: Haws
• Model #: 5851LF
• UPC Code: 611970333274
• Type: Self-Closing
• Finish: Polished Chrome
• Manufacturer #: 5851LF
• Brand: Haws
• MPN: Haws 5851LF
• Country of Origin: United States
• Category: Business & Industrial
• Specifications: 3/8 in FNPT Inlet/Outlet, 1-1/16 in Dia Hole
