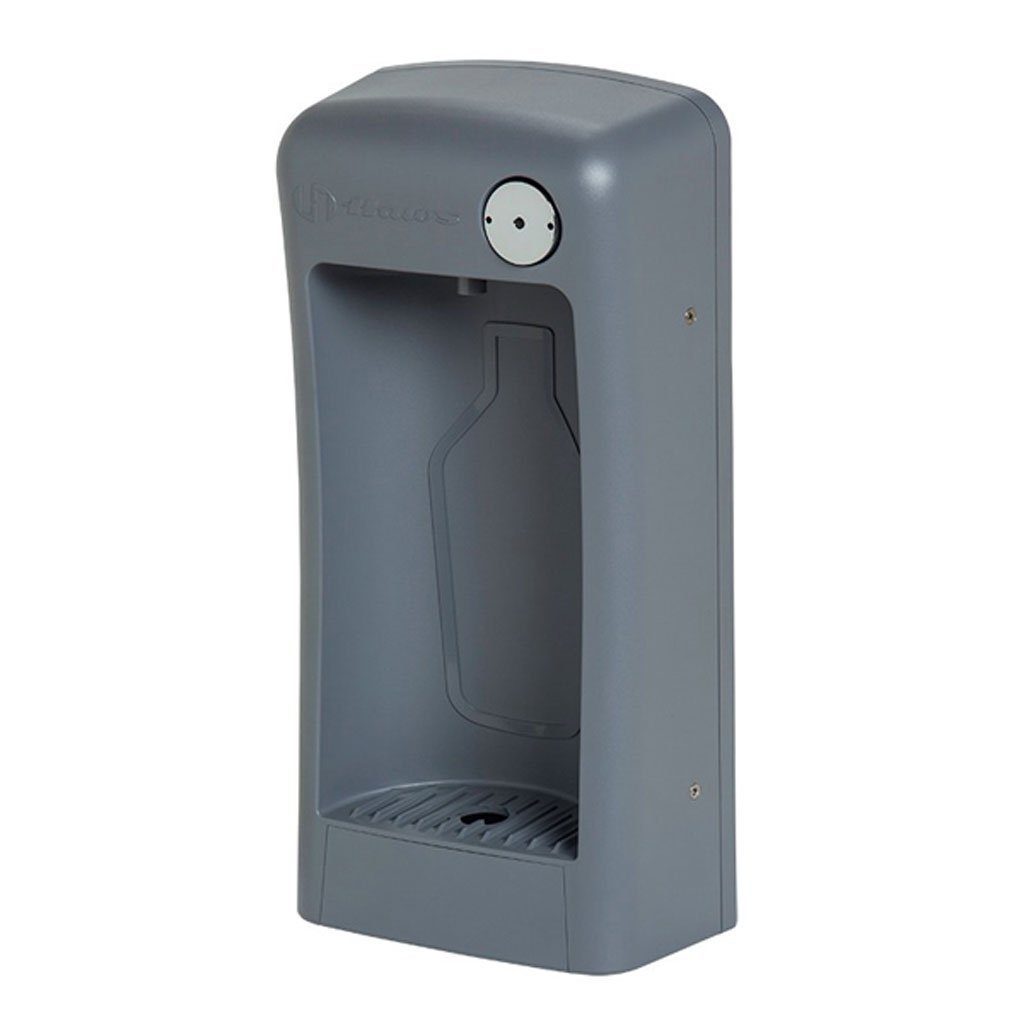

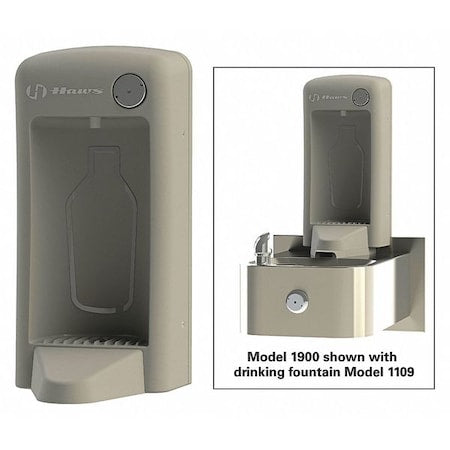

The HAWS 1900 bottle filler retrofit kit is ADA compliant and designed for wall surface mounting. It features a front push button for dispensing. The bottle filler is constructed with gray ABS plastic. It is compliant with the Buy American Act, California Health and Safety Code, and the Federal Safe Drinking Water Act.
100% Lead-Free Waterways
Easy Maintenance
Patent Pending Design of the Reversible Drain Tray can be Turned Inwards for In-Wall Waste Hook-Up
Separate Mounting Frame Allows for Quick and Easy Installation
Product Highlights

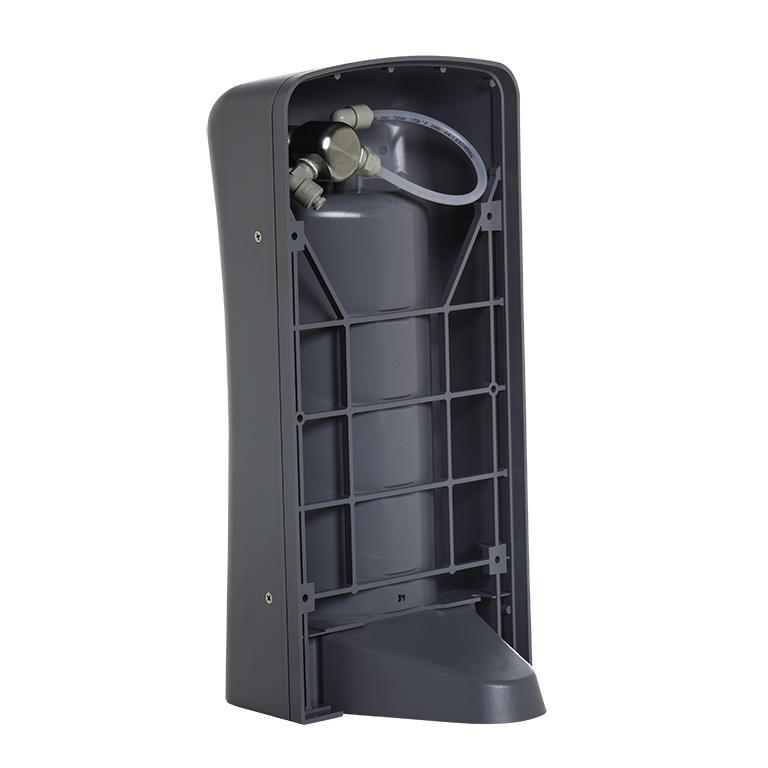

This bottle filler offers easy maintenance with front access to valve adjustment and cartridge replacement. Its large bottle filling area accommodates various size containers.
Product Information
Standard Information
Brand: HAWS
Manufacturer Part Number: 1900
Country of Origin: United States
Technical Specifications
Item
Bottle Filler Retrofit Kit
ADA Compliant
Yes
Housing Color
Gray
Overall Depth
8 3/8 in
Overall Width
8 3/8 in
Overall Height
16 1/4 in
Housing Material
ABS Plastic
Dispenser Actuation
Front Push Button
Dispensing Area Height
10 in
Drain Outside Diameter
1 1/4 in
Includes Water Chiller
No
Bottle Filler Operation
Push Button
Vandal Resistant Features
Vandal Resistant
Minimum Supply Line Pressure
30 psi
Country of Origin (subject to change)
United States
Waterways
100% lead-free
Valve
Push-button operated stainless steel valve with front-accessible cartridge and flow adjustment
Waste Attachment
Patent pending reversible waste attachment for over-fountain or in-wall waste drain
Construction
Medium grey ABS plastic construction
Mounting
Easy to use mounting frame with easy to follow mounting instructions
