Haws 1119FRP ADA Outdoor Freeze-Resistant Vandal-Resistant Dual Drinking Fountain and Bottle Filler

Product Description

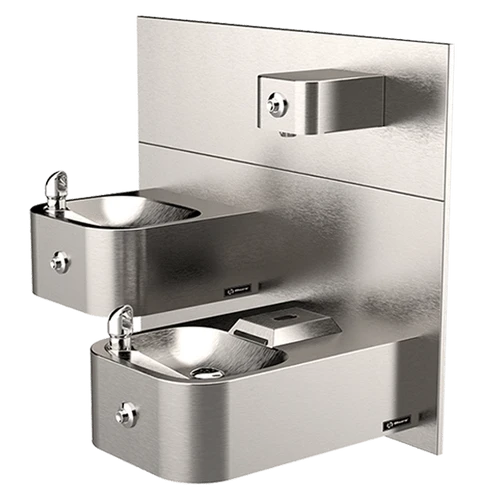

The Haws 1119FRP is a heavy-duty, wall-mounted, freeze-resistant hydration system designed for public environments. This ADA-compliant Hi-Lo configuration provides two vandal-resistant drinking fountains plus a fast-fill bottle filler. Equipped with vandal resistant components, this fountain is not easily disrupted, quickly discouraging vandals.

• Includes multiple 6521FR pneumatic freeze-resistant valves, ensuring continued functionality in temperatures above 50°F (10°C).
• Dual fountain heights accommodate adults, children, and wheelchair users.
• 1.0 GPM laminar flow bottle filler with drip tray for clean, splash-free refilling.

Product Highlights

The Haws 1119FRP is ideal for schools, parks, recreational facilities, transit centers, and government buildings. Features 18-gauge type 304 stainless steel basins, 3/16" steel mounting plates, and vandal-resistant components.

Product Information

Standard Information

• Brand: HAWS
• Manufacturer Part Number: 1119FRP
• Country of Origin: USA

Technical Specifications

• Basins: Dual 18 gauge Type 304 Stainless Steel satin finish
• Bottle Filler Bracket: 14 gauge Type 304 Stainless Steel
• Mounting Plates: In-wall 3/16" thick steel
• Bubbler Heads: Polished chrome-plated brass vandal-resistant
• Bottle Filler Flow: 1 gpm (3.78 L) laminar flow
• Push-Buttons: Polished chrome-plated brass which operate pneumatic valves housed in insulated cabinets
• Water Lines: Self-draining
• Waste Strainers: Polished chrome-plated brass vandal-resistant
• Back Panels: Stainless steel satin finish
• Waste Pipes: 1-1/4" O.D.
• Model: 1119FRP
• Material: 18-Gauge Type 304 Stainless Steel (Fountains) + 14-Gauge SS Bottle Filler Bracket
• Freeze-Resistant: Yes — Includes Multiple 6521FR Valves
• Bottle Filler Flow Rate: 1.0 GPM Laminar Flow
• ADA Compliant: Yes (Hi-Lo Accessible)
• Mounting Support: Includes 6700 & 6700.4 Steel In-Wall Support Plates
• Operation: Manual Push Button (Fountains)
• Valve System: Pneumatic Freeze-Resistant Valve Assemblies
• Drain System: Chrome-Plated Brass Vandal-Resistant Strainers
• Installation Type: Wall-Mounted
• Use Location: Outdoor
• Waterways: 100% Lead-Free
• Finish: Satin Stainless Steel
• Certifications: ADA, CSA Certified, NSF/ANSI/CAN 61 & 372
• Country of Origin: USA
