Hatco 02.01.147.00 Relay Cube Dpdt 240V

Product Description

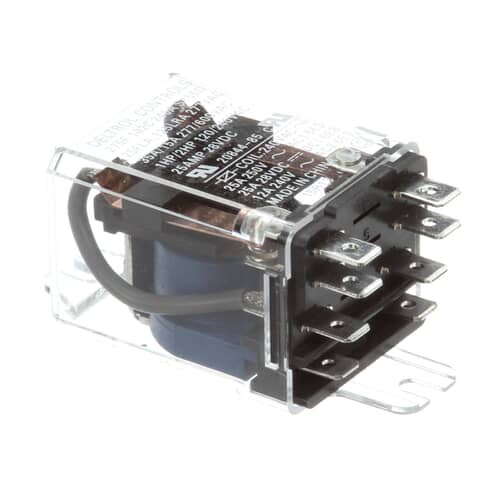

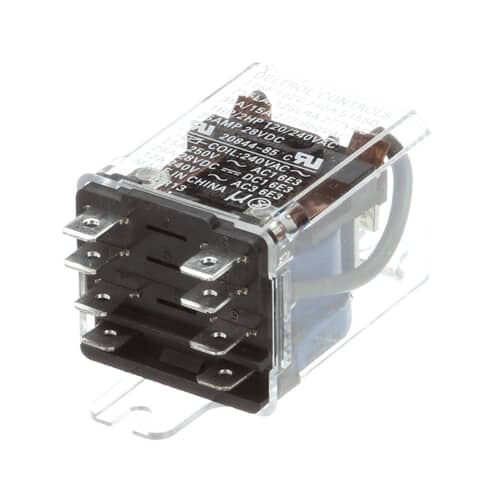

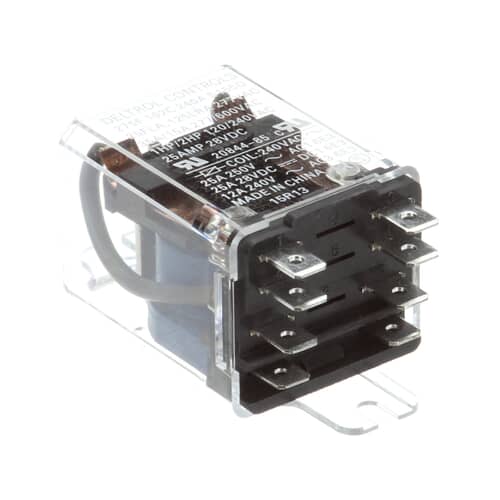

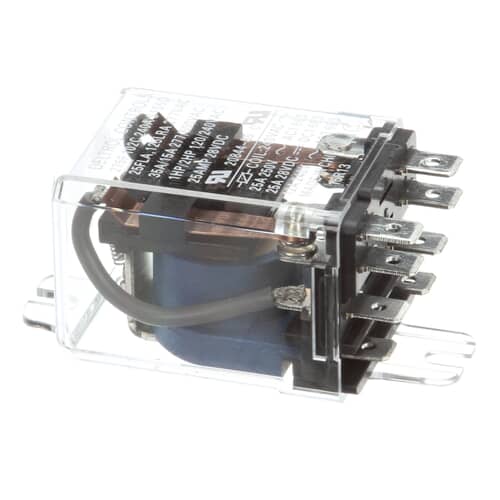

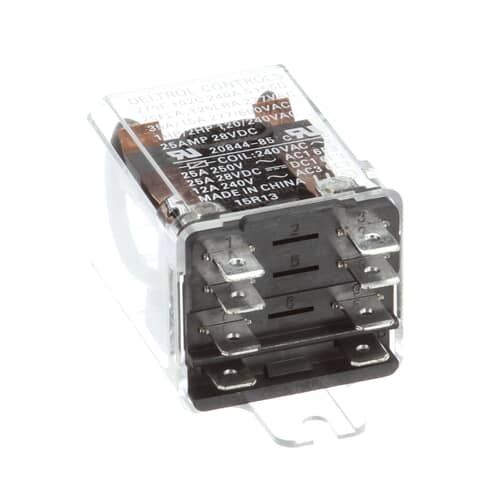

The HATCO 02.01.147.00 is a double-pole double-throw (DPDT) cube relay designed for use in commercial foodservice equipment. Operating on a 240-volt coil, it switches two independent circuits simultaneously, making it well suited for load control applications that require reliable switching in a compact form factor. This relay is a factory replacement part sourced from HATCO, intended for installation by qualified commercial appliance technicians or electricians familiar with HATCO equipment.

This relay is used in commercial foodservice environments where HATCO heating and holding equipment is installed. Typical applications include heat lamps, food warmers, booster heaters, and similar commercial appliances that rely on relay-controlled circuits to manage heating elements or other electrical loads. Installation is performed as part of a control board or wiring harness replacement service during scheduled maintenance or fault diagnosis.

Key Features

• DPDT switching configuration controls two separate circuits with a single coil actuation
• 240-volt coil rating matches common commercial appliance control voltages
• Cube form factor allows for straightforward socket-mount or PCB-mount installation
• OEM replacement part for HATCO commercial foodservice equipment

Compatibility

Designed as an OEM-style replacement relay for HATCO commercial foodservice appliances requiring a DPDT cube relay with a 240-volt coil.

Installation Notes

Installation should be performed by a licensed electrician or qualified commercial appliance service technician. Disconnect and lock out all power to the unit before removing or installing the relay. Verify that the replacement relay coil voltage and contact configuration match the original component before energizing the equipment. Follow applicable NEC requirements and local codes when servicing commercial electrical equipment.

Technical Specifications

• Relay Type: Cube
• Contact Configuration: DPDT (Double-Pole Double-Throw)
• Coil Voltage: 240 volts

Standard Information

• Brand: HATCO
• Manufacturer Part Number: 02.01.147.00
