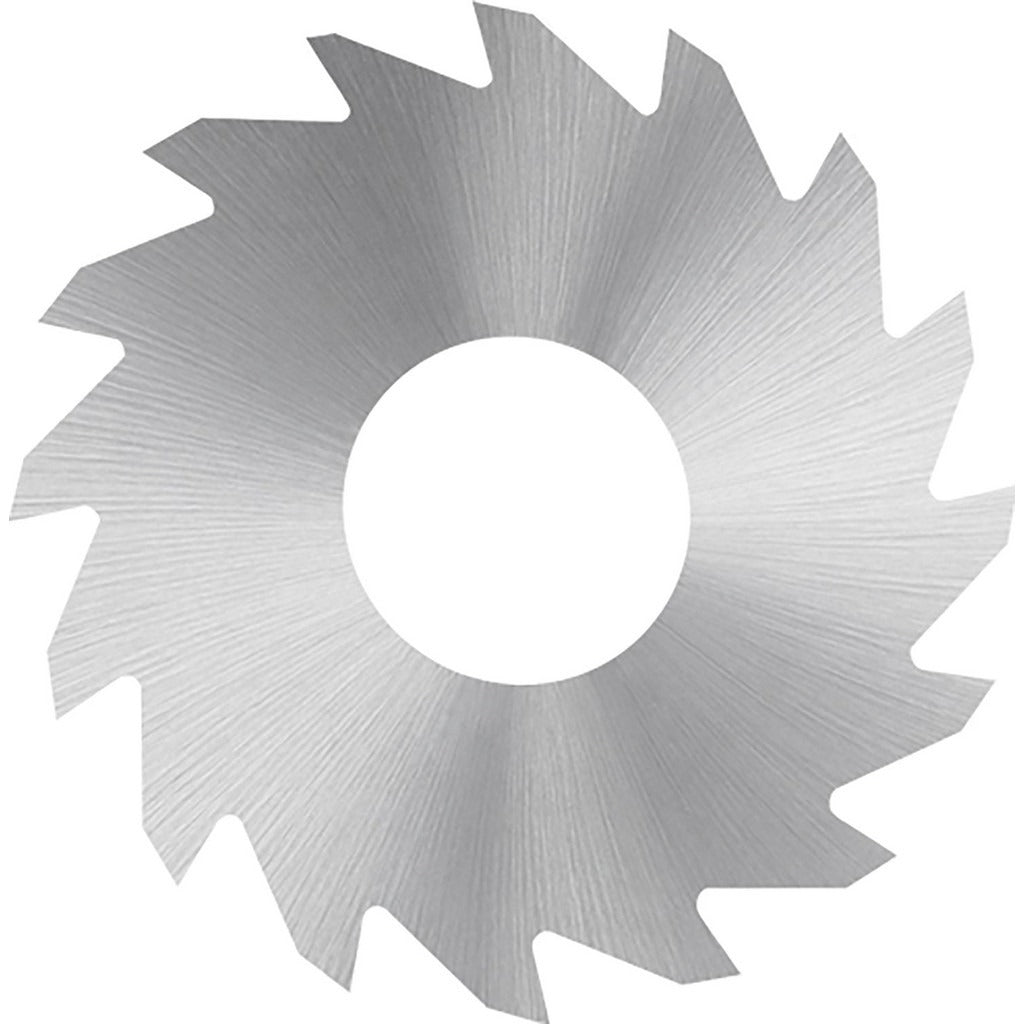

Harvey Tool SNE0625 Slitting Saw 2in 24T Solid Carbide

Product Description

The HARVEY TOOL SNE0625 is a solid carbide slitting and slotting saw designed for precision cutting and slotting operations on a milling machine or machining center. With a 2-inch blade diameter, a 1/16-inch thickness, and a 1/2-inch arbor hole, this saw delivers tight tolerances and clean slots in a wide range of materials. The 24-tooth configuration provides a balance of chip clearance and surface finish suitable for ferrous and non-ferrous workpieces. The bright, uncoated finish makes it well suited for applications where coating interaction with the workpiece material is a concern. Machinists and tool-and-die professionals rely on this type of cutter for keyway cutting, parting, and narrow groove work.

This saw is used in precision machining environments including job shops, toolrooms, and production facilities. It mounts to standard arbor-style saw mandrels with a 1/2-inch bore and is appropriate for slitting thin-wall tubing, cutting slots in metal stock, and similar close-tolerance milling operations. Its compact thickness of 1/16 inch makes it a practical choice when slot width is critical and material removal must be controlled carefully.

Key Features

• Solid carbide construction for rigidity and extended tool life in demanding cutting applications
• 2-inch blade diameter provides reach for typical slotting and slotting tasks on standard milling setups
• 1/16-inch blade thickness for precise, narrow slot generation
• 24 teeth deliver controlled chip load and acceptable surface finish across common workpiece materials
• Bright/uncoated finish suits applications where coating buildup or chemical interaction is undesirable
• 1/2-inch arbor hole for compatibility with standard saw mandrels

Compatibility

Designed for use with standard arbor-style saw mandrels accepting a 1/2-inch bore, as used on vertical milling machines and machining centers.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer guidelines. Ensure the spindle is fully stopped and the machine is powered down before mounting or removing the saw. Use a properly sized arbor mandrel, spacers, and retention hardware to secure the blade without over-torquing. Inspect the carbide blade for chipping or cracking before each use, as solid carbide is brittle and susceptible to damage from improper handling or interrupted cuts without adequate setup.
