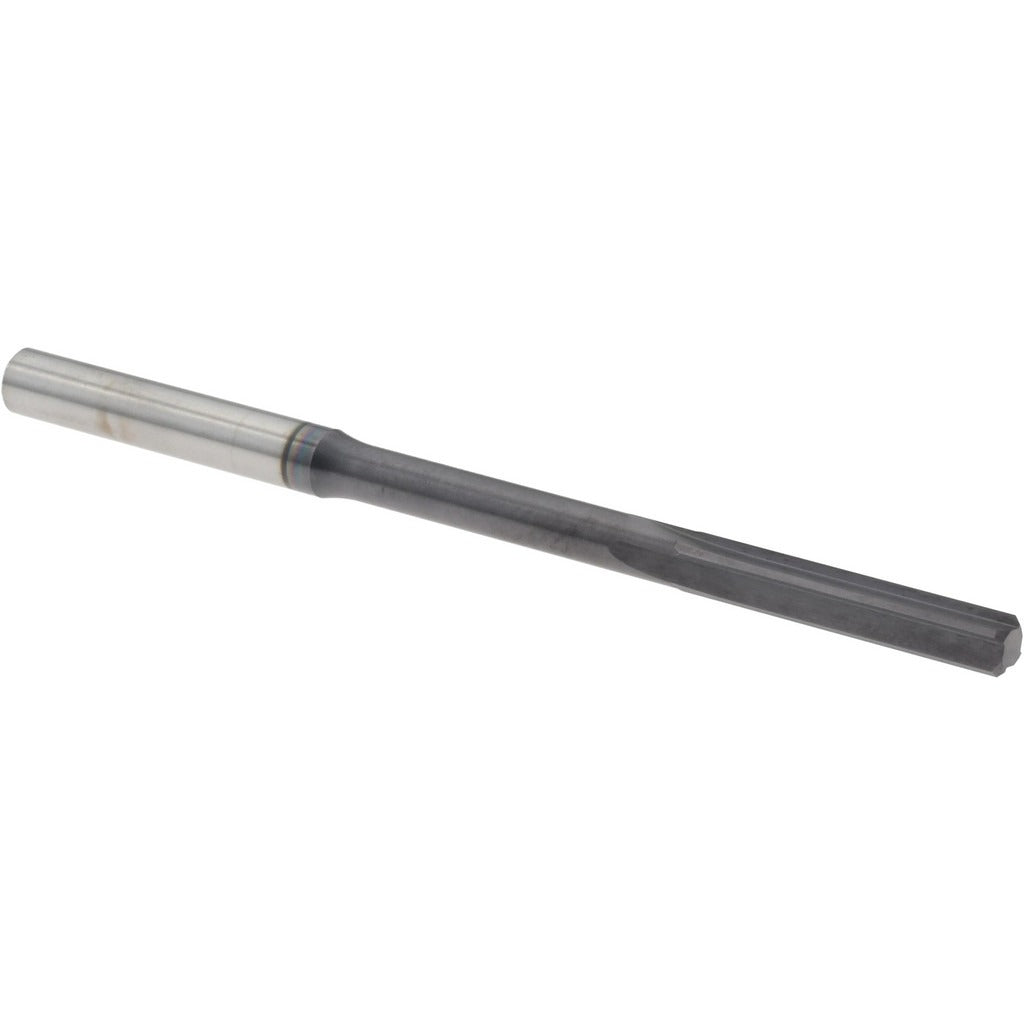

Harvey Tool RSB1580-C3 Chucking Reamer 0.1580 in Carbide

Product Description

The HARVEY TOOL RSB1580-C3 is a solid carbide chucking reamer designed for precise hole finishing in tight-tolerance machining applications. Built to 0.1580 inches in diameter with a diameter tolerance of +0.0002 to 0.0000 inches, this reamer holds exact sizing with minimal deviation. The 4-flute straight configuration with right-hand cutting direction provides clean, consistent stock removal. An AlTiN coating extends tool life in ferrous and high-temperature alloy materials. At 3 inches overall length with a 7/8 inch flute length and a straight-cylindrical shank, it is sized for use in CNC machining centers, drill presses, and manual lathes. Machinists and tool and die professionals are the primary users of this tool.

This reamer belongs to HARVEY TOOL's Miniature Reamers series, targeting applications that require precision bore sizing at small diameters in the 0.1500 to 0.1999 inch range. It is suited for holemaking and threading operations in production and job-shop environments where hole geometry and surface finish consistency are critical. The straight-cylindrical shank seats directly into standard collet chucks or drill chucks without adapters, making it straightforward to deploy on common machine setups.

Key Features

• Solid carbide construction for rigidity and wear resistance in precision reaming
• AlTiN coating for extended tool life in ferrous and high-heat cutting conditions
• Tight diameter tolerance of +0.0002 to 0.0000 inches for precise hole sizing
• 4-flute straight geometry with right-hand cutting direction for clean bore finishing
• Straight-cylindrical shank for direct chuck or collet mounting without adapters
• Miniature series sizing covers the 0.1500 to 0.1999 inch diameter range

Compatibility

Designed as an OEM-style replacement and standard cutting tool for machining setups requiring precision reaming at miniature diameters. Part of the HARVEY TOOL Miniature Reamers series for holemaking and threading operations.

Installation Notes

Installation and use should be performed by qualified machinists familiar with cutting tool setup and machine operation. Power down and lock out the spindle before seating or removing the reamer from the chuck or collet. Ensure the shank is fully seated and the chuck or collet is torqued to the machine manufacturer's specification before running. Do not exceed the recommended feed and speed parameters for the workpiece material and tool diameter.
