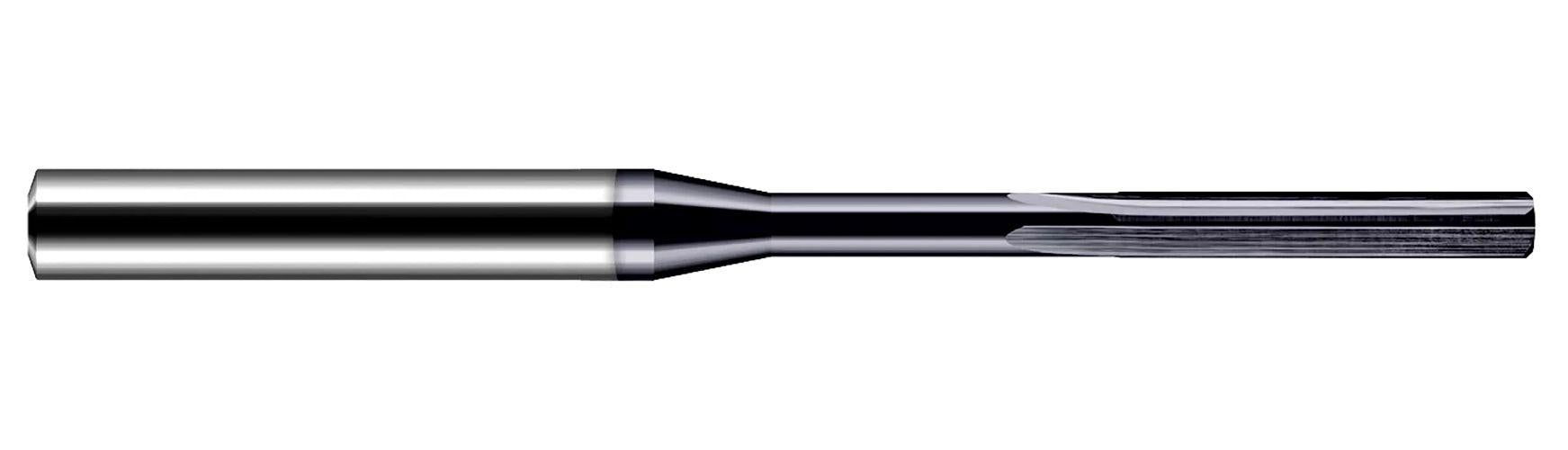

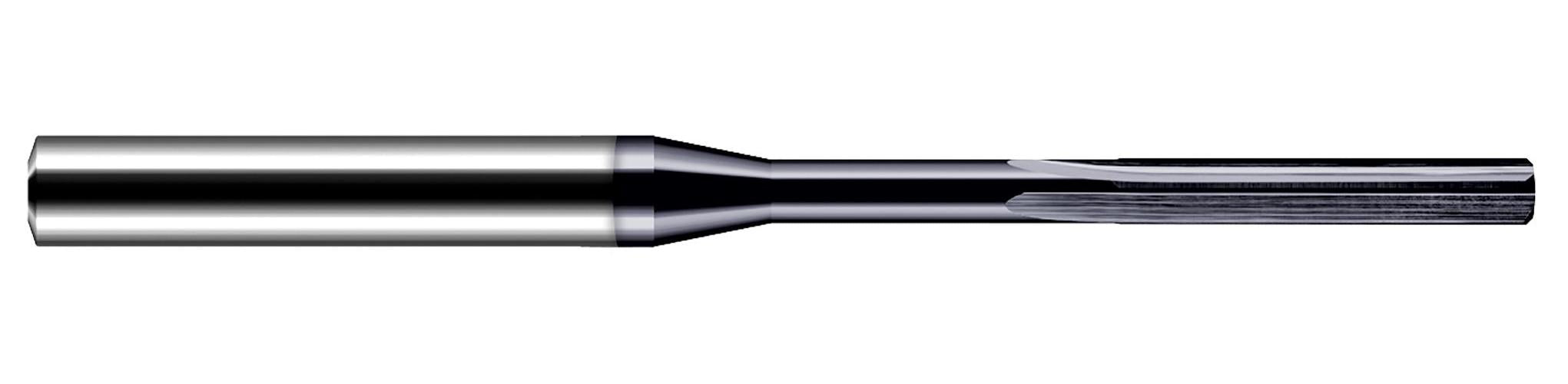

Harvey Tool RSB1265-C3 Miniature Reamer 0.1265 in Dia x 3 in OAL

Product Description

The Harvey Tool RSB1265-C3 is a miniature reamer designed for precision work. With a diameter of 0.1265 inches, this cutting tool is suitable for various applications in metalworking. The reamer features a total length of three inches and is designed with a straight flute configuration for effective performance.

• Coated with AlTiN for durability and reduced friction.
• Configured with four flutes for optimal cutting efficiency.
• Right-hand cutting direction suitable for a variety of materials.

Product Highlights

This carbide reamer excels in metalworking tasks, particularly in creating accurate holes in non-ferrous metals, cast iron, and composites.

Product Information

Standard Information

• Brand: Harvey Tool
• MPN: RSB1265-C3

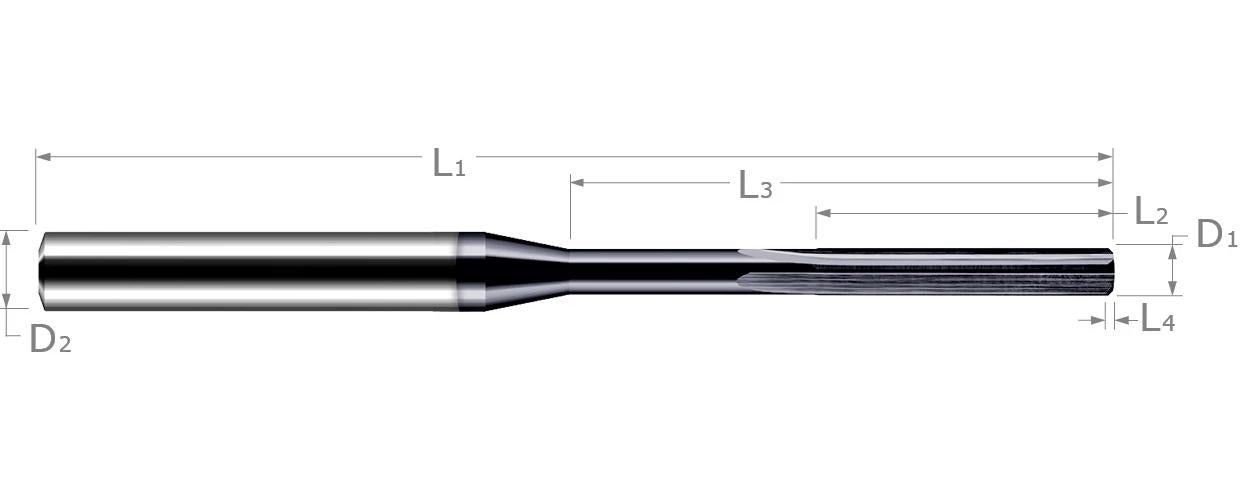

Technical Specifications

• Diameter: 0.1265 inches
• Cutter Length: 0.0114 inches
• Shank Diameter: 3/16 inches (0.1875 inches)
• Overall Length: 3 inches
• Material: Solid Carbide
• Coating/Finish: AlTiN
• Number of Flutes: 4
• Chamfer Length: 0.7500 inches
• Chamfer Angle: 45 degrees
• Reach Length: 1.5000 inches
