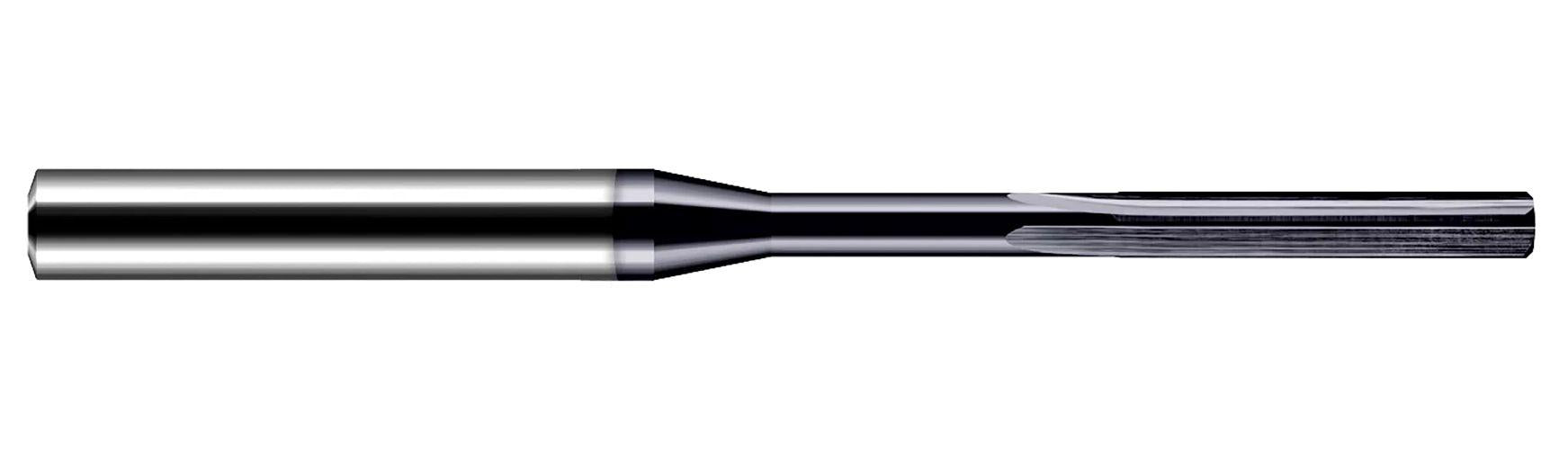

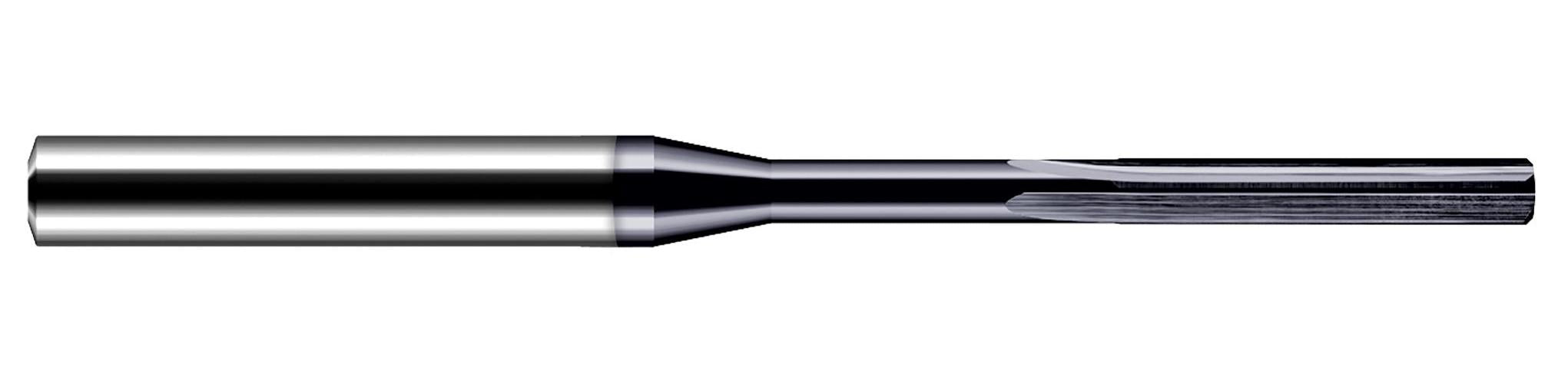

Harvey Tool RSB0930-C3 Miniature Reamer, 0.093 in Dia x 2-1/2 in OAL, 1/8 in Dia Shank

Product Description

The Harvey Tool RSB0930-C3 is a miniature reamer designed for precision drilling and reaming with a diameter of 0.093 inches and an overall length of two and a half inches. This tool is constructed from solid carbide and features four straight flutes for exceptional performance.

• Manufactured by Harvey Tool
• Coated with AlTiN for enhanced durability
• Right-hand cutting direction for efficient material removal

Product Highlights

This reamer is ideal for use in various materials such as non-ferrous metals, cast iron, stainless steel, and composites. It maintains high accuracy and strength, making it suitable for both through and blind hole applications.

Product Information

Standard Information

• Brand: Harvey Tool
• Part Number: RSB0930-C3

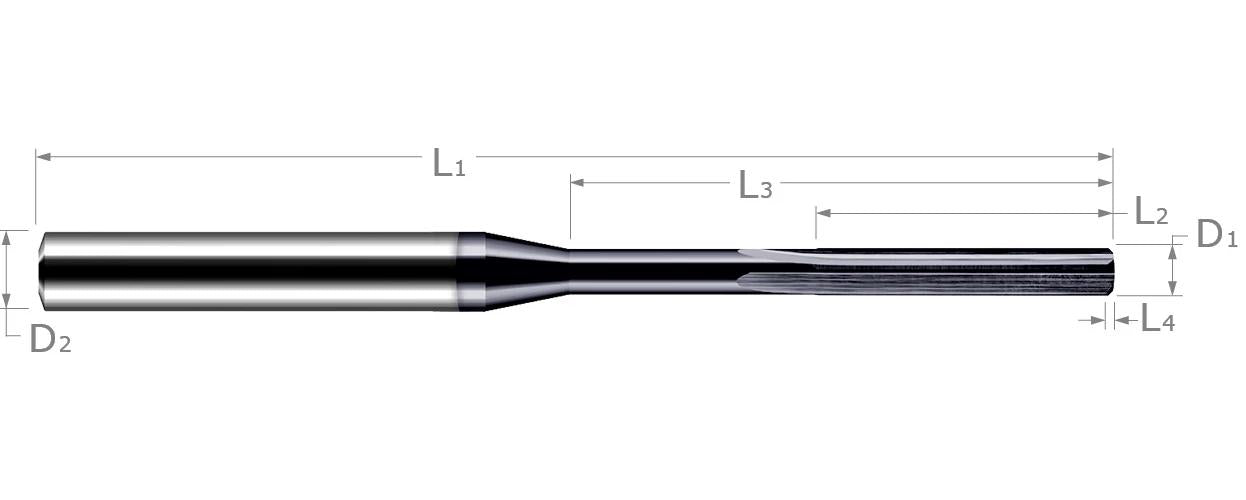

Technical Specifications

• Diameter: 0.093 inches
• Overall Length: 2.5 inches
• Shank Diameter: 1/8 inches
• Number of Flutes: 4
• Flute Length: 0.687 inches
• Material: Solid carbide
• Finish: AlTiN
• Chamfer Angle: 45 degrees
