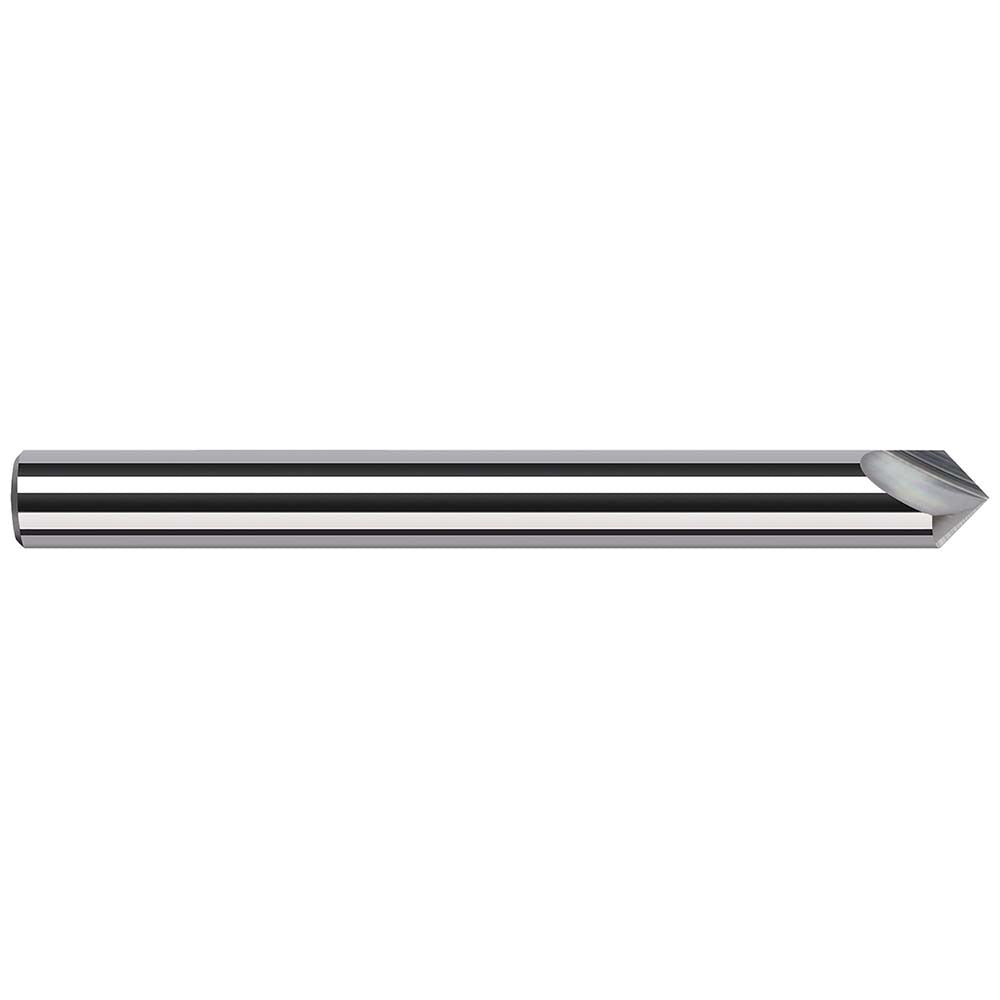

Harvey Tool 993215 Engraving Cutter 30 Deg 1/8 in Carbide

Product Description

The HARVEY TOOL 993215 is a solid carbide pointed engraving cutter designed for precision engraving and V-groove work in non-ferrous materials. Built with a 30-degree included angle and a 1/8 inch cutter diameter, this uncoated, right-hand cutting tool delivers sharp, clean entry into soft metals, plastics, and composites. The 2-flute geometry promotes efficient chip evacuation and consistent cut quality across fine detail work. With an overall length of 1.5 inches and a length of cut of 0.23 inches, it is well suited for CNC routing and engraving applications where tight tolerances and controlled depth are required. Machinists and CNC operators running non-ferrous stock will find this cutter a reliable choice for lettering, marking, and decorative engraving passes.

This cutter is intended for use on non-ferrous materials including aluminum, brass, copper, and plastics. It fits standard 1/8 inch collets and is commonly run on CNC routers, engraving machines, and vertical machining centers where fine-point detail work is required. The pointed tip geometry makes it appropriate for V-groove engraving, panel marking, and shallow contour passes. It is not designed for ferrous metals or hardened materials.

Key Features

• 30-degree included angle for precise V-groove and pointed engraving geometry
• 1/8 inch cutter diameter and 1/8 inch shank for compatibility with standard collet systems
• Solid carbide construction for rigidity and wear resistance in non-ferrous applications
• Uncoated finish suitable for aluminum, brass, copper, and plastics
• 2-flute right-hand cutting design promotes clean chip evacuation
• 0.23 inch length of cut with 1.5 inch overall length for controlled shallow engraving passes

Compatibility

Designed for use on non-ferrous materials. Fits standard 1/8 inch collet toolholders used on CNC routers and engraving machines. Not intended for ferrous metals or hardened workpieces.

Installation Notes

Installation and operation should be performed by qualified CNC machinists or toolroom technicians familiar with rotating cutting tool safety. Ensure the spindle is fully stopped and the machine is locked out before installing or removing the cutter. Seat the shank fully in the collet to the recommended engagement depth and torque the collet nut to the toolholder specification. Verify runout and tool projection before initiating the cutting program.
