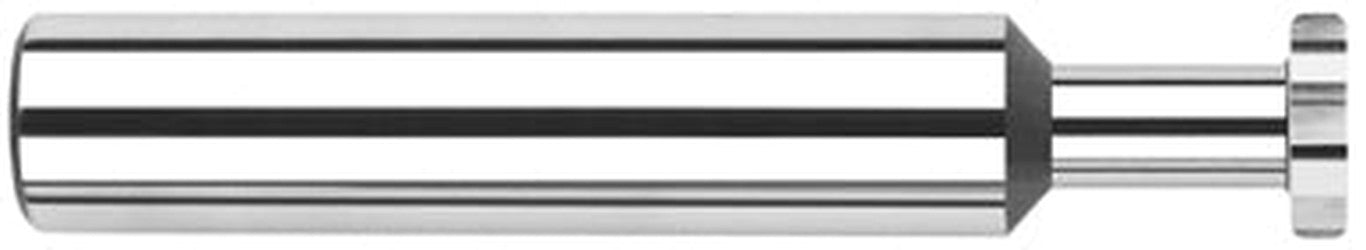

Harvey Tool 987750 HAR 1/2x3/32 R.010 CARB KEY CUTTER 1/2x3 NECK=1/4x3/4 T.115

Product Description

Harvey Tool offers the 987750 HAR 1/2x3/32 R.010 Carbide Key Cutter, designed for precision milling tasks. This cutter features a diameter of one half inch and is constructed from solid carbide for durability. It is effective in a wide range of materials, including aluminum and stainless steel.

• Diameter: 0.5000 inches (12.700 mm)
• Overall Length: 3.0000 inches (76.200 mm)
• Cut Width: 0.0930 inches

Product Highlights

The HAR 1/2x3/32 R.010 Cutter is ideal for creating accurate keyseats in various materials. Its neck length of three quarters inches allows for versatility in applications, while the corner radius enhances cutter strength.

Product Information

Standard Information

• Brand: Harvey Tool
• Material: Carbide

Technical Specifications

• Coating: Uncoated
• Number of Teeth: 8
• Corner Radius: 0.0100 inches
• Neck Diameter: 0.2500 inches (6.350 mm)
• Neck Length: 0.7500 inches (19.050 mm)
• Shank Diameter: 0.5000 inches (12.700 mm)
• Cutting Direction: Right Hand
• Reach Multiple: 1.5x
