Harvey Tool 987740-C3 HAR 1/2x5/64 R.010 CARB/ALTIN KEY CUTTER 1/2x3 NECK=1/4x3/4

Product Description

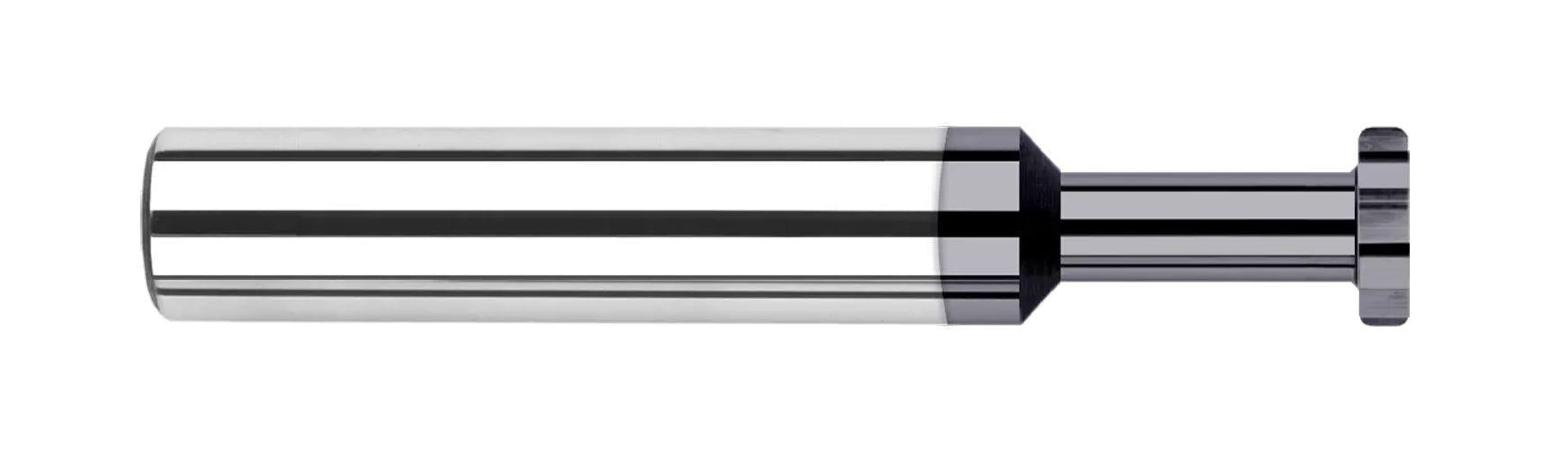

The Harvey Tool 987740-C3 is a keyseat cutter designed for milling applications. This solid carbide tool features an AlTiN coating for enhanced durability and performance. With a diameter of one half inch and an overall length of three inches, it is suitable for various machining tasks.

• Diameter of one half inch.
• Overall length of three inches with a cutting width of 0.078 inches.
• Constructed from solid carbide for better wear resistance.

Product Highlights

This keyseat cutter is ideal for cutting keyways in different materials. Use it in milling machines for tasks involving non-ferrous metals, stainless steel, and other composites.

Product Information

Standard Information

• Brand: Harvey Tool
• Material: Solid Carbide

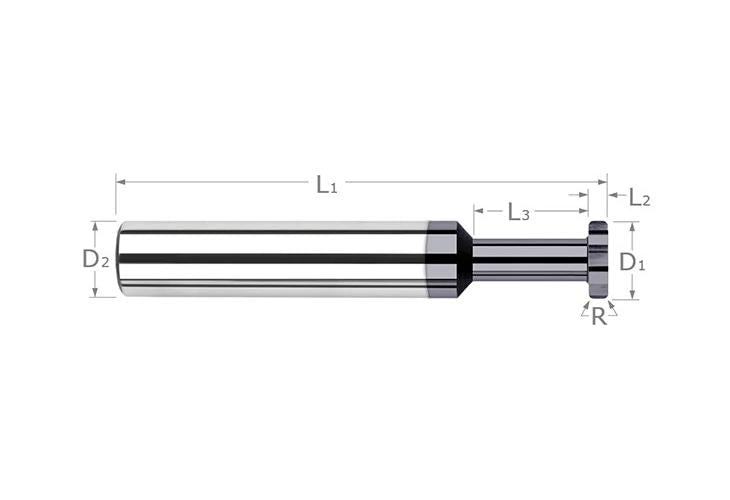

Technical Specifications

• Coating: AlTiN
• Diameter: 0.5000 inches (12.700 mm)
• Cut Width: 0.0780 inches (1.980 mm)
• Shank Diameter: 0.5000 inches (12.700 mm)
• Overall Length: 3.0000 inches (76.200 mm)
• No. Teeth: 8
• Corner Radius: 0.0100 inches
• Neck Diameter: 0.2500 inches (6.350 mm)
• Neck Length: 0.7500 inches (19.050 mm)
