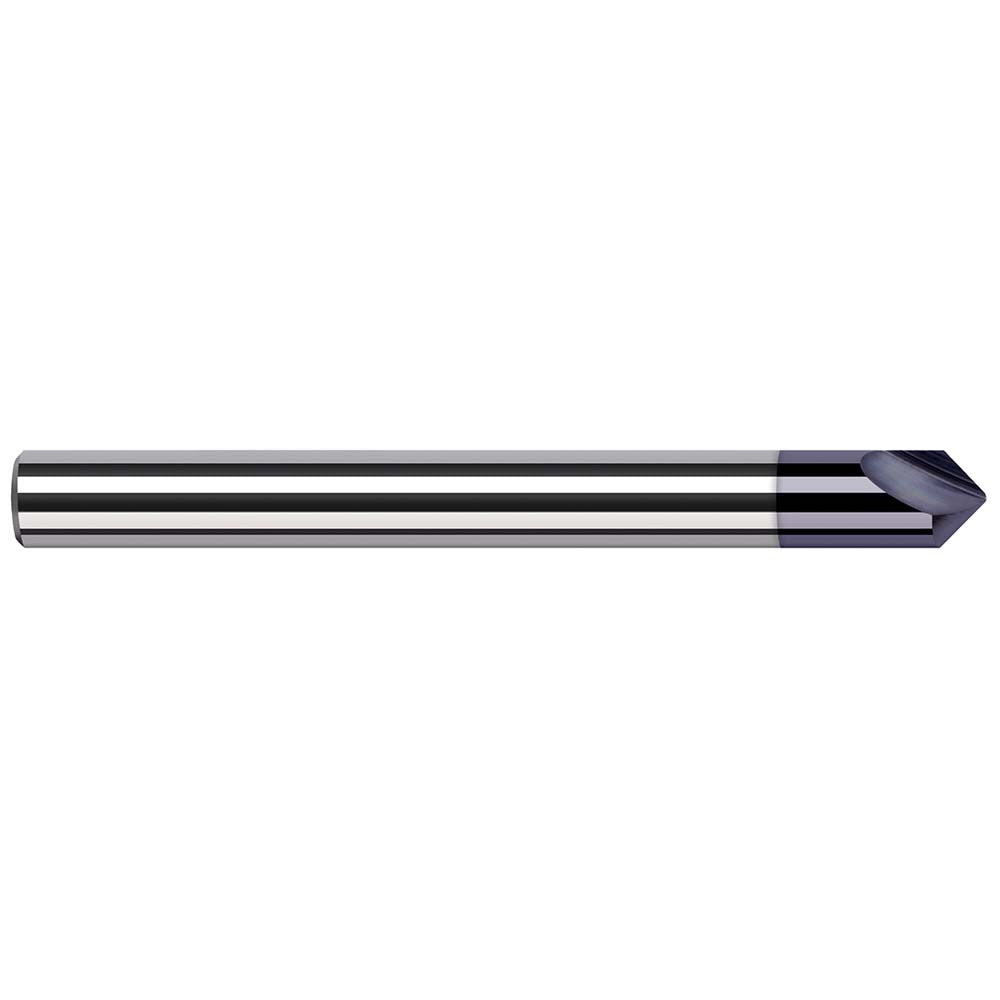

Harvey Tool 987630-C3 Engraving Cutter 60 Degree 1/8 in Altin

Product Description

The HARVEY TOOL 987630-C3 is a solid carbide engraving cutter designed for precision material removal in ferrous and non-ferrous metal applications. It features a 60-degree included angle with a tip radius point geometry, making it well suited for fine engraving, marking, and chamfering operations on metal workpieces. The cutter carries an AlTiN coating for improved heat resistance and extended tool life during high-speed cutting. With a 1/8 inch cutter diameter and a length of cut of 0.1033 inches, this two-flute right-hand cutter is built for tight-tolerance work on CNC machining centers and engraving machines.

This cutter is used in job shop, production, and tool room environments where precise engraving or marking on metal parts is required. It is appropriate for both ferrous metals such as steel and stainless, and non-ferrous metals such as aluminum, brass, and copper. The 1/8 inch shank diameter fits standard ER collets and engraving spindle toolholders commonly found in CNC routers and vertical machining centers. Machinists and CNC operators typically install this cutter for part number engraving, decorative marking, and edge chamfering on finished or semi-finished metal components.

Key Features

• 60-degree included angle with tip radius point geometry for fine engraving detail
• AlTiN coating for elevated heat resistance and extended tool life in metal cutting
• Solid carbide construction for rigidity and wear resistance
• Two right-hand flutes for efficient chip evacuation
• 1/8 inch shank fits standard ER collets and engraving toolholders
• Suitable for ferrous and non-ferrous metal applications

Compatibility

Designed for use on ferrous and non-ferrous metals. Fits CNC machining centers, engraving machines, and CNC routers equipped with a 1/8 inch collet or toolholder.

Installation Notes

Installation is performed by a qualified machinist or CNC operator. Power down and lock out the spindle before changing tooling. Seat the shank fully in the collet and torque the collet nut per the toolholder manufacturer's specification. Verify runout with a dial indicator before beginning production cuts, as excessive runout will accelerate wear on a small-diameter carbide cutter.
