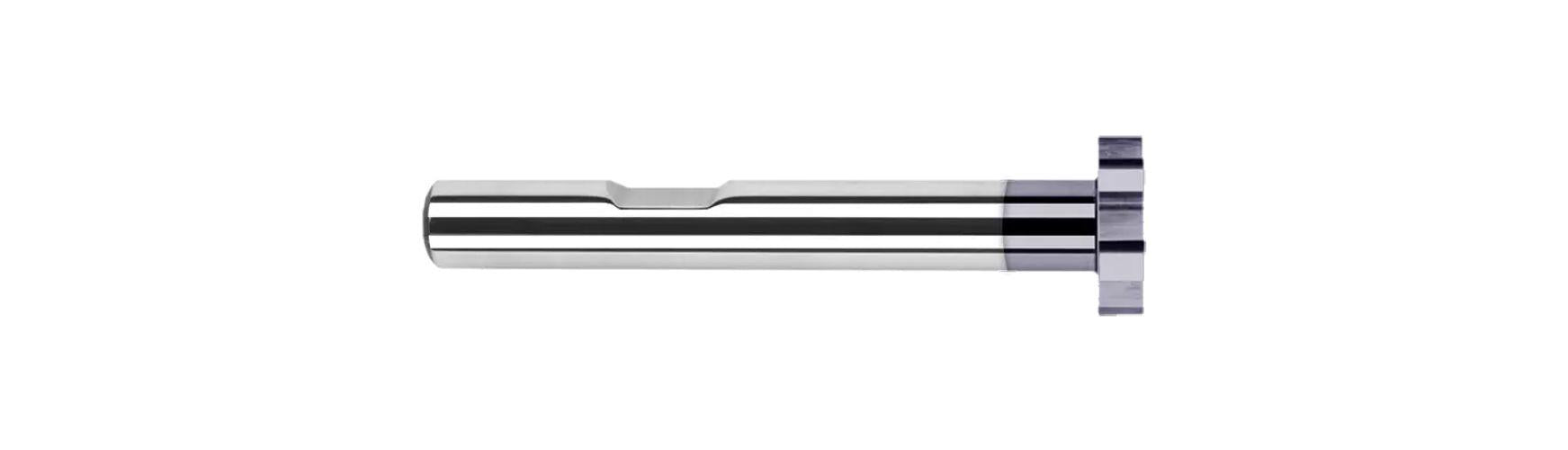

Harvey Tool 984570-C3 Deep Slotting Keyseat Cutter, 3/4 in Diameter Cutter, 0.25 in W Cutting, 3-1/4 in OAL, 3/8 in Dia Shank

Product Description

The Harvey Tool 984570-C3 is a deep slotting keyseat cutter designed for precision and efficiency. The product measures three-fourths inch in diameter and features a cutting width of one-quarter inch. It has an overall length of three and one-fourth inches and a three-eighths inch shank diameter.

• Solid carbide head brazed onto a steel shank
• Suitable for use with non-ferrous metals, cast iron, and stainless steel
• Designed for right-hand cutting direction

Product Highlights

This keyseat cutter is ideal for applications requiring precision in milling. The solid carbide construction provides durability, while the AlTiN coating offers increased wear resistance.

Product Information

Standard Information

• Brand: Harvey Tool
• Part #: 1-420-984570-C3

Technical Specifications

• Material: Solid Carbide
• Coating: AlTiN
• Diameter: 0.7500 (19.050 mm)
• Cut Width: 0.2500 (6.350 mm)
• Shank Diameter: 0.3750 (3/8)
• Overall Length: 3.2500 (82.550 mm)
• No. Teeth: 10
• Shank Type: Reduced
