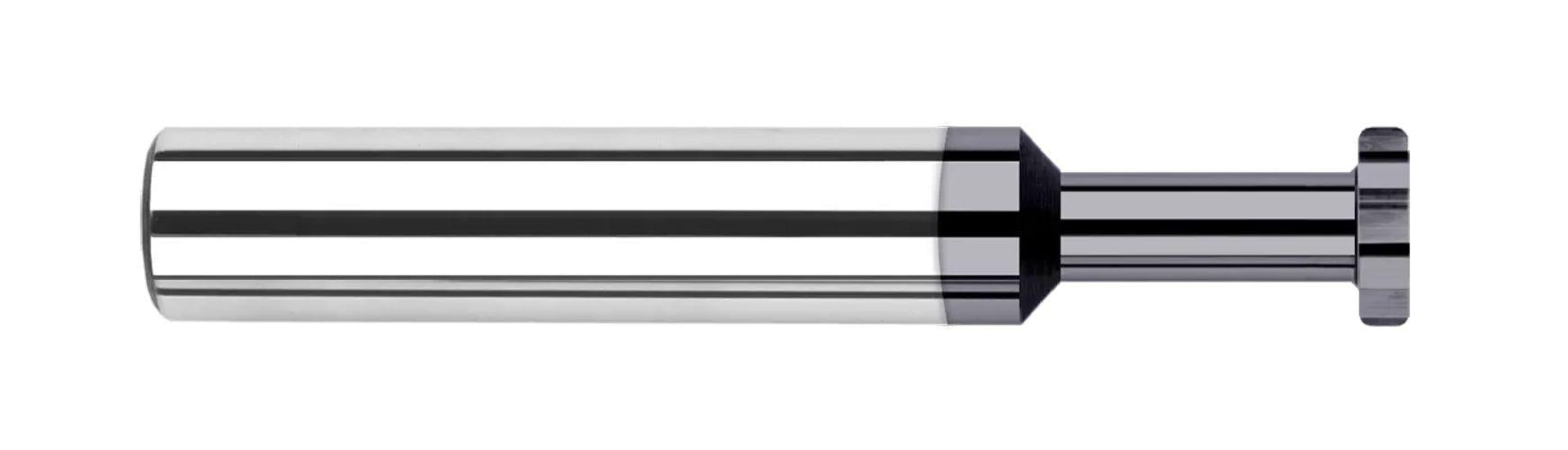

Harvey Tool 981650-C3 HAR 3/8x3/32 R.010 Carb/AlTiN Key Cutter

Product Description

The Harvey Tool 981650-C3 is a carbide key cutter designed for solid milling applications. This tool features a diameter of three eighths of an inch and is coated with AlTiN for durability. With an overall length of two and a half inches, this cutter is effective for various applications.

• Made from solid carbide material.
• Coating: AlTiN for longer tool life.
• Designed for standard slotting and keyseating.

Product Highlights

The Harvey Tool 981650-C3 is suitable for use in milling processes involving non-ferrous metals, cast iron, steel, and composites. This tool is ideal for creating keyways and slots with high precision.

Product Information

Standard Information

• Brand: Harvey Tool
• Part Number: 981650-C3

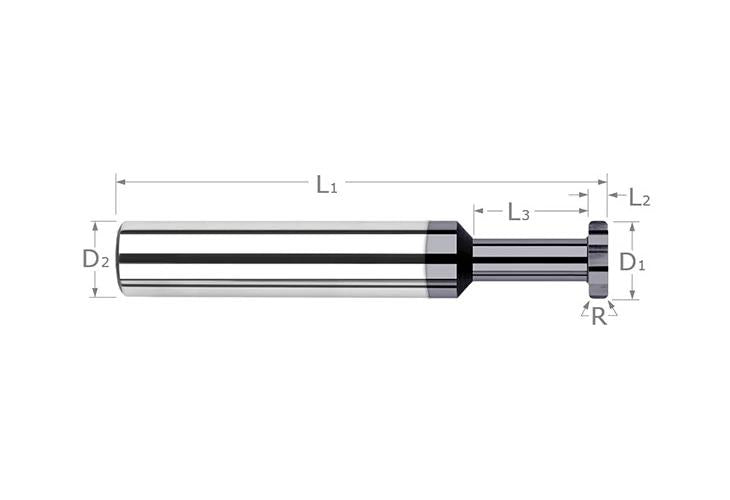

Technical Specifications

• Material: Carbide
• Coating: AlTiN
• Diameter: 0.3750 inches (3/8 inch)
• Cut Width: 0.0930 inches
• Shank Diameter: 0.3750 inches
• Overall Length: 2.5000 inches (63.500 mm)
• No. of Teeth: 8
• Corner Radius: 0.0100 inches
• Neck Diameter: 0.1870 inches (4.750 mm)
• Neck Length: 0.5620 inches (14.275 mm)
