Harvey Tool 979416-C3 Dovetail Cutter 1/4 in Dia Cutter 0.312 in W Cutting 1/4 in Dia Shank

Product Description

The Harvey Tool 979416-C3 is a corner radius dovetail cutter designed for precision milling tasks. This solid carbide cutter features a diameter of one quarter inch and an overall length of two inches. Its cutting width is zero point three one two inches with a sharp included angle of fourteen degrees.

• Size: 1/4 inch diameter cutter
• Material: Solid carbide with AlTiN coating
• Flutes: 2 for effective cutting

Product Highlights

This dovetail cutter is ideal for machining non-ferrous metals, stainless steel, and composites, making it a versatile tool in milling operations.

Product Information

Standard Information

• Brand: Harvey Tool
• MPN: 979416-C3

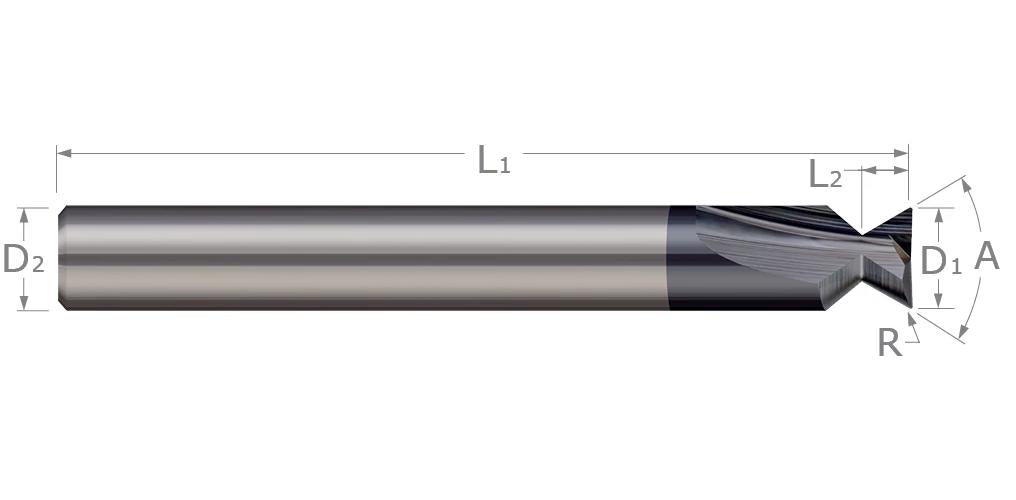

Technical Specifications

• Diameter: 0.2500 inches (6.350 mm)
• Shank Diameter: 0.2500 inches (6.350 mm)
• Overall Length: 2.0000 inches (50.800 mm)
• Cut Length: 0.3120 inches
• Corner Radius: 0.0100 inches
• Neck Diameter: 0.1760 inches (4.470 mm)
• Angle: 14 degrees
• Teeth: 2
