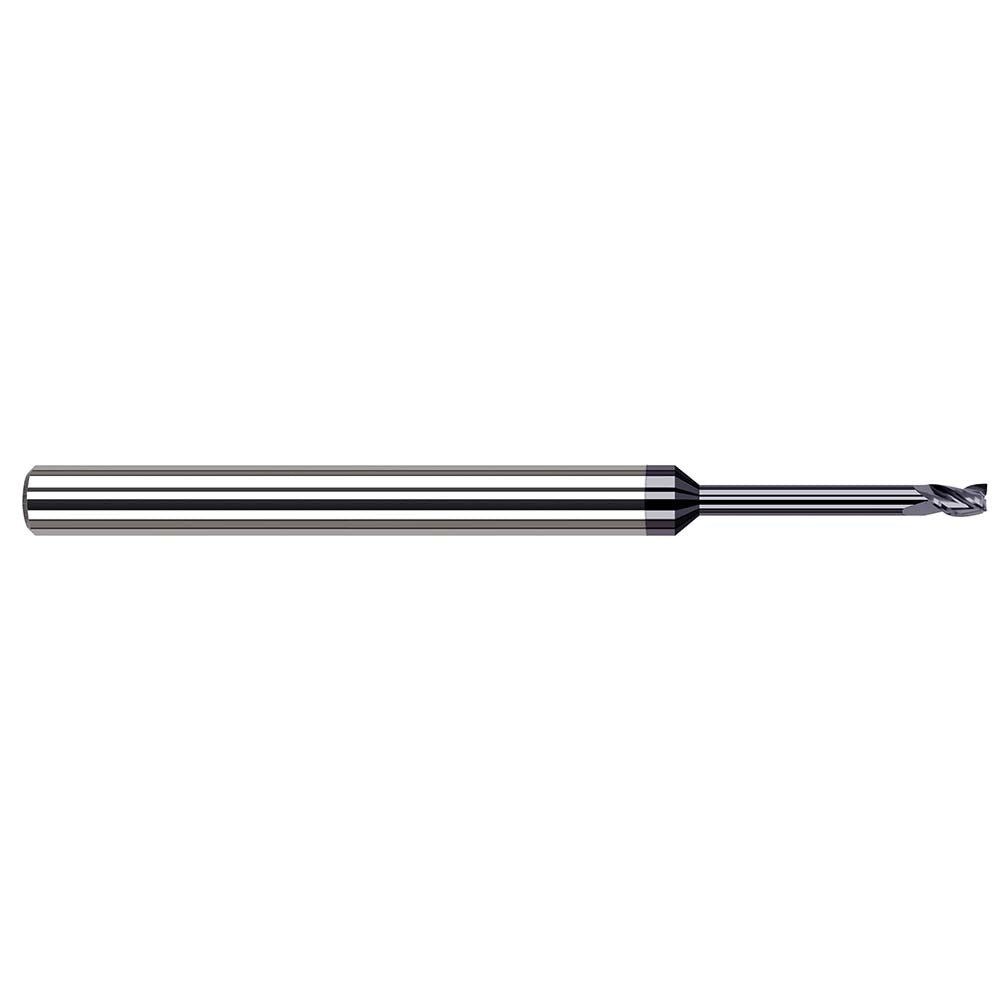

Harvey Tool 978262-C6 Square End Mill 1/16 in 3 Flute

Product Description

The HARVEY TOOL 978262-C6 is a solid carbide square end mill designed for high-performance milling in demanding materials. With a 1/16 inch (0.0625 inch) cutting diameter and a 3/32 inch (0.093 inch) length of cut, this tool is built for precision work in tight geometries. The three-flute configuration balances chip evacuation and cutting stability. An AlTiN coating provides elevated heat resistance and extended tool life when machining hardened steels, stainless, and high-temp alloys. The variable 34-degree helix reduces chatter and improves surface finish. Single-end design with a 1/8 inch shank makes it compatible with standard collet systems used in CNC machining centers and manual mills.

This end mill is suited for finish milling, slotting, and profiling operations in aerospace, medical, mold and die, and general precision machining environments. The extended reach configuration, with a 1/2 inch reach length and 2-1/2 inch overall length, allows access to features requiring clearance beyond standard stub-length tooling. It is center-cutting and right-hand cutting with right-hand flute direction, making it a drop-in fit for conventional CNC vertical machining center setups. Machinists working with tight-tolerance features in difficult materials will find the AlTiN coating and variable helix geometry especially useful.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard materials
• AlTiN coating for high heat resistance and extended tool life
• Variable 34-degree helix reduces chatter and improves finish quality
• Three-flute design balances chip clearance with cutting edge strength
• Center-cutting geometry allows plunge entry
• Extended reach at 1/2 inch reach length for access to deeper features

Compatibility

Designed for use in standard 1/8 inch collet systems on CNC machining centers, manual mills, and high-speed spindles where a right-hand, single-end square end mill is required.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the spindle is fully powered down and the tool changer or collet is properly released before inserting or removing the tool. Use a calibrated torque wrench and the appropriate collet nut wrench when securing the 1/8 inch shank to avoid runout. Confirm tool projection and reach clearance in the program before running the first part.
