Harvey Tool 975760-C3 HAR 1/2x1/8 CARB/ALTIN KEY CUTTER 1/2x3 NECK=5/32x1/2

Product Description

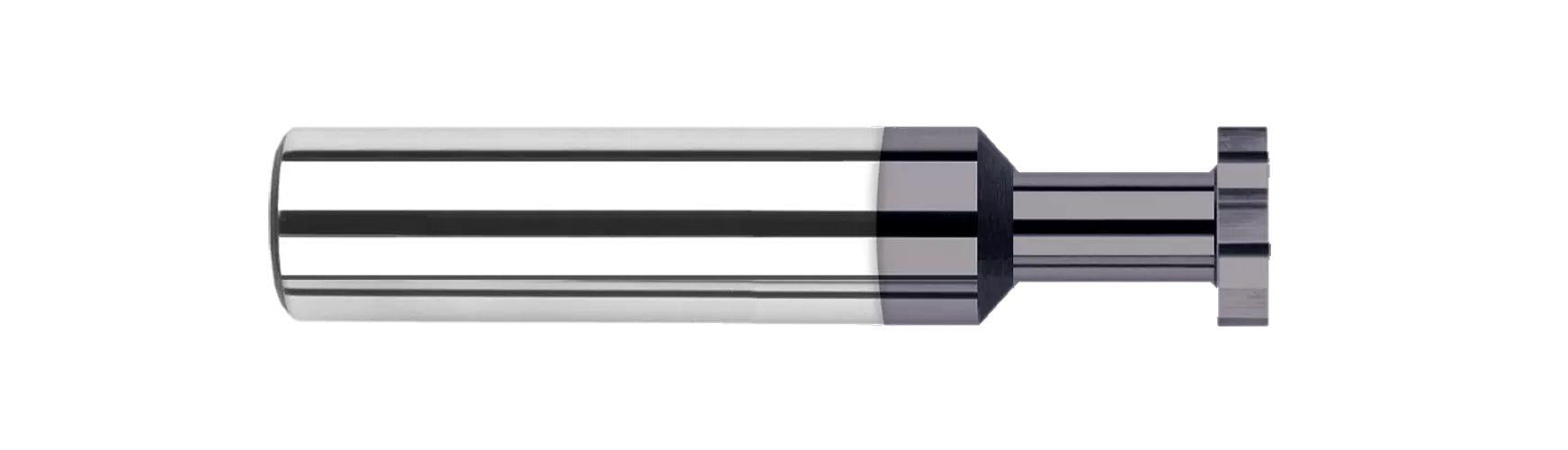

The Harvey Tool 975760-C3 is a keyseat cutter designed for deep slotting. It features a half-inch diameter cutter with a cutting width of one-eighth inch and an overall length of three inches. Constructed from carbide and coated with AlTiN, this tool is ideal for precision machining. This cutter supports right-hand cutting direction and a cylindrical shank connection.

• Diameter: 0.5000 inches (12.700 mm)
• Cut Width: 0.1250 inches (3.175 mm)
• No. of Teeth: 8

Product Highlights

The Harvey Tool 975760-C3 is engineered for effective deep slotting in various materials. Its design includes dished sides for clearance, accommodating a wide range of applications.

Product Information

Standard Information

• Brand: Harvey Tool
• Material: Solid Carbide

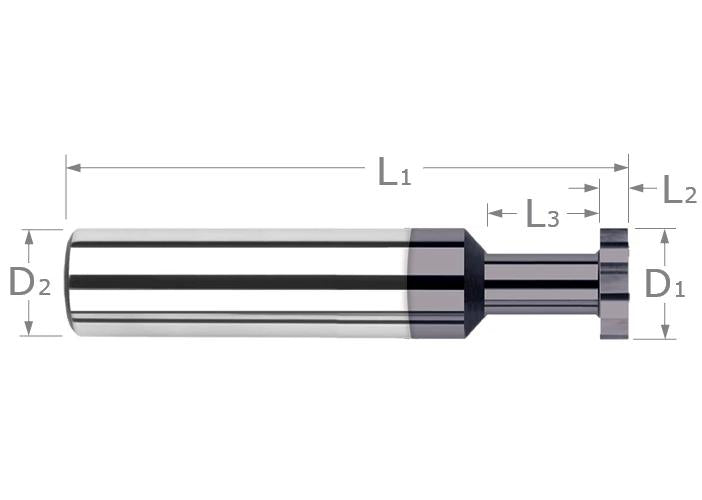

Technical Specifications

• Coating: AlTiN
• Overall Length: 3 inches
• Shank Diameter: 0.5000 inches
• Neck Diameter: 0.1560 inches
• Neck Length: 0.5000 inches
• Type: Deep Slotting
• Flutes: 8
• Cutting Direction: Right Hand
