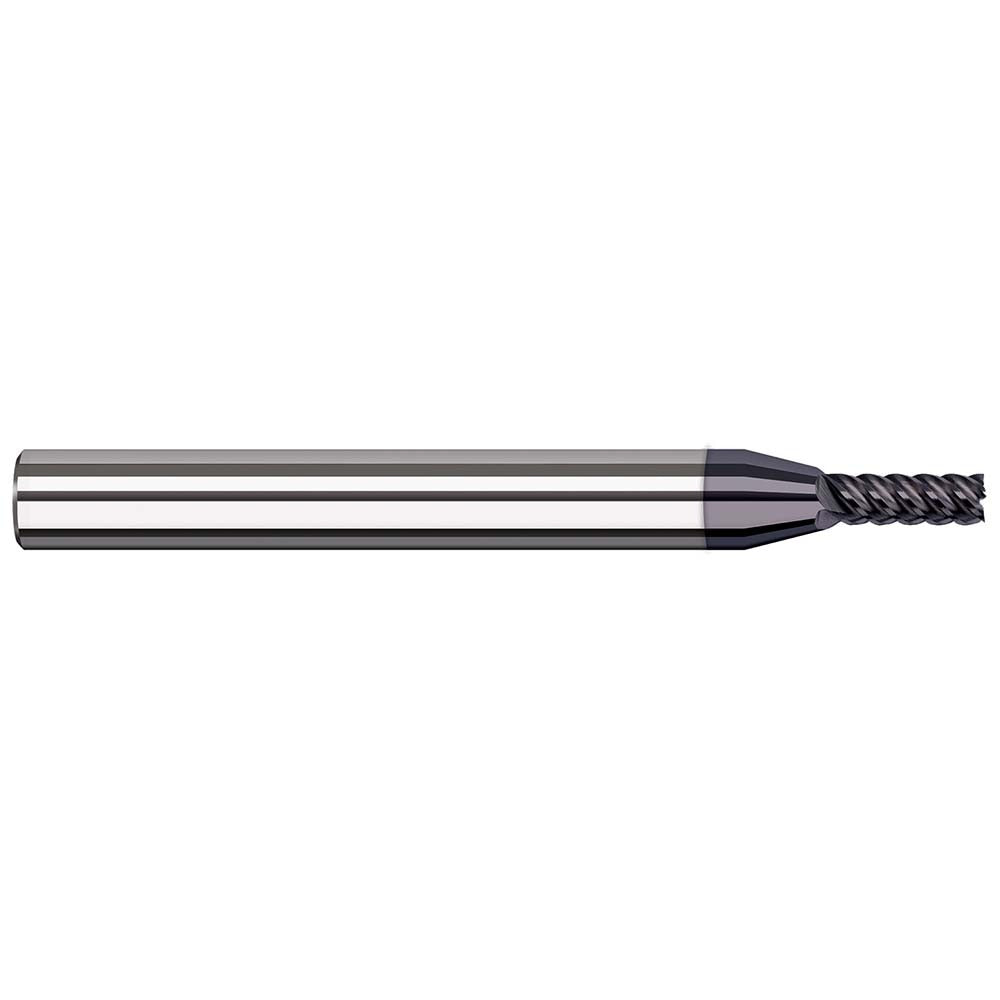

Harvey Tool 967893-C3 Square End Mill 3/32 in 5 Flute Carbide

Product Description

The HARVEY TOOL 967893-C3 is a solid carbide square end mill designed for precision milling in demanding machining environments. With a 3/32 inch (0.0930 inch) mill diameter and a 0.279 inch length of cut, this tool is built for tight-tolerance work in small-feature applications. It runs a 5-flute geometry with a 47-degree variable helix angle, which helps reduce chatter and improve chip evacuation at higher feed rates. An AlTiN coating adds heat and wear resistance, extending tool life in ferrous and hardened materials. This end mill is a single-end, right-hand cut and right-hand flute design installed by machinists and CNC operators in production and job shop settings.

This end mill is suited for milling small slots, pockets, and contours in steel, stainless, and other difficult-to-machine alloys where a small-diameter, high-flute-count tool is required. The 1/8 inch shank diameter fits standard collets and toolholders commonly found on vertical machining centers and CNC routers. At 1.5 inches overall length, it is compact enough for applications with limited Z-axis clearance. Note that this tool is not centercutting and is not designed for plunge entry.

Key Features

• 3/32 inch mill diameter with 0.279 inch length of cut for small-feature precision work
• 5-flute design increases material removal rate compared to standard 4-flute tooling
• 47-degree variable helix reduces harmonic vibration and chatter during cut
• AlTiN coating provides elevated heat resistance and extended tool life in ferrous materials
• Solid carbide construction delivers rigidity and wear resistance in hardened workpieces
• Right-hand cut and flute direction; not centercutting — requires side entry or ramping

Compatibility

Designed for use in CNC machining centers and milling machines accepting a 1/8 inch shank diameter via ER collets or compatible toolholders. Intended for milling ferrous metals, stainless steels, and similar hard materials where AlTiN-coated carbide tooling is appropriate.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is in a safe state before loading or removing the tool. Seat the 1/8 inch shank fully in a clean, undamaged collet or toolholder and tighten to the toolholder manufacturer's specification. Because this tool is not centercutting, do not program direct plunge moves — use ramp or helical entry paths to engage the workpiece.
