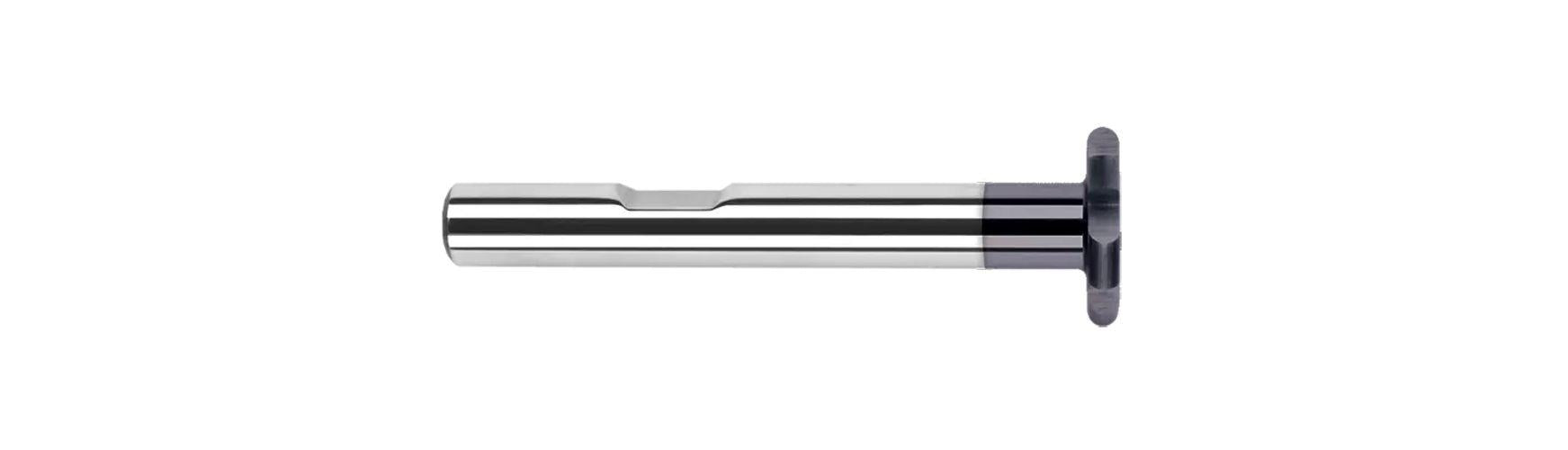

Harvey Tool 965431-C3 HAR 3/4x1/16 Deep Slot Keyseat Cutter AlTiN Full Rad

Product Description

The Harvey Tool 965431-C3 is a deep slot keyseat cutter designed for precision machining. With a diameter of three-fourths of an inch and a cutting width of zero point zero six two inches, this tool is ideal for various applications, such as milling keyseats in mechanical assemblies.

• Material: Solid Carbide with Steel Shank
• Coating: AlTiN for improved tool life
• Overall Length: Three and one-sixteenth inches

Product Highlights

This cutter features a right-hand cutting direction and is suitable for use on materials like steel and stainless steel, making it versatile for different milling tasks.

Product Information

Standard Information

• Type: Deep Slotting
• Connection Type: Shank

Technical Specifications

• Diameter: 0.7500 inches (19.050 mm)
• Cut Width: 0.0620 inches (1.575 mm)
• Shank Diameter: 0.3750 inches (3/8)
• Overall Length: 3.0620 inches
• Radius: 0.0312 inches
• Flutes: 6
• Double Ended: No
