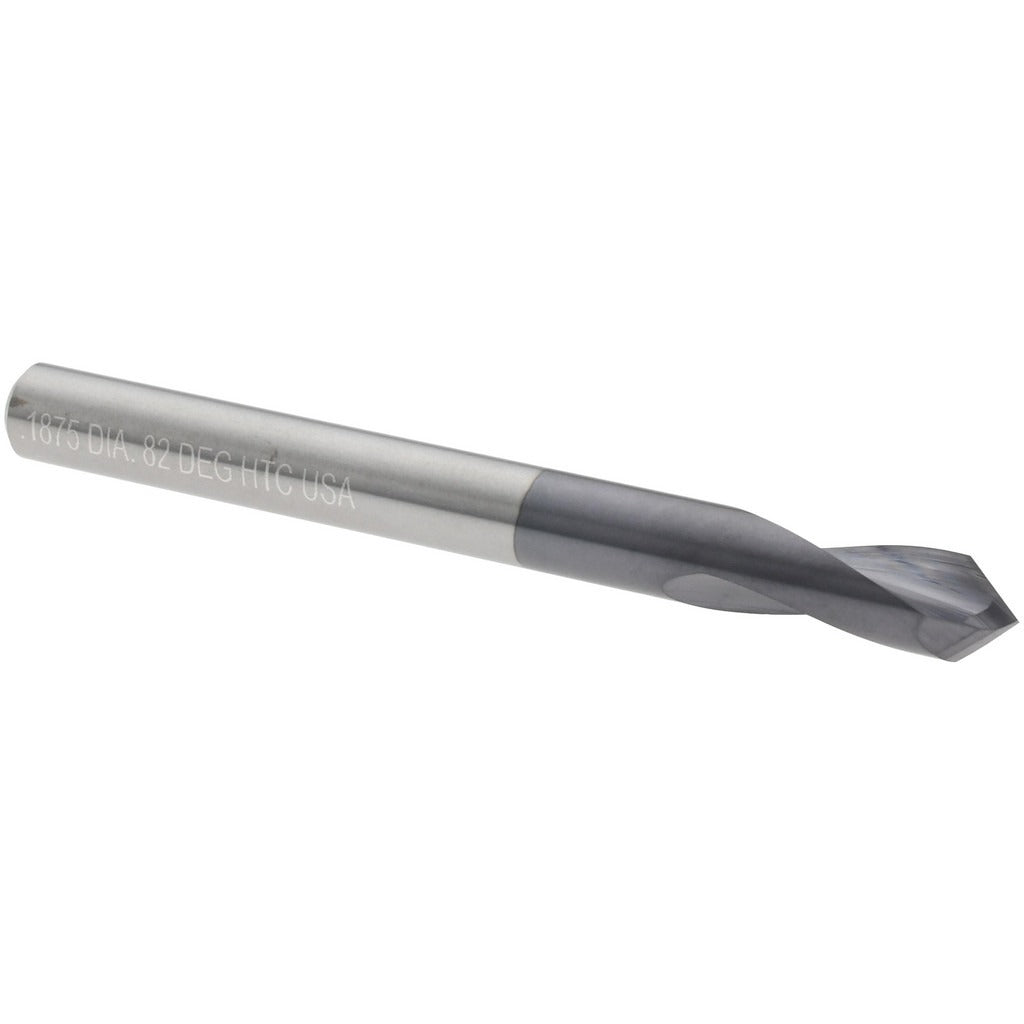

Harvey Tool 965212-C3 Spotting Drill 3/16 in Carbide

Product Description

The HARVEY TOOL 965212-C3 is a solid carbide spotting drill designed to accurately locate and start holes before finish drilling operations. With a 3/16 inch cutting diameter and an 82-degree point angle, this tool creates a precise center mark that guides twist drills, reducing walkout and positional error. The Harvey Type II point geometry and AlTiN coating help the tool resist heat and wear during repeated use. At 2 inches overall length and 0.625 inch flute length, it is compact enough for close-tolerance work on CNC machining centers and drill presses alike. Licensed machinists and toolroom operators are the primary users.

This spotting drill is suited for general-purpose metal removal applications in production and job-shop environments. The right-hand spiral flute design and straight cylindrical shank make it compatible with standard collet chucks and drill chucks. It performs on a wide range of materials commonly encountered in machining, including steel, aluminum, and similar metals where AlTiN coatings deliver the best thermal resistance. The single-ended, 2-flute configuration keeps chip evacuation predictable during shallow spotting passes.

Key Features

• 82-degree point angle for accurate hole location before drilling
• Harvey Type II point geometry reduces chisel-edge engagement and walking
• AlTiN coating extends tool life in ferrous and high-heat applications
• Solid carbide construction provides rigidity and dimensional stability
• Right-hand spiral flute design promotes reliable chip clearance
• Straight cylindrical shank fits standard collet and drill chuck systems

Compatibility

Designed as a general-purpose spotting drill for use in standard CNC machining centers, manual drill presses, and similar machine tool setups where a 3/16 inch straight-shank tool is required.

Installation Notes

Installation and use should be performed by qualified machinists familiar with cutting tool practices. Secure the shank fully in the collet or chuck and verify runout before operation. Ensure the spindle is fully stopped before tool changes. Follow the machine manufacturer and OSHA guidelines for appropriate speeds, feeds, and personal protective equipment when operating carbide cutting tools.
