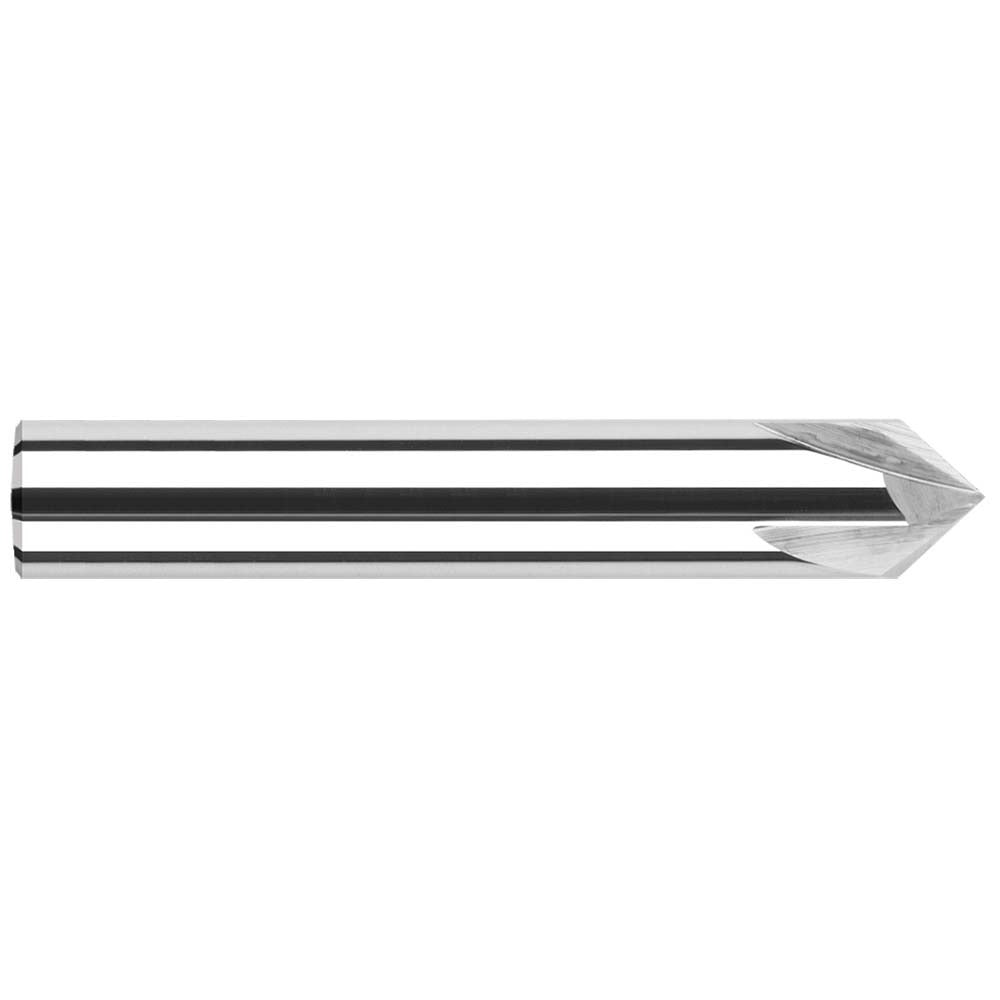

Harvey Tool 960441 Chamfer Mill 1/2 in 2 Flute Solid Carbide

Product Description

The HARVEY TOOL 960441 is a solid carbide chamfer mill designed for deburring, chamfering, and edge-breaking operations on machined components. With a 1/2 inch cutter head diameter and a 2-flute, right-hand cutting geometry, this tool delivers clean, accurate chamfers in a single pass. The bright/uncoated finish makes it well suited for use on a broad range of base materials. At 3 inches overall length with a 1/2 inch shank diameter, it mounts directly in standard end mill holders and collet chucks found on CNC machining centers and manual mills alike. The 82/98 degree included angle accommodates common chamfer and countersink requirements.

This chamfer mill is used in precision machining environments including job shops, aerospace component manufacturing, mold and die work, and general metalworking. It is appropriate for chamfering through-holes, cross-holes, and part edges on ferrous and non-ferrous workpieces. The single-end configuration and solid carbide construction make it a reliable choice for high-speed spindle applications where rigidity and dimensional consistency are required. Machinists and CNC operators select this tool for finishing operations where controlled edge geometry matters.

Key Features

• Solid carbide construction for rigidity and wear resistance at elevated cutting speeds
• 2-flute, right-hand cutting geometry for clean chip evacuation
• 82/98 degree included angle covers common chamfer and countersink requirements
• Bright/uncoated finish compatible with a wide range of workpiece materials
• 1/2 inch shank diameter fits standard collet chucks and end mill holders
• 0.288 inch length of cut for controlled chamfer depth per pass

Compatibility

Designed as a direct-mount chamfer mill for use in standard 1/2 inch collet chucks and end mill holders on CNC machining centers and manual milling machines.

Installation Notes

Installation is performed by qualified machinists or CNC operators. Secure the 1/2 inch shank in a properly sized collet or end mill holder and verify runout before beginning a cut. Ensure the spindle is fully stopped and the machine is in a safe state before tool changes. Follow the machine manufacturer and tooling manufacturer guidelines for recommended speeds, feeds, and depth of cut for the specific workpiece material.
