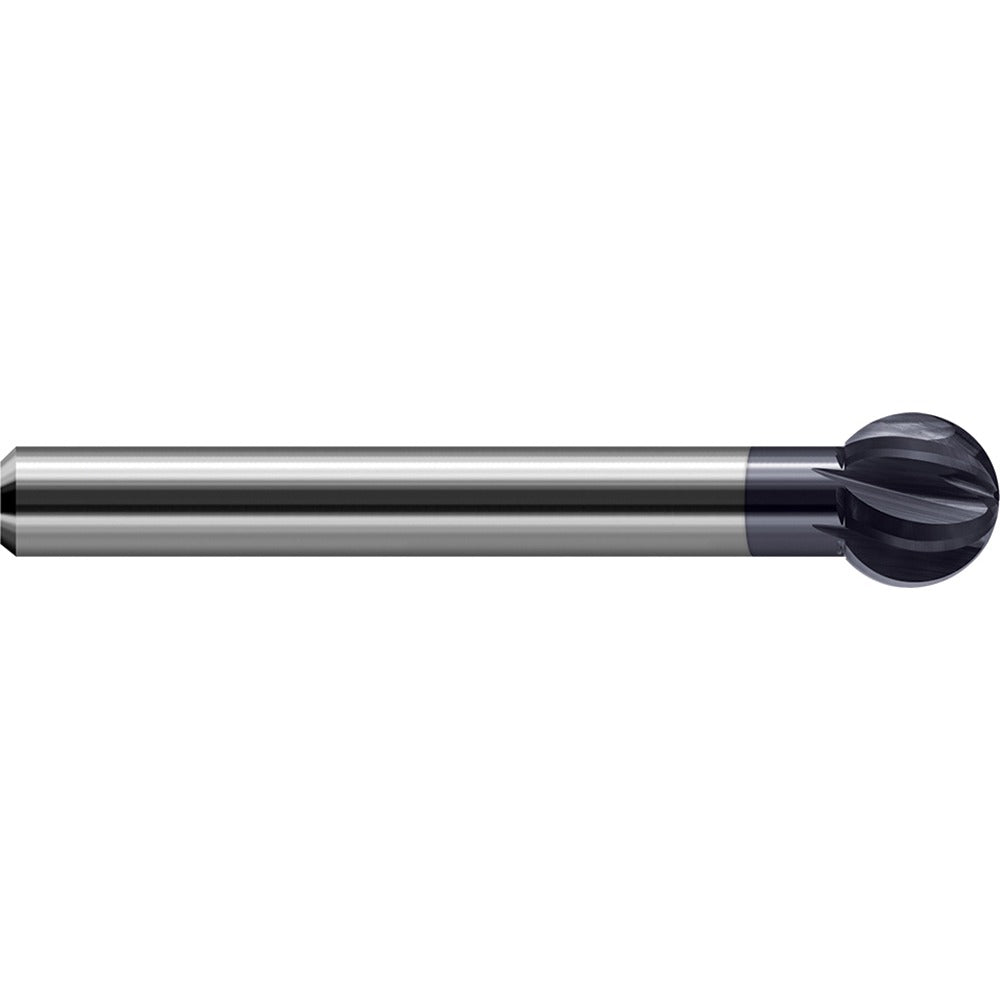

Harvey Tool 956132-C3 Ball End Mill 0.5 in 6 Flute Solid Carbide

Product Description

The HARVEY TOOL 956132-C3 is a solid carbide ball end mill designed for precision milling operations in metal, composite, and hardened material applications. It features a 0.5-inch cutting diameter and a 0.432-inch length of cut, with 6 flutes to promote efficient chip evacuation and a superior surface finish. The AlTiN coating increases surface hardness and thermal resistance, extending tool life in high-heat cutting environments. With a 4-inch overall length and a 5/16-inch shank diameter, this single-end tool is suited for use in CNC machining centers and manual mills where tight tolerances and consistent results are required.

This ball end mill is intended for machining centers operating on ferrous metals, stainless steels, high-temperature alloys, and hardened steels. It is commonly used in tool-and-die, mold making, aerospace component machining, and precision job shop environments. The 6-flute geometry supports higher feed rates at reduced depths of cut, making it well suited for finishing passes and semi-finishing operations where surface quality is a priority.

Key Features

• 0.5-inch ball end cutting diameter for accurate profiling and contouring
• 0.432-inch length of cut suitable for shallow-to-moderate depth finishing work
• 6-flute design supports higher feed rates and improved surface finish
• AlTiN coating provides thermal resistance and extended tool life in ferrous and high-temp alloy cutting
• Solid carbide construction delivers rigidity and wear resistance
• Single-end design with 5/16-inch shank for standard collet and end mill holder compatibility

Compatibility

Designed as a standard solid carbide ball end mill for use in CNC machining centers and manual mills accepting a 5/16-inch shank. No specific model compatibility was stated in the product data.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully powered down and at rest before loading or removing the tool. Seat the shank fully into a clean, undamaged collet or end mill holder and torque the retention mechanism according to the toolholder manufacturer specifications. Inspect the cutting edges and coating for chips or damage before each use.
