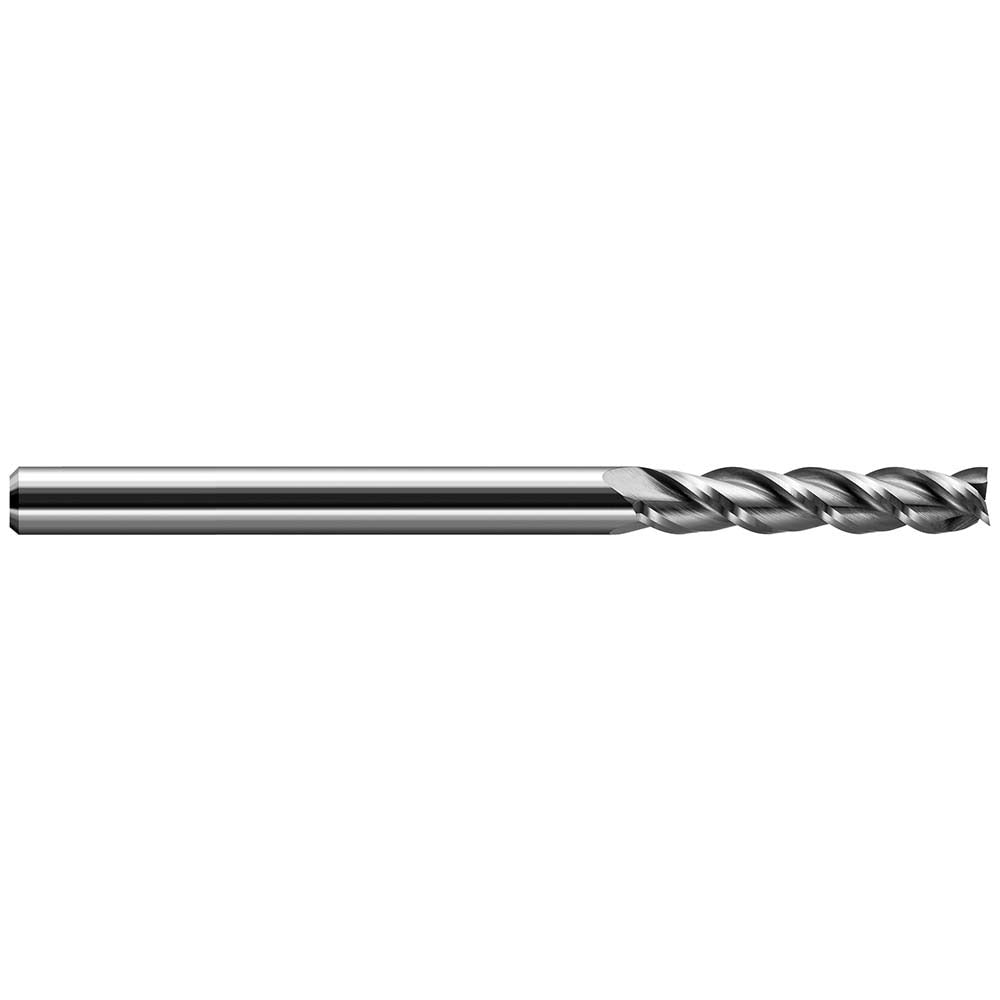

Harvey Tool 941310 Square End Mill 5/32 in 3 Flute Carbide

Product Description

The HARVEY TOOL 941310 is a solid carbide square end mill designed for precise milling operations in metalworking and machining applications. With a cutter diameter of 5/32 inches (0.1562 inches), a 3/4-inch length of cut, and a 3-inch overall length, this single-end tool is built for controlled stock removal in tight geometries. The 3-flute upcut configuration balances chip evacuation with surface finish quality. Right-hand cutting direction and a bright uncoated finish make it suitable for a range of ferrous and non-ferrous workpiece materials. Machinists and CNC programmers select this geometry when working in slots, pockets, and profiling passes at smaller diameters.

This end mill is suited for use in vertical machining centers, CNC knee mills, and manual milling machines where small-diameter tooling is required. The 3/16-inch shank diameter fits standard collets and end mill holders commonly found in shop environments. The 40-degree helix angle promotes smooth cutting action and reduced chatter, making it a practical choice for finishing passes or work in aluminum, brass, steel, and similar materials. It is typically installed and operated by machinists, tool-and-die makers, and CNC setup technicians.

Key Features

• 5/32-inch (0.1562-inch) cutter diameter for small-feature milling
• 3/4-inch length of cut allows adequate depth in slots and pockets
• 3-flute upcut geometry balances chip removal and finish quality
• 40-degree helix angle reduces chatter and improves cutting smoothness
• Solid carbide construction provides rigidity and wear resistance
• Bright uncoated finish suitable for general-purpose machining applications

Compatibility

Designed as a general-purpose replacement or production end mill for use in standard collet chucks and end mill holders accepting a 3/16-inch shank diameter.

Installation Notes

Installation should be performed by a qualified machinist or CNC technician with the machine powered down and locked out before tooling changes. Seat the shank fully into the collet or holder and torque the retention mechanism per the machine manufacturer specifications. Inspect the cutting edges for chips or damage before each use. Always verify spindle speed and feed rate settings against the tool manufacturer recommendations for the workpiece material before initiating a cut.
