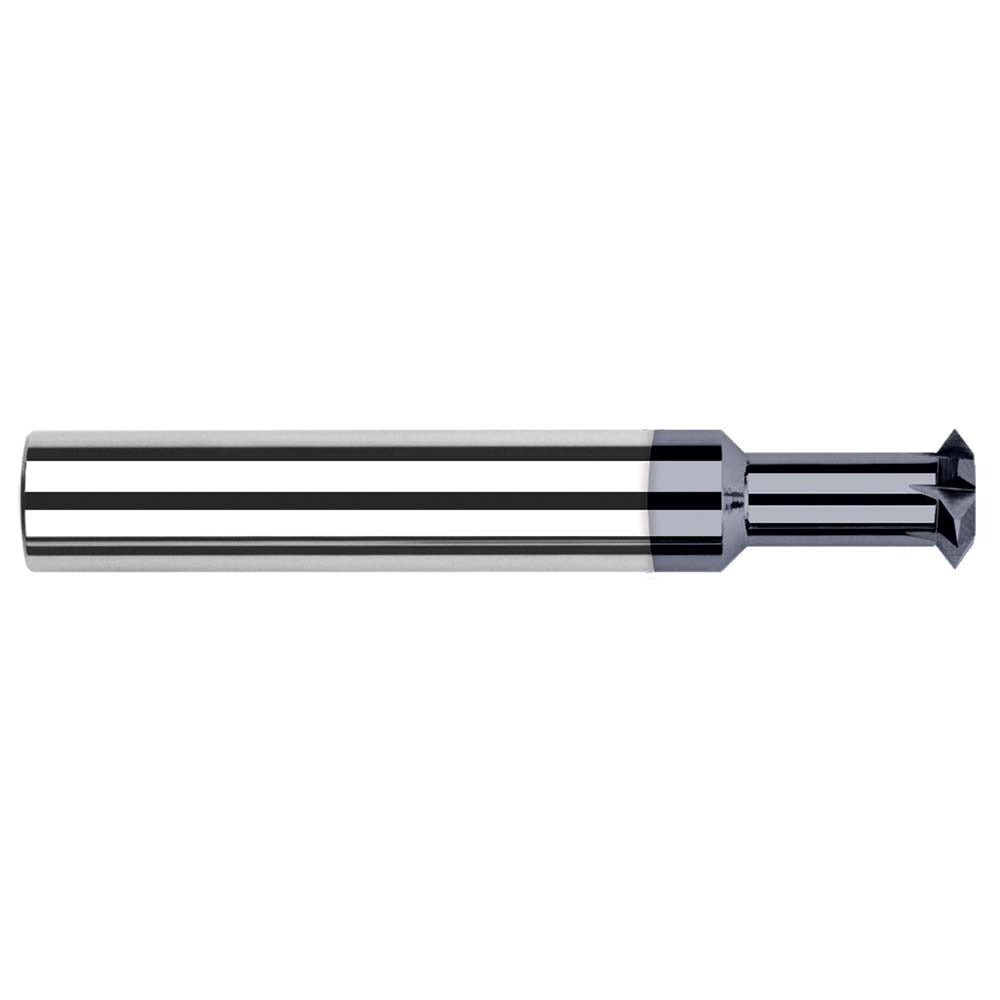

Harvey Tool 910732-C3 Double Angle Milling Cutter

Product Description

The HARVEY TOOL 910732-C3 is a solid carbide double angle milling cutter designed for producing symmetrical V-grooves, chamfers, and dovetail features in metalworking applications. The cutter geometry features a 120-degree included angle with a 1/2-inch cutting diameter and a 0.326-inch cutting width. Six teeth provide a balance of chip clearance and surface finish. The AlTiN coating improves heat resistance and tool life when running at elevated speeds in ferrous and hardened materials. This cutter is used by machinists and tool-and-die professionals working on CNC milling centers and manual mills.

This double angle cutter is suited for milling operations that require precise angular profiles in steel, stainless, cast iron, and similar materials. Typical applications include V-groove milling, chamfering, and thread relief cuts on production and prototype parts. The 1/2-inch shank diameter fits standard ER collets and end mill holders. The 5/16-inch neck diameter and 1-inch neck length provide clearance for accessing recessed features without interference. Overall length is 3 inches, making it compatible with standard toolholding setups on both vertical and horizontal milling machines.

Key Features

• 120-degree included angle for symmetrical V-groove and chamfer profiles
• Solid carbide construction for rigidity and dimensional stability
• AlTiN coating for extended tool life in ferrous and hardened workpiece materials
• Six-flute design balances chip evacuation with surface finish quality
• 5/16-inch neck diameter with 1-inch neck length for clearance in recessed cuts
• 1/2-inch shank diameter fits standard collet and end mill holder tooling

Compatibility

Designed for use in standard 1/2-inch ER collet chucks and end mill holders on CNC and manual milling machines capable of accepting shank-type rotary cutting tools.

Installation Notes

Installation and use of this cutter should be performed by a qualified machinist familiar with milling operations and cutting tool safety. Ensure the spindle is fully stopped and the machine is locked out before inserting or removing the cutter from its holder. Verify holder runout and clamping torque meet the toolholder manufacturer specifications before starting a cut. Cutting parameters including speed and feed should be selected based on workpiece material, machine rigidity, and depth of cut.
