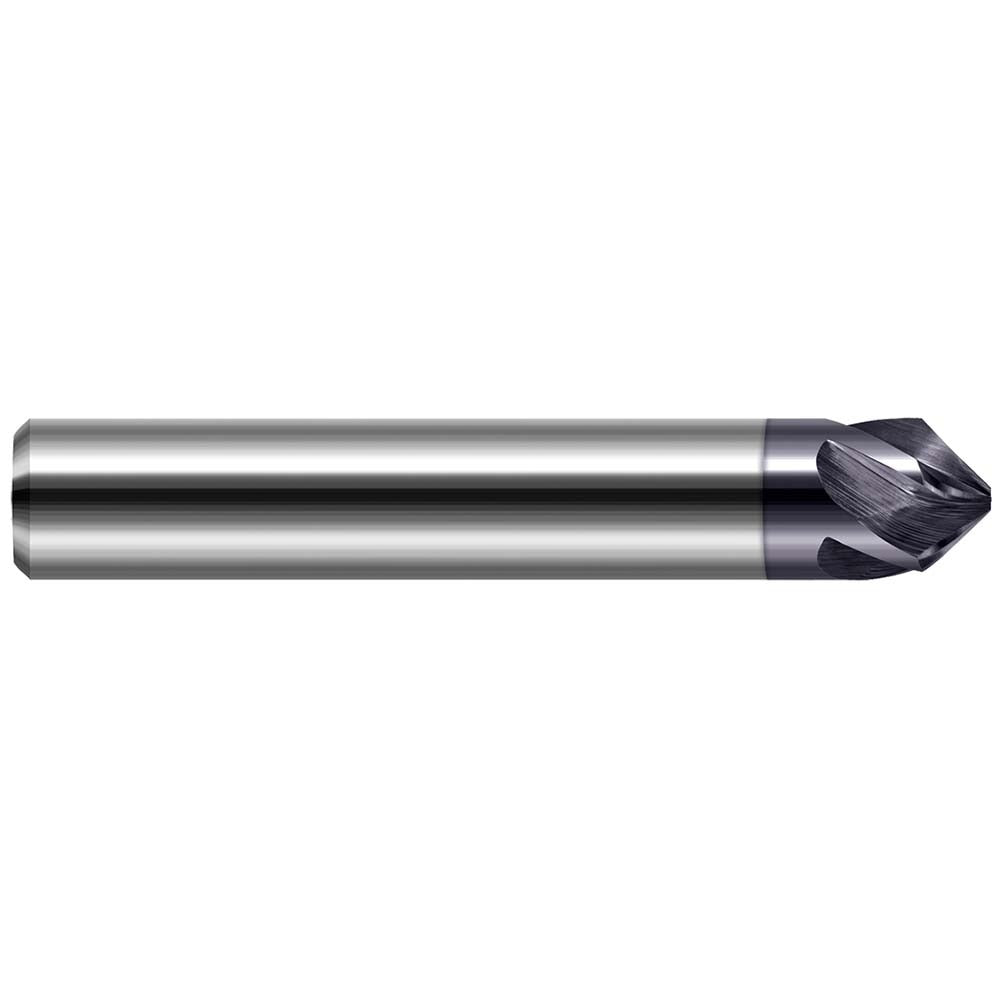

Harvey Tool 908448-C3 Chamfer Mill 3/4 in 5 Flute Altin

Product Description

The HARVEY TOOL 908448-C3 is a solid carbide chamfer mill engineered for precision chamfering, deburring, and edge-breaking operations on CNC machining centers and manual mills. This single-end tool features a 3/4 inch cutter head diameter, five flutes for efficient chip evacuation, and a 90-degree included angle suited for standard chamfer profiles. The AlTiN coating improves surface hardness and heat resistance, extending tool life in ferrous and hardened materials. With a 3/4 inch shank diameter and 3 inches overall length, the 908448-C3 is a rigid, well-balanced option for production environments where consistent edge quality matters.

This chamfer mill is appropriate for use in job shops, tool rooms, and production facilities running ferrous alloys, stainless steel, titanium, and hardened steels. The AlTiN coating makes it particularly well-suited for dry or minimal-lubrication cutting in high-temperature applications. It is installed and operated by machinists and CNC programmers working with milling machines equipped with standard tool holders accepting a 3/4 inch shank. The 0.3250 inch length of cut provides a defined engagement zone for controlled chamfer depth and repeatable results.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding materials
• AlTiN coating enhances heat resistance and extends tool life in ferrous and hardened workpieces
• Five-flute geometry promotes efficient chip removal and smooth surface finish
• 90-degree included angle for standard chamfering and deburring profiles
• Single-end design with 0.3250 inch length of cut for controlled edge engagement
• Right-hand cutting direction compatible with conventional milling setups

Compatibility

Designed for use in milling machines and CNC machining centers equipped with tool holders accepting a 3/4 inch straight shank.

Installation Notes

Installation is performed by a qualified machinist or CNC operator. Secure the 3/4 inch shank in a collet chuck or end mill holder rated for the shank diameter, and verify tool runout before operation. Ensure the spindle is fully stopped and the machine is in a safe state before tool changes. Follow the machine manufacturer and cutting tool manufacturer guidelines for speeds and feeds appropriate to the workpiece material and coating type.
