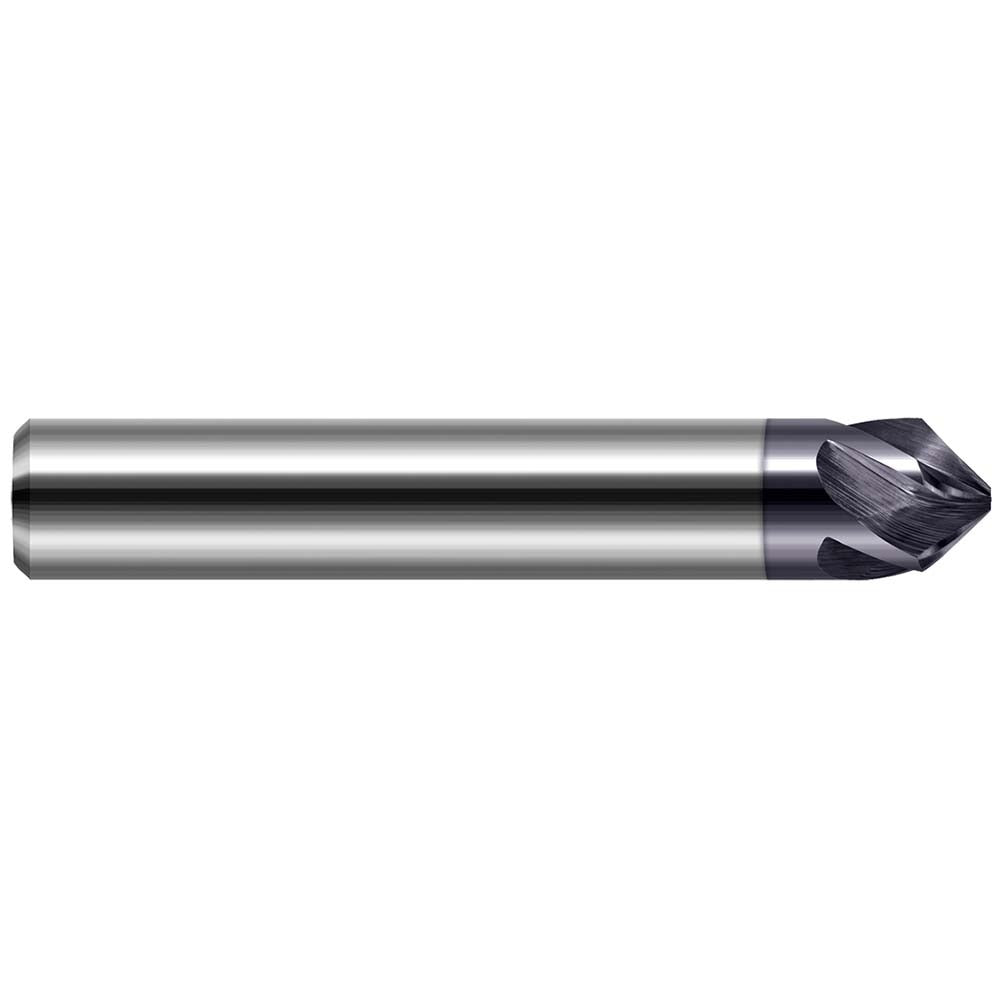

Harvey Tool 908440-C3 Chamfer Mill 5/8 in 5 Flute Carbide

Product Description

The HARVEY TOOL 908440-C3 is a solid carbide chamfer mill designed for precise chamfering, deburring, and countersinking operations on a wide range of materials. Built with 5 flutes and a 90-degree included angle, this single-end tool delivers clean, consistent edge breaks in ferrous and non-ferrous metals. The AlTiN coating improves heat resistance and extends tool life in demanding cutting environments. With a 5/8 inch cutter head diameter, 5/8 inch shank diameter, and 3 inch overall length, the 908440-C3 fits standard toolholders and machining centers used by professional machinists in production and job shop settings.

This chamfer mill is suited for use on CNC machining centers and manual mills where edge preparation is required on metal workpieces. The right-hand cutting direction and multi-flute geometry make it effective for chamfering drilled holes, deburring part edges, and creating lead-ins on threaded features. The AlTiN coating supports dry or minimal-lubrication cutting strategies, making it a practical choice for shops running high-speed or high-temperature operations on hardened steels, stainless, and similar alloys.

Key Features

• 90-degree included angle for standard chamfering and countersinking applications
• 5-flute geometry for improved chip evacuation and surface finish
• AlTiN coating provides elevated heat resistance and extended tool life
• Solid carbide construction delivers rigidity and dimensional stability
• Right-hand cutting direction compatible with standard CNC spindle rotation
• Matched shank and cutter diameter at 5/8 inch for straightforward toolholder setup

Compatibility

Designed as an OEM-style solid carbide chamfer mill for use in standard 5/8 inch toolholders on CNC machining centers and manual mills performing edge preparation and chamfering operations.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Ensure the spindle is fully stopped and the machine is powered down before mounting or removing the tool from the toolholder. Verify proper tool projection and runout with a dial indicator before initiating a cut. Follow the toolholder manufacturer torque guidelines and applicable machine safety standards when securing the tool.
