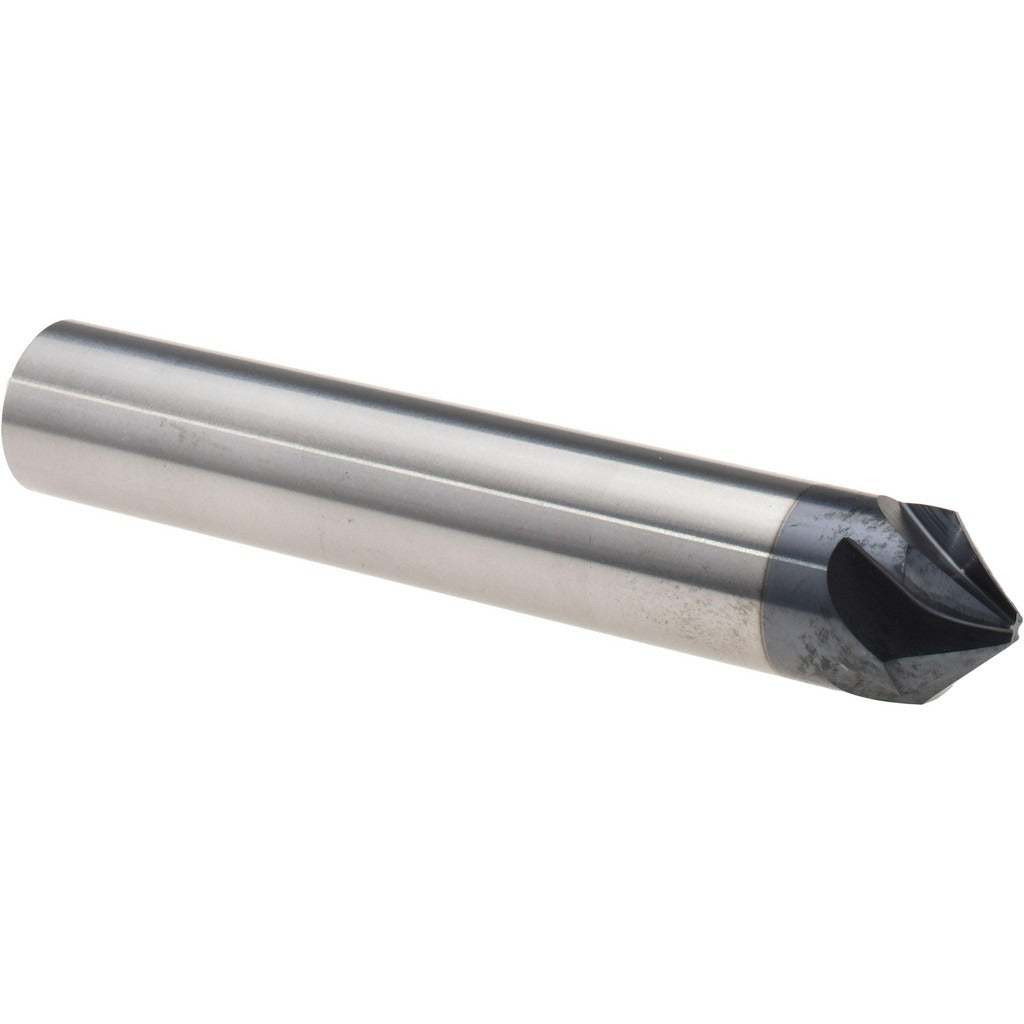

Harvey Tool 908432-C3 Chamfer Mill 1/2 in 5 Flute Carbide

Product Description

The HARVEY TOOL 908432-C3 is a solid carbide chamfer mill designed for precision chamfering, deburring, and edge-breaking operations on ferrous and non-ferrous materials. Built with five flutes and a 90-degree included angle, it delivers clean, consistent chamfer geometry at production feed rates. The AlTiN coating improves heat resistance and tool life in demanding cutting conditions. With a 1/2 inch cutter head diameter and 1/2 inch shank, this tool fits standard end mill holders and collet chucks found on CNC machining centers and manual knee mills. Machinists and toolroom professionals install this type of cutter for chamfering drilled holes, prepping weld joints, and breaking sharp edges on machined parts.

This chamfer mill suits general metalworking applications in job shops, production machining environments, and tool and die operations. The single-end geometry and right-hand cutting direction are standard for conventional and climb milling on vertical machining centers. The 3 inch overall length provides sufficient clearance for most fixture setups without compromising rigidity. It is appropriate for use on steel, stainless steel, aluminum, and similar materials where AlTiN coating performance is well suited.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard materials
• AlTiN coating extends tool life under high-heat cutting conditions
• Five-flute design supports higher feed rates and improved surface finish
• 90-degree included angle for standard chamfer and deburring work
• Right-hand cutting direction compatible with conventional CNC spindle rotation
• 1/2 inch shank fits standard ER collets and end mill holders

Compatibility

Designed as an OEM-style replacement or direct-use chamfer mill compatible with standard 1/2 inch collet chucks and end mill holders on CNC machining centers and manual milling machines.

Installation Notes

Installation is performed by qualified machinists or toolroom personnel. Secure the shank fully in a clean, undamaged collet or end mill holder and torque the retention mechanism per the toolholder manufacturer specification. Inspect the spindle taper and collet bore for chips or contamination before seating the tool. Never exceed the recommended depth of cut or axial engagement for the cutter diameter, and confirm spindle direction is set to right-hand rotation before starting the cut.
