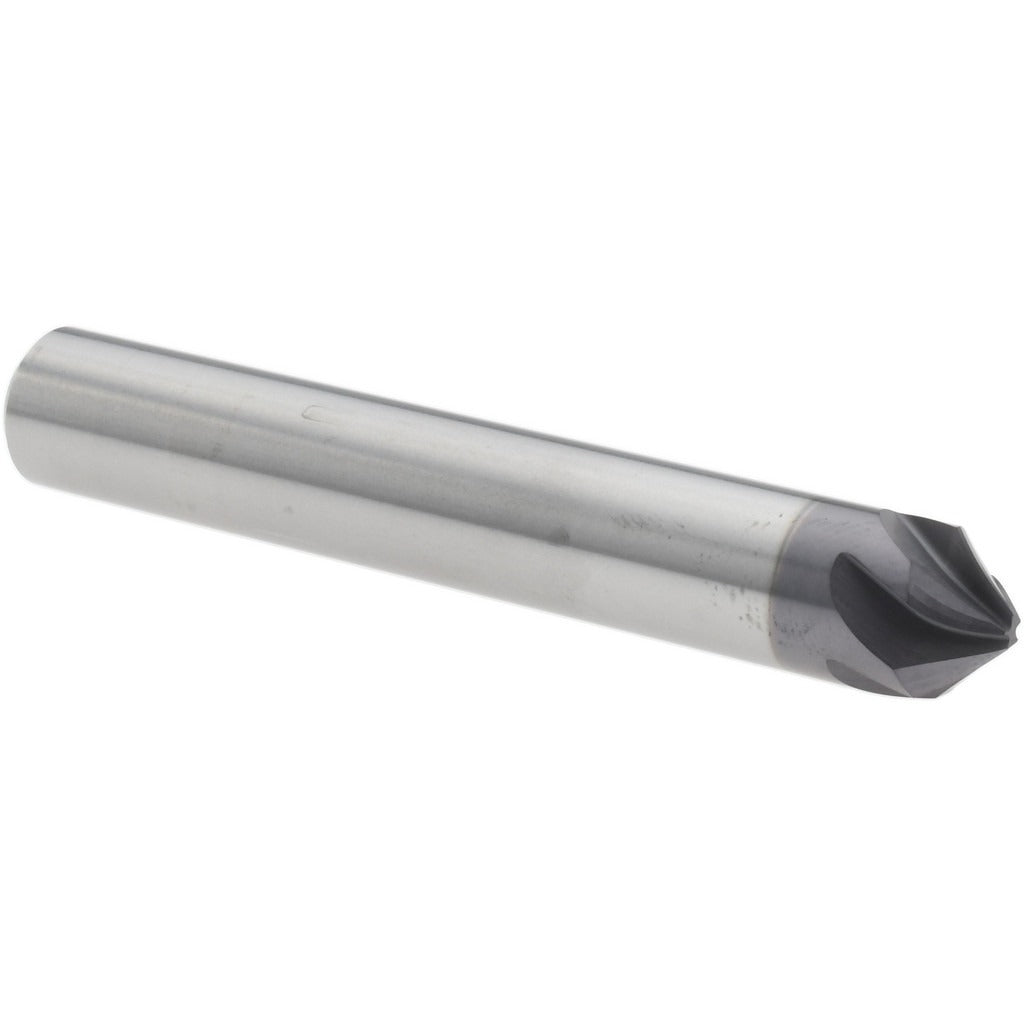

Harvey Tool 908424-C3 Chamfer Mill 3/8 in 5 Flute Carbide

Product Description

The HARVEY TOOL 908424-C3 is a solid carbide chamfer mill designed for precision chamfering and deburring operations in metalworking and machining environments. With a 3/8-inch cutter head diameter and 5-flute geometry, this single-end mill delivers clean, consistent 90-degree chamfers at high feed rates with reduced chatter. The AlTiN coating provides elevated heat resistance and extended tool life in hard and abrasive workpiece materials. This tool is installed and used by machinists and CNC operators working in production and job-shop settings.

This chamfer mill is suited for use on CNC machining centers and manual mills in both light and moderate production environments. Its right-hand cutting direction and 3/8-inch shank diameter make it compatible with standard end mill holders and collet chucks. The 2.5-inch overall length provides adequate reach for most chamfering applications on ferrous and non-ferrous metals, including hardened steels and stainless alloys where AlTiN coating performance is most beneficial.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding cuts
• 5-flute design increases feed rate capability and surface finish quality
• AlTiN coating enhances heat resistance and extends tool life in hard metals
• 90-degree included angle for standard chamfer and deburring operations
• Right-hand cutting direction compatible with standard CNC spindle rotation
• 3/8-inch shank fits common end mill holders and collet chucks

Compatibility

Designed for use with standard 3/8-inch end mill holders and collet chucks on CNC machining centers and manual milling machines. No specific OEM model compatibility was provided in the product data.

Installation Notes

This tool is installed by machinists and CNC operators using standard toolholding equipment. Ensure the spindle is fully stopped and the machine is in a safe state before mounting or removing the cutter. Seat the shank fully in the collet or holder and torque the retention hardware to the toolholder manufacturer's specification. Verify runout with a dial indicator before beginning a production run to protect both the tool and the workpiece.
